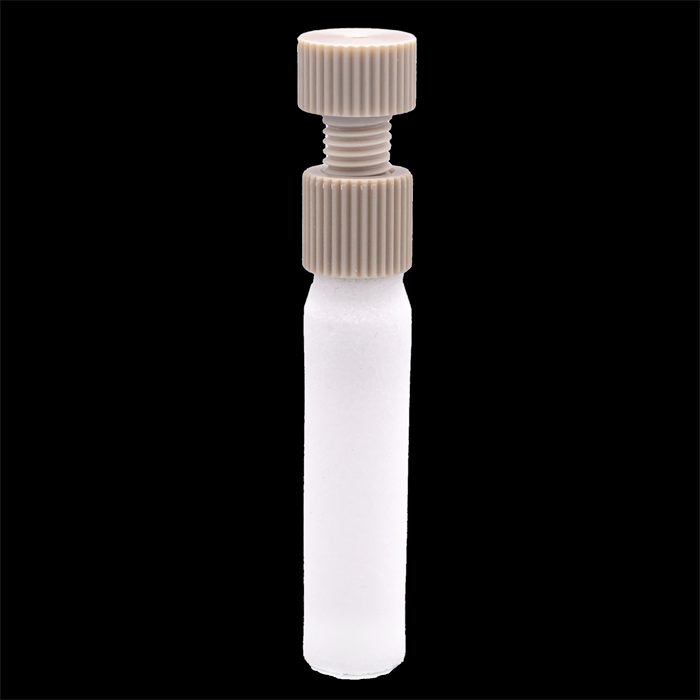

CUSTOM ITEM: Mobile Phase Filter, 20 um, white, polyethylene, 1/16 inch connector. EPP-Porous Products brand. Bulk Price.
Additional Info:
The 58847-01 EPP‑Porous Products Mobile Phase Filter is a polyethylene solvent pickup filter for HPLC reservoirs, offering high particle capacity, low resistance flow, and reliable system protection.
Its 20 µm porosity removes large undissolved particles, protecting pumps, columns, and instruments. The white filter body allows quick visual inspection of contamination, while low flow resistance ensures efficient solvent delivery compared to finer filters.
Designed for 1/16 inch (1.6 mm) tubing, it includes PEEK-compatible connection components for secure operation. The soft, replaceable filter element supports ongoing reuse and easy maintenance.
Key Features
High‑Capacity 20 µm Filtration
Removes large particulates to protect pumps and columns
Low Flow Resistance
Less restriction than 2 µm or 10 µm filters
Supports efficient solvent uptake
Visual Inspection (White Filter)
Easily see trapped particles
Simplifies maintenance decisions
Biocompatible Polyethylene Construction
Chemically compatible with common solvents
Durable and reliable
Standard 1/16 Inch Connectivity
Fits 1/16 inch (1.6 mm) tubing systems
Includes PEEK connector components
Reusable & Replaceable Design
Soft filter element is easy to remove and replace
Supports continuous operation
Simple Installation
Insert tubing and hand tighten
Place in reservoir bottle → connect to pump inlet
Optional use for low‑pressure gas sparging (He or N₂)
Specifications
Type: Mobile Phase Inlet / Solvent Pickup Filter
Material: Polyethylene
Pore Size: 20 µm
Connection Size: 1/16 inch (1.6 mm)
Color: White
Compatibility: HPLC reservoirs and pump inlet systems
Included Components: ETFE ferrule, low‑pressure male nut connector
Brand: EPP‑Porous Products
Available Options
Economical Pack of 5 Polyethylene Mobile Phase Inlet Filters, 20 µm, 1/16 Inch Connection
Replacement Elements for Polyethylene Mobile Phase Inlet Filters, 20 µm (PEEK Connector Compatible)
Typical Applications
HPLC solvent filtration, mobile phase preparation, pump protection, fluid handling, and high‑capacity inlet filtration workflows
