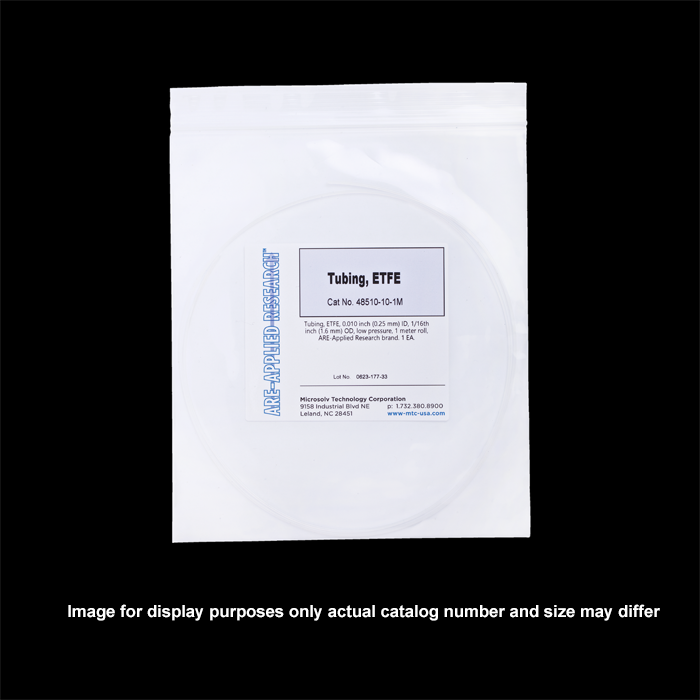

Tubing, ETFE, 0.010 inch (0.25 mm) ID, 1/16th inch (1.6 mm) OD, low pressure, 5 meter roll, ARE-Applied Research brand. 1 EA.
Additional Information:
ARE-Applied Research ETFE (Ethylene Tetrafluoroethylene), commonly known by the trade name Tefzel™, tubing is manufactured from virgin ETFE resin without the use of processing additives. ETFE tubing is widely used in low-pressure laboratory fluid handling applications due to its excellent chemical resistance, low permeability, and mechanical durability.

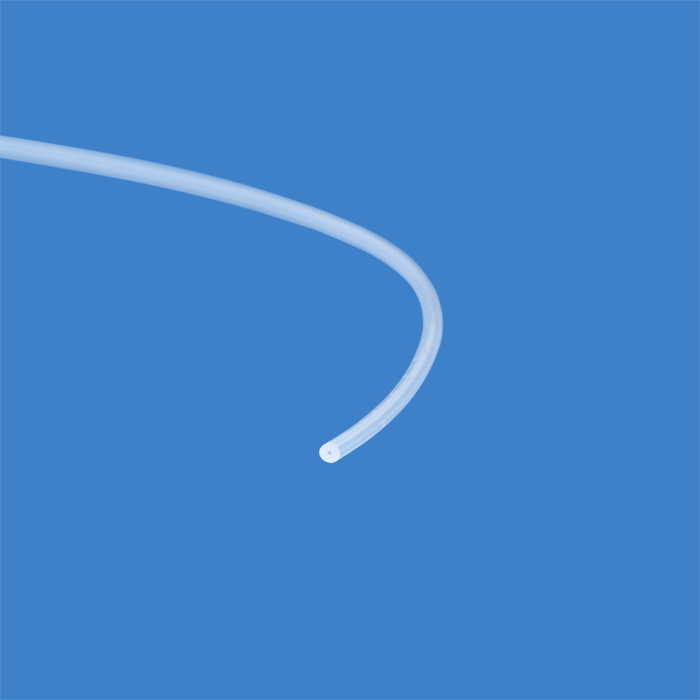

48510-10 is supplied as a convenient 5-meter roll of natural translucent ETFE tubing with a 0.010 inch (0.25 mm) internal diameter and 1/16 inch (1.6 mm) outer diameter. The small internal diameter helps minimize dead volume, making it well suited for low-flow analytical applications while the thicker wall construction provides excellent durability and a higher pressure rating.
Compared to PTFE tubing, ETFE offers lower gas permeability while maintaining excellent chemical compatibility with most laboratory solvents and reagents. ETFE is chemically inert except when used with certain halogenated compounds.
The translucent tubing wall allows visual monitoring of fluid movement while providing excellent dimensional stability and long service life.
Key Benefits
Manufactured from virgin ETFE resin without additives
Low permeability compared to PTFE tubing
Excellent chemical resistance
Small internal diameter helps minimize dead volume
Thick wall construction provides enhanced durability
High pressure rating for demanding laboratory applications
Natural translucent tubing allows fluid visibility
Suitable for HPLC mobile phase delivery and waste systems
Typical Applications
HPLC mobile phase delivery
HPLC solvent waste systems
Laboratory fluid transfer
Analytical instrumentation
Low-flow fluid delivery
Reagent transfer systems
Sample transport lines
General laboratory fluid handling
Specifications
Product Type: ETFE Tubing
Material: ETFE (Tefzel™)
Internal Diameter: 0.010 in. (0.25 mm)
Outer Diameter: 1/16 in. (1.6 mm)
Wall Thickness: 0.675 mm
Color: Natural, Translucent
Length: 5 Meters
Pressure Rating: 2675 psi (184.4 bar)
Dimensional Tolerance: ±0.10 mm
Brand: ARE-Applied Research
Additional Lengths
Custom Length Information
Custom cuts are available for applications requiring specific tubing lengths.
Important Notes
Low-pressure tubing application
Manufactured from virgin ETFE resin
Lower permeability than PTFE tubing
Suitable before and after HPLC pumps
Natural translucent tubing allows fluid visibility
Pressure rated to 2675 psi (184.4 bar)
Excellent chemical resistance
Not recommended for certain halogenated compounds
