Catalog Number - 95296-1mL-1PP

Streamline high‑throughput sample handling while eliminating adsorption losses with the U‑2D Micro‑Sample Management System™ featuring RSA‑Pro X™ surface technology.

95296-1mL-1PP systems include 96 precision point glass inserts treated with RSA‑Pro X™, creating a highly hydrophobic, non‑adsorbing surface that prevents interaction between analytes and borosilicate glass. This treatment is exceptionally stable—even in aqueous conditions—offering long‑term performance far superior to traditional silanized surfaces, which degrade quickly in the presence of water.

Designed for efficiency and control, the system is pre‑racked for easy filling with single or multi‑channel pipettors, improved visualization, and thermal management. The removable rack and reusable base integrate into workflows compatible with ANSI standard 96‑well plate autosamplers. The included silicone sealing mat provides a secure seal for storage and transport when working with aqueous samples.

Key Benefits

• RSA‑Pro X™ surface prevents adsorption of sensitive analytes

• Stable hydrophobic treatment for long‑term use in aqueous conditions

• 96‑well format enables high‑throughput sample handling

• Pre‑racked system improves pipetting efficiency and organization

• Precision conical inserts minimize bubbles and improve filling

• Compatible with standard autosamplers using 96‑well plate format

• Reusable base and secure sealing mat improve workflow control

Typical Applications

• LC‑MS and LC‑MS/MS high‑throughput workflows

• Proteins, peptides, and enzymes

• Natural products and unknown compounds

• Sample preparation and screening applications

• Trace‑level and adsorption‑sensitive analyses

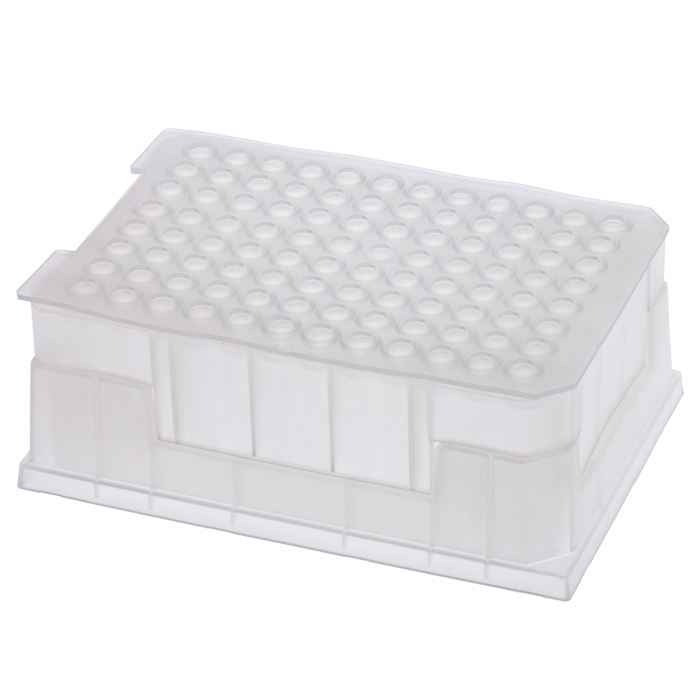

System Components

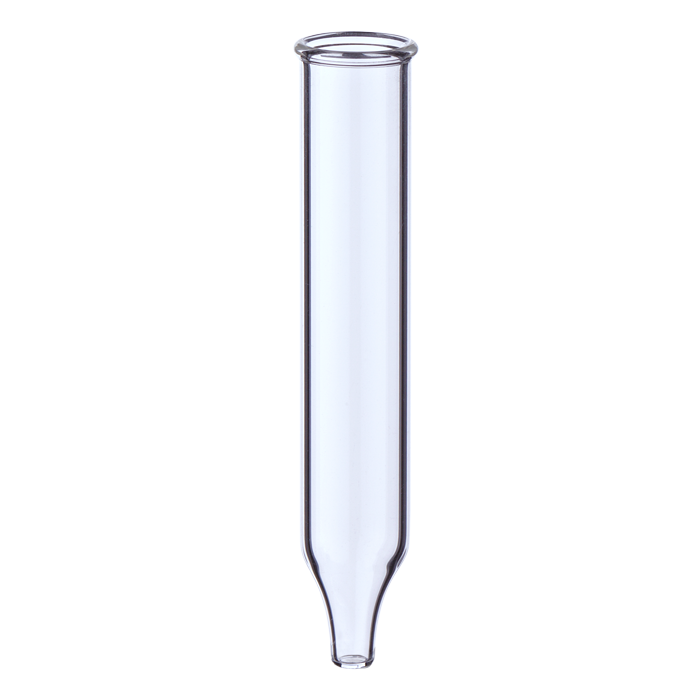

• 96 × 1 mL RSA‑Pro X™ Precision Point Glass Inserts

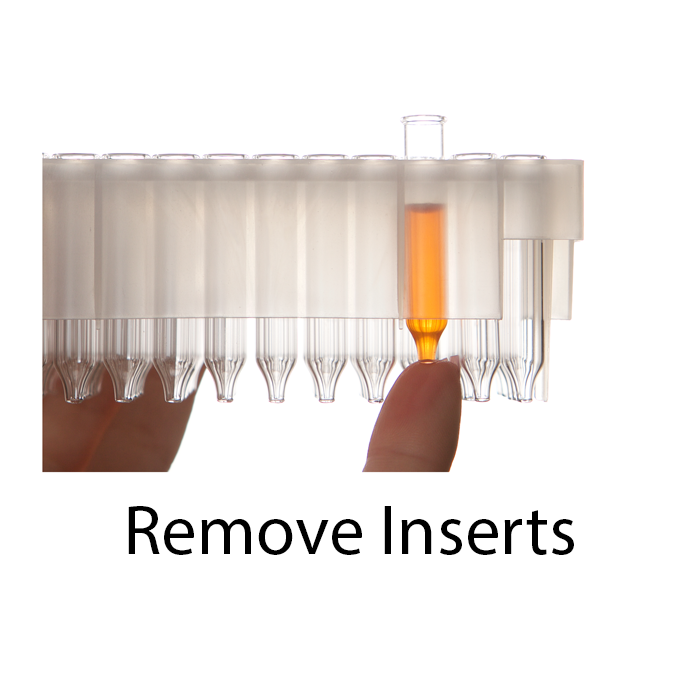

• 1 × Removable Rack

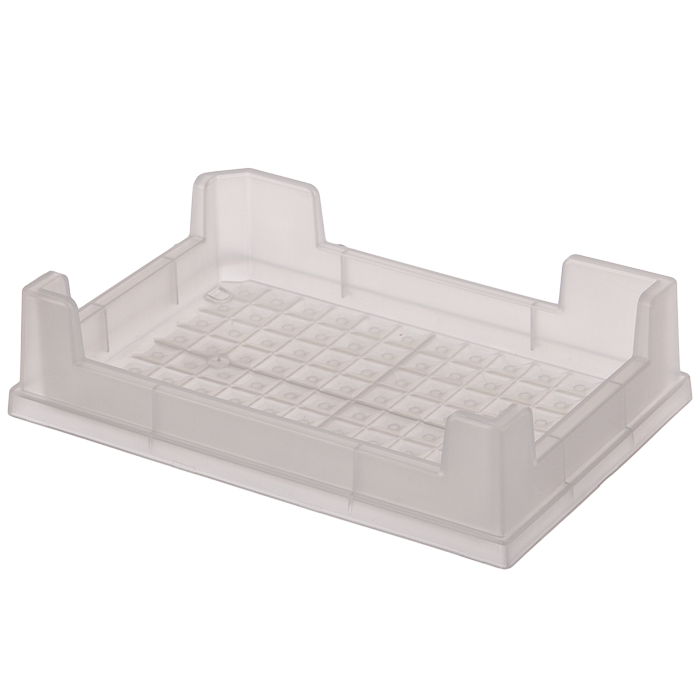

• 1 × Reusable Base

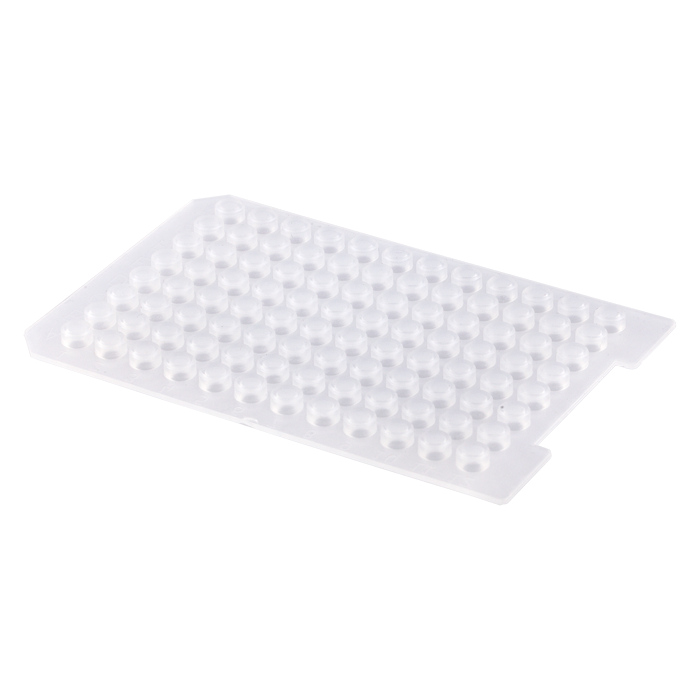

• 1 × Silicone Rubber Sealing Mat

Compatibility

• ANSI standard 96‑well plate autosampler formats

• Compatible with most LC‑MS and HPLC autosampler systems supporting plate handling

• Suitable for manual or automated pipetting workflows

Performance and Design Notes

• Wide conical tip improves filling speed and reduces bubble formation

• Insert dimensions: 7.72 mm × 44.85 mm

• Hydrophobic treatment minimizes sample loss

• Designed for efficient sample tracking and handling

Important Notes

• Designed for adsorption‑prone and high‑value samples

• Silicone mat intended for aqueous applications

• Chemical‑resistant sealing mat options are available separately

• Part of the U‑2D sample management system platform

Additional Resources

• View RSA‑Pro X™ Surface Technology Overview for Adsorption‑Sensitive Applications

• View Chemical‑Resistant Sealing Mat Option for Organic Solvent Compatibility

  ---
