Direct Adaptive HPLC Column Connector, single end fitting with 0.005" ID x 1/16th" OD, 300 mm long stainless steel tubing. MICROSOLV Brand. 1 EA.
Additional Info:
The 49905‑30‑SD Direct Adaptive (Di‑Ad™) HPLC Column Connector is designed to provide a reliable, low dead volume connection between HPLC system components and analytical columns without requiring repeated ferrule adjustments when changing column brands.

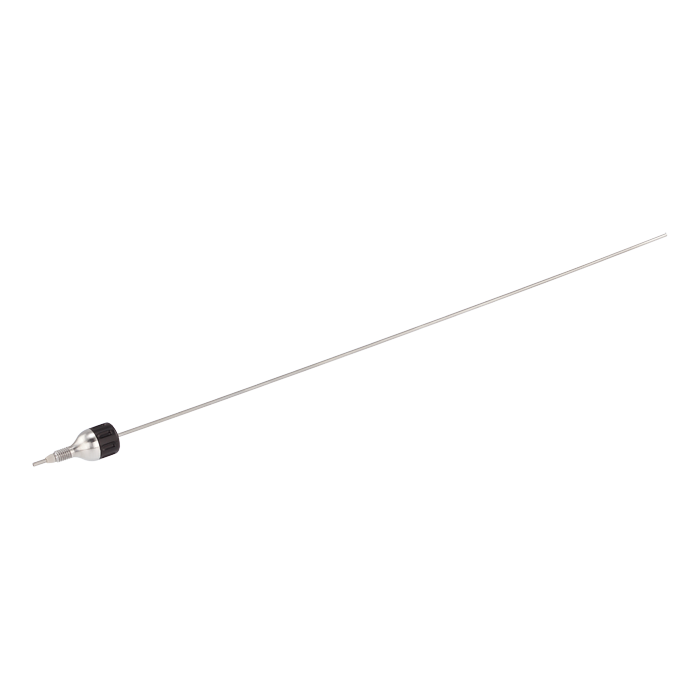

This single‑end fitting assembly includes precision laser‑cut 0.005" (127 µm) ID stainless steel tubing with a 1/16" OD and 300 mm (11.81") length for optimized chromatographic performance and reduced extra‑column dispersion.

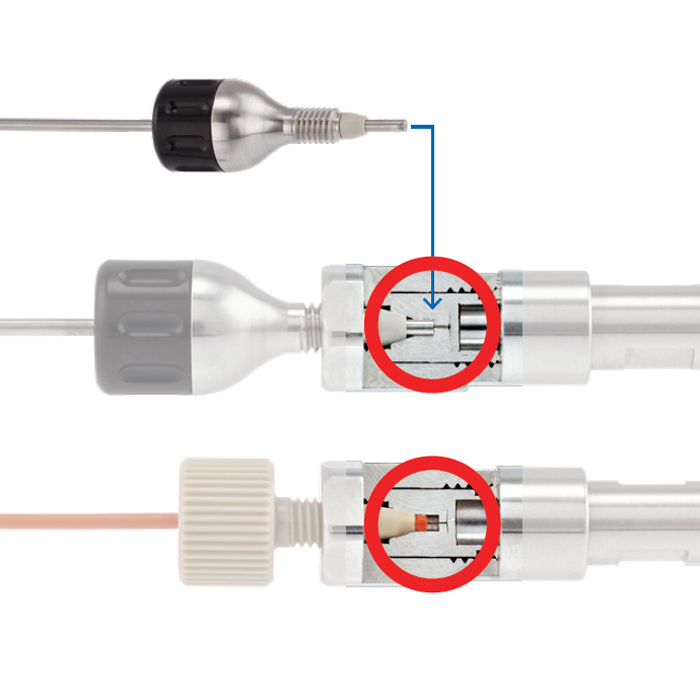

The spring‑loaded Di‑Ad™ fitting automatically adjusts tubing pilot length during installation, helping ensure a tight seal with minimal void volume across different HPLC column inlet and outlet geometries. This self‑adjusting design reduces the need to manually reposition ferrules or re‑swage tubing during column replacement procedures.
These connectors are commonly installed between the injector and column inlet as well as between the detector and column outlet to help minimize system volume induced band broadening and maintain chromatographic efficiency.
The 49905‑30‑SD connector is especially useful in laboratories that routinely switch between different HPLC column brands while requiring consistent low dispersion performance and simplified operation.
Key Benefits
Direct Adaptive (Di‑Ad™) self‑adjusting fitting design
Zero dead volume style column connection
Minimizes extra‑column band broadening
Compatible with virtually any HPLC column brand
Precision laser‑cut tubing ends
Simplifies routine column changes
Reduces need for repeated ferrule adjustments
Suitable for analytical HPLC applications
Chemically resistant stainless steel construction
High‑pressure performance up to 10,000 psi
Specifications
Product Type: Direct Adaptive HPLC column connector
Brand: MICROSOLV
Tubing Material: Stainless steel
Tubing ID: 0.005" (127 µm)
Tubing OD: 1/16"
Tubing Length: 300 mm (11.81")
Connection Type: Single‑end self‑adapting fitting
Pressure Rating: 10,000 psi
Pack Size: 1 each
Applications
Analytical HPLC systems
Low dead volume fluidic connections
Injector‑to‑column connections
Column‑to‑detector connections
Multi‑brand column compatibility
High‑efficiency chromatographic separations
Usage Notes
Designed for analytical HPLC applications
Helps reduce extra‑column dispersion effects
Spring‑loaded fitting automatically adjusts pilot length
Ideal for laboratories using multiple column brands
Stainless steel nuts and ferrules sold separately
Compatible with standard 1/16" HPLC tubing systems
