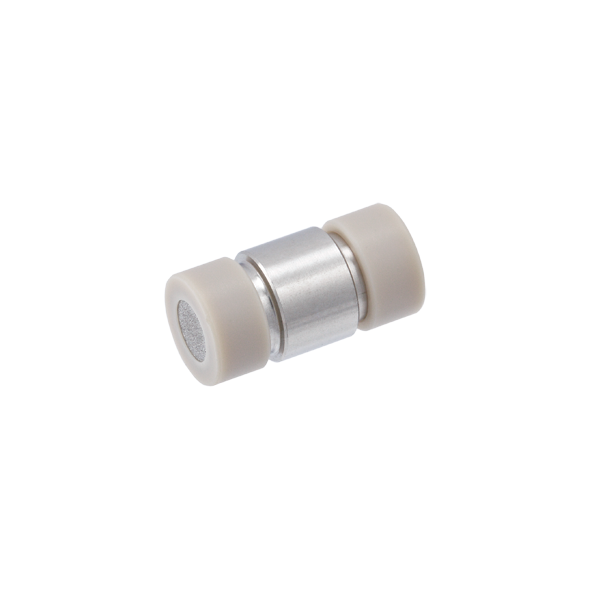

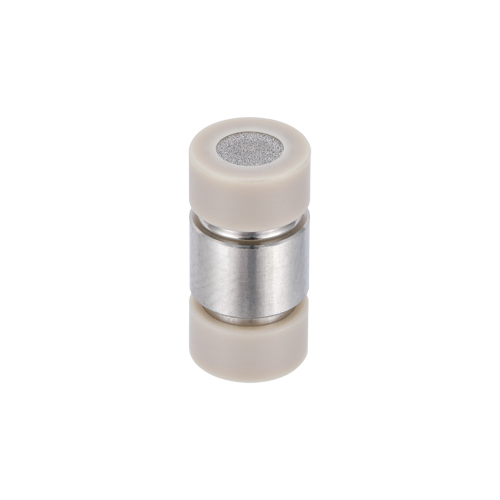

Guard Column Cartridges, NP Silica Wide Pore, 3um, 300A. 2.1mm ID x 10mm Length. Cogent Brand. 5/PK.
Additional Information:
Cogent NP Silica™ Wide Pore Guard Column Cartridges are designed to protect valuable analytical HPLC columns from particulate contamination, strongly retained compounds, and sample matrix components that can reduce column performance and shorten column life. Packed with ultra-high purity, low metal content 300Å NP Silica™ stationary phase that is not chemically modified, these guard cartridges provide the same selectivity characteristics as the analytical column while acting as a sacrificial protection device.
82361-PG1-3 Guard Column Cartridges are packed with 3 µm NP Silica™ Wide Pore media in a 2.1 mm ID x 10 mm format specifically designed for use with 2.1 mm ID analytical columns. The 300Å wide pore structure provides improved accessibility for larger molecules while protecting the analytical column from contaminants and particulates that can irreversibly adsorb to the stationary phase. Routine use helps maintain column efficiency, reproducibility, and retention characteristics while reducing replacement costs.
NP Silica™ Wide Pore guard cartridges are commonly used with HILIC and Normal Phase chromatography methods involving proteins, peptides, biomolecules, and other large hydrophilic or polar compounds. The matching stationary phase chemistry minimizes changes in chromatographic selectivity while extending analytical column lifetime. For proper installation and operation, these cartridges must be used with a compatible Cogent Guard Column Holder.
Key Benefits
NP Silica™ Wide Pore stationary phase
USP L3 equivalent chemistry
Ultra-high purity silica
Low metal content silica
Unmodified silica surface
300Å wide pore design
3 µm particle size
Protects analytical columns from contamination
Extends analytical column life
Compatible with 2.1 mm ID columns
Typical Applications
HILIC chromatography
Normal Phase HPLC
USP L3 methods
Protein analysis
Peptide analysis
Biomolecule separations
Large molecule analysis
Column protection
Method development
Pharmaceutical and biotechnology analyses
Specifications
Product Type: Guard Column Cartridges
Stationary Phase: NP Silica™ Wide Pore
USP Classification: L3
Particle Size: 3 µm
Pore Size: 300Å
Cartridge Dimensions: 2.1 mm ID x 10 mm
Quantity: 5 Cartridges per Pack
Cartridge Housing: Stainless Steel
Frit Material: Stainless Steel Frits with PEEK Frit Caps
Brand: Cogent
Required Guard Column Holder
A Cogent Guard Column Holder (Catalog Number 83200-GH) is required for use with these guard column cartridges.
Important Notes
Designed for 2.1 mm ID NP Silica™ Wide Pore analytical columns
Suitable for HILIC and Normal Phase chromatography
USP L3 equivalent chemistry
Unmodified silica stationary phase
Low metal content, high-purity silica
Wide pore 300Å silica provides improved accessibility for larger molecules
Protects analytical columns from particulates and strongly retained contaminants
Helps extend analytical column lifetime
Maintains method reproducibility and chromatographic performance
Must be used with a Cogent Guard Column Holder (83200-GH)
Supplied as a pack of 5 cartridges
