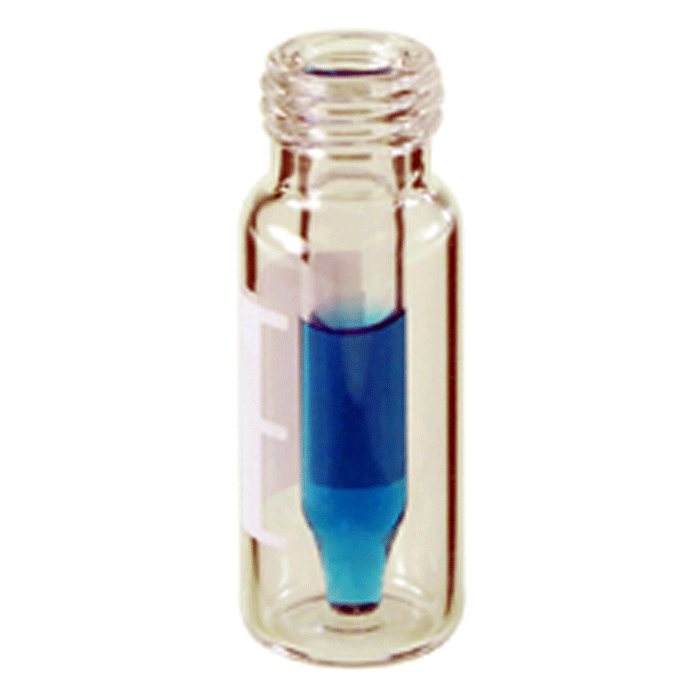

Vials, Screw Top, Glass. Clear / Clear Insert, 300ul with Write-On Patch and fill lines, Wide Tip Fused Insert™, 9-425mm threads, 12x32mm outer dimensions. For use as an autosampler vial. AQ Brand. 100/PK.
Additional Info:
The 9532S‑WCV‑WT AQ™ Wide‑Tip Fused Insert Autosampler Vial is a reliable, low‑volume vial designed for laboratories requiring consistent recovery, ease of filling, and excellent autosampler compatibility. Both the vial and the Wide‑Tip Fused Insert™ are manufactured from first hydrolytic, Class A, Type‑33 clear borosilicate glass, providing dependable chemical performance and optical clarity.
The 300 µL fused insert is permanently integrated into the vial, eliminating variability associated with removable inserts. The wide‑tip insert geometry at the bottom helps reduce bubble formation during rapid or automated filling, supporting consistent sample preparation in high‑throughput environments.
With a typical residual volume as low as ~4 µL for many autosamplers and needle configurations, this vial delivers excellent recovery while maintaining standard screw‑top compatibility.
Key Features
Type‑33 Borosilicate Glass Construction
First hydrolytic, Class A Type‑33 glass
Excellent chemical durability and clarity
Suitable for routine and regulated analytical workflows
Wide‑Tip Fused Insert™ Design
Permanently fused insert for dimensional stability
Wide‑tip bottom geometry minimizes bubble formation
Improves fill consistency for manual and automated filling
Nominal volume: 300 µL
Typical residual volume: ~4 µL (autosampler dependent)
Precision‑Controlled Autosampler Geometry
Insert bottom depth, vial height, and alignment are tightly designed and QC controlled
Maximizes sample recovery
Enhances autosampler needle safety
Compatible with demanding and high‑throughput autosampler platforms
Ceramic Write‑On Patch and Fill Lines
Permanently fired ceramic labeling surface
Resists smearing and scratching when exposed to solvents
Fill lines support consistent sample preparation
Why Choose a Wide‑Tip Fused Insert Vial?
Wide‑Tip Fused Insert™ vials are favored when laboratories need low‑volume accuracy without the complications of removable inserts. The wide‑tip geometry offers practical advantages:
Reduced bubble formation during fast filling
Improved consistency in automated workflows
Reliable low‑volume recovery for routine analysis
This configuration has become a preferred choice in many clinical testing laboratories, where reproducibility and workflow efficiency are critical.
Typical Applications
Clinical and diagnostic testing
LC‑MS and UHPLC autosampling
Low‑volume sample injections
High‑throughput analytical workflows
Routine regulated laboratory methods
