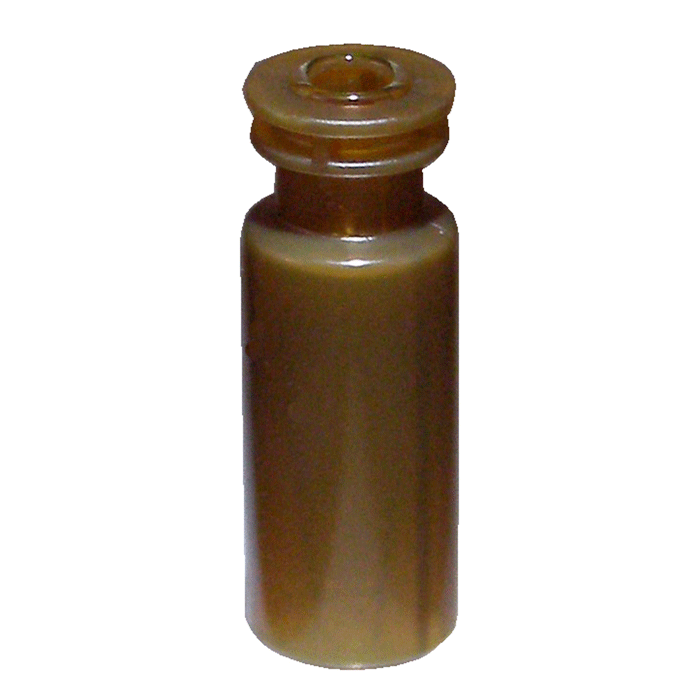

CUSTOM ITEM: Vials, Snap Top, Plastic. Amber / Clear Glass Insert, 200ul Fused Insert™. An 11mm snap-ring and 12x32mm outer dimensions. For use as an autosampler vial. MICROSOLV Brand. 100/PK.
Additional Info:
The 9532C‑TS‑A snap‑top autosampler vial is a 200 µL micro‑volume vial designed for chromatographic applications requiring light protection combined with direct glass sample contact. These narrow‑mouth vials are manufactured from amberized TPX® (polymethylpentene) plastic and incorporate an embedded, first hydrolytic, Type N51A pharmaceutical‑grade borosilicate glass insert with a conical bottom.
The glass insert is securely embedded within the plastic vial body and will not move during use. This construction prevents leakage from the bottom even if an autosampler needle contacts or crashes into the insert, providing improved robustness compared to loose‑insert designs.
Amberized plastic vials are commonly selected for light‑sensitive compounds and are considered low actinic, helping reduce sample degradation due to light exposure. Performance compares favorably with TopSert®, GlassPlastic™, and Glastic™‑style vial systems.
Key Features
Embedded Fused Insert™ Design
200 µL clear glass insert embedded in plastic vial
Insert remains fixed and does not shift during use
Conical insert bottom supports efficient sample recovery
Prevents bottom leakage even under needle‑crash conditions
Hybrid Amber Plastic / Glass Construction
Amberized TPX® polymethylpentene outer vial
First hydrolytic, Type N51A pharmaceutical‑grade borosilicate glass insert
Combines light protection with direct glass sample contact
Micro‑Volume Autosampler Geometry
Narrow‑mouth design for low sample volumes
Standard 12 × 32 mm vial dimensions
Compatible with common autosampler systems
Why Choose 200 µL Amber Fused Insert™ Snap‑Top Autosampler Vials?
The 9532C‑TS‑A is selected when laboratories need:
Micro‑volume autosampling with integrated light protection
Secure, non‑moving glass inserts
Prevention of leakage during needle contact events
Performance comparable to TopSert®, GlassPlastic™, and Glastic™ systems
Reliable recovery from limited sample volumes
These vials are commonly used in LC‑MS workflows, analytical development, and applications where both light sensitivity and insert stability are critical.
Typical Applications
HPLC, UHPLC, LC‑MS, and LC‑MS/MS autosampling
Low‑volume and limited‑sample analysis
Light‑sensitive compounds
Method development and validation
Quantitative chromatography using embedded inserts
Custom Order Information
This product is classified as a Custom Item. Custom items are manufactured to order and non‑returnable.
