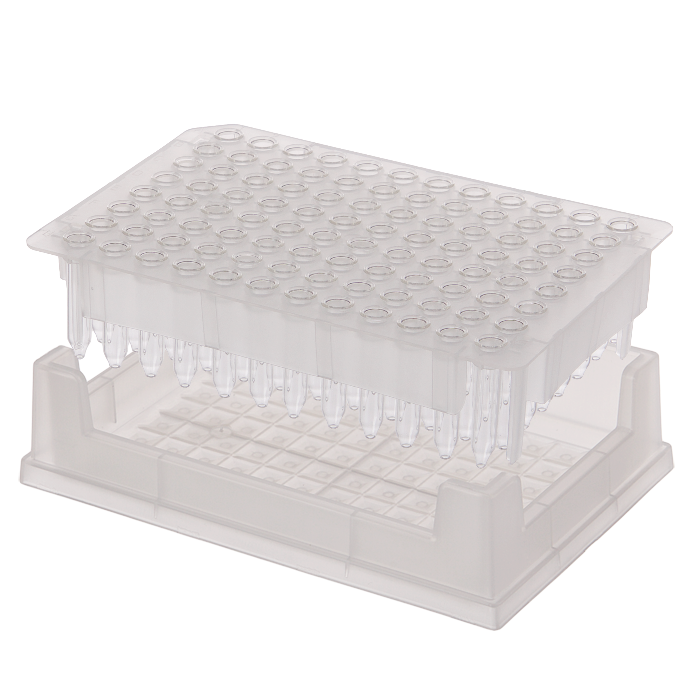

Inserts, in Racks with a Base. Includes 96, Clear, 350ul Glass Low Volume Precision Inserts with wide conical points. For use in the Micro-Sample Management System. U-2D Brand. 1 EA.
Additional Info:
Provide efficient micro‑sample handling and organization with precision inserts designed for use in the U‑2D™ Micro‑Sample Management System. Supplied pre‑loaded in a 96‑position rack with base, this configuration allows for immediate use in high‑throughput workflows while maintaining order and reducing handling variability. The rack format supports plate‑style sample preparation and improves laboratory efficiency when working with small volume samples.
95296-U2D inserts are manufactured from First Hydrolytic, Class A, Type 33 borosilicate glass, ensuring excellent chemical resistance, low extractables, and consistent performance for sensitive analytical applications. Each insert features a wide conical point, which promotes faster filling and helps minimize bubble formation during sample loading, improving accuracy and reproducibility in micro‑volume handling.
These inserts can be easily removed from the rack and transferred into standard 12 × 32 mm, 2 mL AQ™ autosampler vials for GC, HPLC, or LC‑MS analysis. This flexible design supports seamless transition from plate‑based preparation to vial‑based injection without unnecessary sample transfer steps, reducing sample loss and improving workflow efficiency. Sealing films or mats are available separately to complete the system.
Key Benefits
Pre‑loaded rack simplifies handling and organization
96‑well format supports high‑throughput workflows
Wide conical tip improves filling speed and reduces bubbles
Type 33 borosilicate glass ensures purity and durability
Compatible with autosampler vials for flexible workflows
Reduces sample handling and improves efficiency
Typical Applications
LC‑MS and LC‑MS/MS sample preparation
HPLC and GC workflows
High‑throughput screening
Pharmaceutical and analytical laboratories
Micro‑volume sample management
Specifications
Insert Volume: 350 µL
Insert Type: Wide conical point
Glass Type: Type 33 borosilicate (1st hydrolytic, Class A)
Format: 96 inserts in rack with base
Color: Clear
Packaging: 96 inserts (1 EA set)
Compatibility
Designed for U‑2D™ Micro‑Sample Management System
Compatible with 2 mL (12 × 32 mm) AQ™ autosampler vials
Suitable for GC, HPLC, and LC‑MS workflows
Works with sealing films or mats (sold separately)
Performance and Design Notes
Wide conical geometry improves sample loading efficiency
Pre‑loaded rack enhances organization and throughput
High‑purity glass minimizes contamination risks
Designed for flexible transfer between prep and analysis
Important Notes
Sealing films or mats are sold separately
Inserts can be removed and used in autosampler vials
Ideal for micro‑volume workflows requiring precision and efficiency
