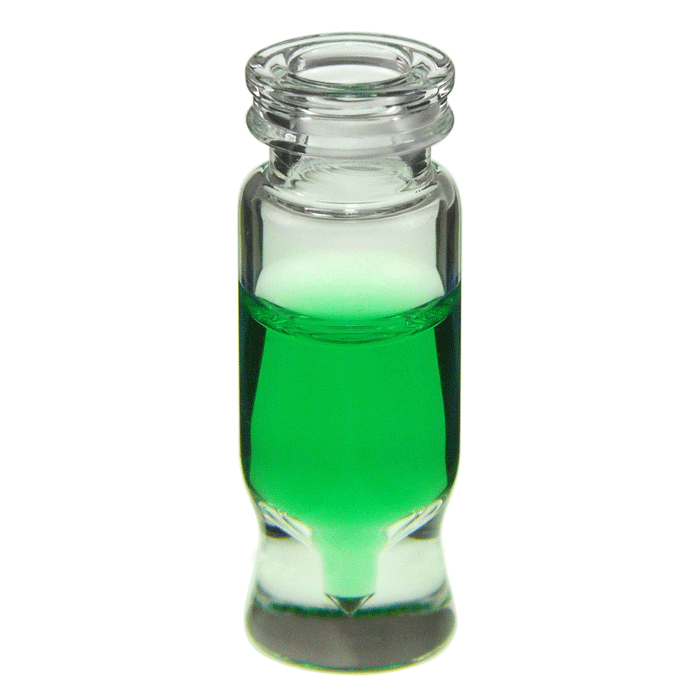

Vials, Snap Top, Glass. Clear, 1.2ml, MRQ™. Deactivated. An 11mm snap-ring and 12x32mm outer dimensions. For use as an autosampler vial. AQ Brand. 100/PK.
Additional Info:
The 9512C‑0CV‑TD snap‑top autosampler vial is a 1.2 mL clear glass vial engineered for chromatographic applications where maximum recovery, visibility, and reduced surface activity are essential. These vials are manufactured from first hydrolytic, Class A, Type‑33 borosilicate glass and feature a deactivated (silanized) surface to reduce interaction between analytes and the glass.
The MRQ™ (Maximum Recovery Quality) design combines smooth internal walls with no ledges and a center‑draining conical bottom that includes a well slightly larger than typical autosampler needles. This geometry allows bottom‑entry port needles to recover the maximum amount of sample and delivers an exceptionally low residual volume of approximately 2 µL.
Bottom depths are meticulously designed and QC controlled to prevent needles from contacting the vial bottom, ensuring compatibility with the most critical autosamplers. This vial provides excellent sample visibility and recovery from limited volumes in demanding analytical workflows.
A Certificate of Conformance is available upon request. Refer to the MRQ™ vial schematic drawing for detailed design and specifications.
Key Features
MRQ™ Center‑Draining Geometry
Smooth internal walls with no ledges
Center‑draining conical bottom with optimized well
Residual volume as low as ~2 µL
Designed for bottom‑entry autosampler needles
Deactivated Glass Design
Deactivated (silanized) Type‑33 borosilicate glass
Reduced interaction with adsorption‑sensitive analytes
Suitable for low‑abundance and problematic compounds
Precision Autosampler Design
QC‑controlled bottom depth and geometry
Helps prevent needle contact with vial bottom
Reliable performance on critical autosampler systems
Why Choose 1.2 mL MRQ™ Deactivated Snap‑Top Autosampler Vials?
The 9512C‑0CV‑TD is selected when laboratories need:
Maximum recovery from limited sample volumes
Ultra‑low residual volume performance
Deactivated glass surfaces for adsorption‑sensitive analytes
Excellent sample visibility during analysis
Consistent vial geometry for demanding HPLC and LC‑MS workflows
These vials are commonly used in advanced analytical laboratories where recovery efficiency and surface chemistry directly affect data quality.
Typical Applications
HPLC, UHPLC, LC‑MS, and LC‑MS/MS autosampling
Low‑abundance and trace‑level analysis
Adsorption‑sensitive and problematic compounds
Method development and validation
Quantitative chromatography requiring ultra‑low residual volume
Click HERE for a schematic drawing of the vial with specifications.
