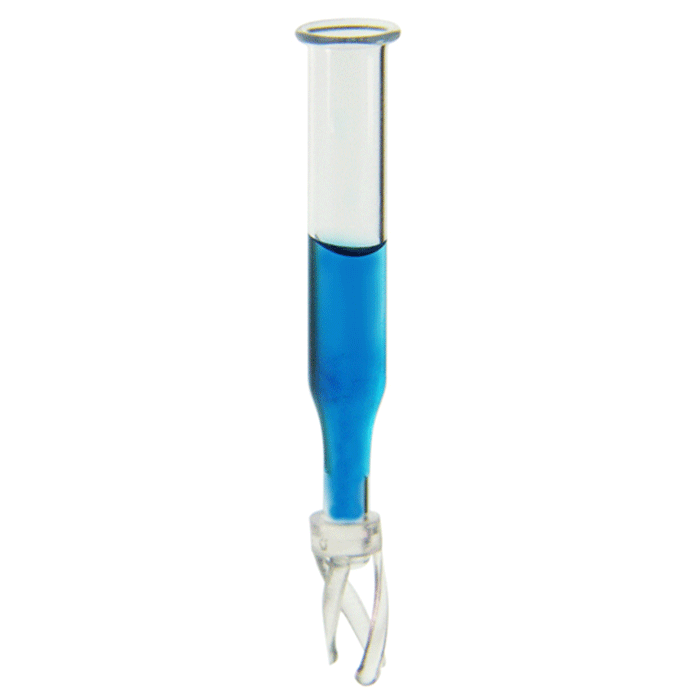

CUSTOM ITEM: Inserts, Low Volume for Vials, Glass. Clear, Deactivated, 300ul fill volume with a conical point and 6x38mm outer dimensions with plastic spring attached. For use in 4ml autosampler vials. AQ Brand. BULK PRICING.
Additional Info:
Improve recovery and minimize adsorption in moderate‑volume workflows using deactivated inserts designed for 4 mL vial applications.
9504S‑04ND inserts are manufactured from first hydrolytic, Class A, Type 33 borosilicate glass and undergo a deactivation (silanization) process to reduce active surface sites. This treatment enhances recovery of adsorption‑prone analytes while maintaining the durability and consistency required for routine and sensitive analytical methods.
These inserts feature a conical tip that concentrates the sample at the bottom, improving recovery and ensuring consistent needle access. With a 300 µL total fill volume, approximately 200 µL usable volume, and a residual volume near 3 µL with most autosamplers, this design provides an effective balance between capacity and performance.
Polypropylene springs keep the insert centered within the vial, reducing the risk of needle misalignment and minimizing insert breakage during repeated injections. Manufactured in an ISO 9001:2015 certified facility, these inserts offer consistent quality and reproducibility across batches.
Key Benefits
300 µL fill volume for mid‑range low volume workflows
~200 µL usable volume for efficient sample handling
~3 µL residual volume for reliable recovery
Deactivated (silanized) surface reduces adsorption
Conical tip improves sample concentration and access
Type 33 borosilicate glass for chemical durability
Spring‑mounted design ensures proper centering
Reduced risk of needle damage and insert breakage
Typical Applications
LC‑MS and LC‑MS/MS workflows
HPLC and UHPLC analysis
Adsorption‑sensitive analytes
Pharmaceutical and bioanalytical testing
Environmental and food analysis
Compatibility
Designed for 4 mL autosampler vials (15 × 45 mm)
Compatible with 13 mm screw top caps
Performance and Design Notes
Deactivation improves recovery vs untreated glass inserts
Conical geometry supports consistent injections
Larger vial format supports increased sample handling
Spring alignment enhances autosampler reliability
Important Notes
Ideal for moderate volume samples requiring reduced adsorption
Provides improved recovery over standard glass inserts
Designed for reproducible performance in automated systems
