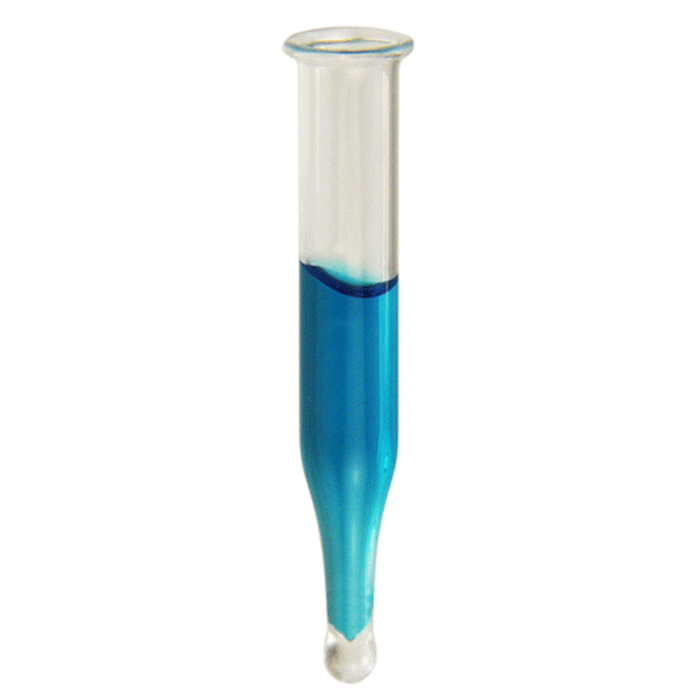

CUSTOM ITEM: Inserts, Low Volume for Vials, Glass. Clear, Deactivated, 250ul fill volume with a conical, precision point and 6x38mm outer dimensions. For use in 4ml autosampler vials. AQ Brand. BULK PRICING.
Additional Info:
Improve recovery and reduce adsorption for sensitive analytes when working with low‑volume samples in 4 mL vial formats.
9504S‑02ND inserts are manufactured from first hydrolytic, Class A, Type 33 borosilicate glass and undergo a deactivation (silanization) process to minimize active surface sites. This improves recovery for polar and adsorption‑prone compounds while maintaining consistent performance in LC‑MS and HPLC workflows.
The precision conical tip concentrates the sample at the bottom for reliable needle access and consistent injections. These inserts provide approximately 250 µL total fill volume with about 125 µL usable volume and a residual volume near 4 µL in most autosamplers, offering a practical balance between recovery and capacity.
The extended 6 × 38 mm design is optimized for 4 mL autosampler vials, enabling efficient use of larger containers for small volume samples. Springs may be required depending on the autosampler and are sold separately; when used, they help center the insert and reduce the risk of needle misalignment or breakage.
Key Benefits
250 µL fill volume for low‑volume workflows in 4 mL vials
~125 µL usable volume for efficient sample handling
~4 µL residual volume for consistent recovery
Deactivated surface reduces adsorption
Precision conical tip improves injection consistency
Type 33 borosilicate glass for chemical durability
Optional spring compatibility for improved alignment
Typical Applications
LC‑MS and LC‑MS/MS workflows
HPLC and UHPLC analysis
Adsorption‑sensitive analytes
Pharmaceutical and bioanalytical testing
Environmental and chemical analysis
Compatibility
Designed for 4 mL autosampler vials (15 × 45 mm)
Compatible with 13 mm screw top vials
Springs may be required depending on autosampler configuration
Performance and Design Notes
Deactivation improves recovery vs untreated glass
Precision tip ensures consistent sample positioning
Extended length supports proper positioning in 4 mL vials
Springs improve alignment and injection reliability when used
Important Notes
Springs are not included and may be required
Designed for low‑volume analysis in larger vial formats
Provides improved performance for adsorption‑sensitive samples
Custom Item Pricing Information
