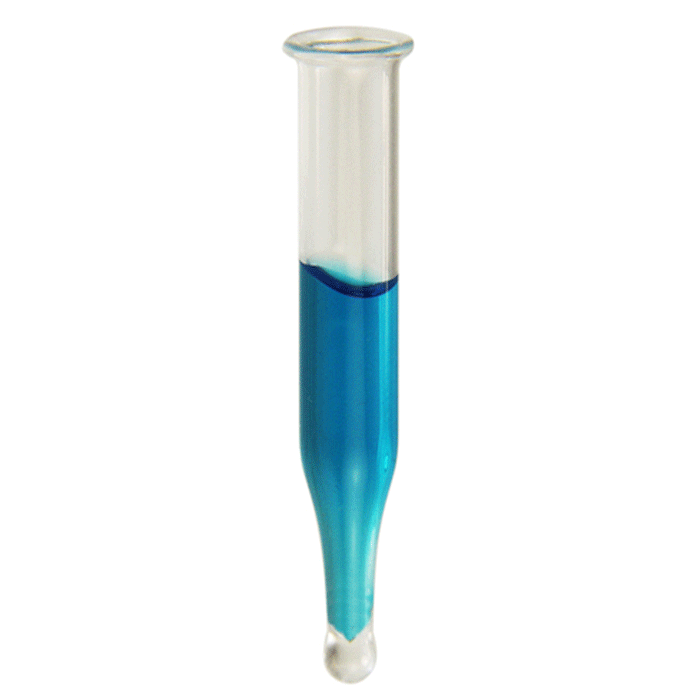

CUSTOM ITEM: Inserts, Low Volume for Vials, Glass. Clear, 250ul fill volume with a conical, precision point and 6x38mm outer dimensions. For use in 4ml autosampler vials. AQ Brand. BULK PRICING.
Additional Info:
Designed for reliable low‑volume analysis in larger vial formats, these inserts provide consistent recovery and performance for routine HPLC and LC‑MS workflows.
9504S‑02N inserts are manufactured from first hydrolytic, Class A, Type 33 borosilicate glass and feature a precision conical tip that concentrates sample at the bottom for improved recovery and consistent needle access. This design provides approximately 250 µL total fill volume with about 125 µL usable volume and a residual volume near 4 µL with most autosamplers.
The extended 6 × 38 mm format is optimized for 4 mL autosampler vials, allowing efficient handling of small sample volumes in larger containers. Manufactured in an ISO 9001:2015 certified facility, these inserts ensure consistent dimensional accuracy and dependable performance across batches.
Key Benefits
250 µL fill volume for low‑volume workflows in 4 mL vials
~125 µL usable volume for efficient sample handling
~4 µL residual volume for consistent recovery
Precision conical tip improves injection consistency
Type 33 borosilicate glass for chemical durability
Designed for reliable, routine analytical use
Compatible with optional spring support
Typical Applications
HPLC and UHPLC analysis
LC‑MS workflows
Pharmaceutical and chemical testing
Environmental and food analysis
Routine laboratory workflows using 4 mL vials
Compatibility
Designed for 4 mL autosampler vials (15 × 45 mm)
Compatible with 13 mm screw top vials
Springs may be required depending on autosampler configuration
Performance and Design Notes
Precision tip improves recovery vs flat inserts
Extended geometry optimized for 4 mL vial depth
Designed for consistent injection performance
Suitable for automated workflows
Important Notes
Springs are not included and may be required depending on system
Designed for routine applications where moderate recovery is acceptable
Provides dependable performance at scale
