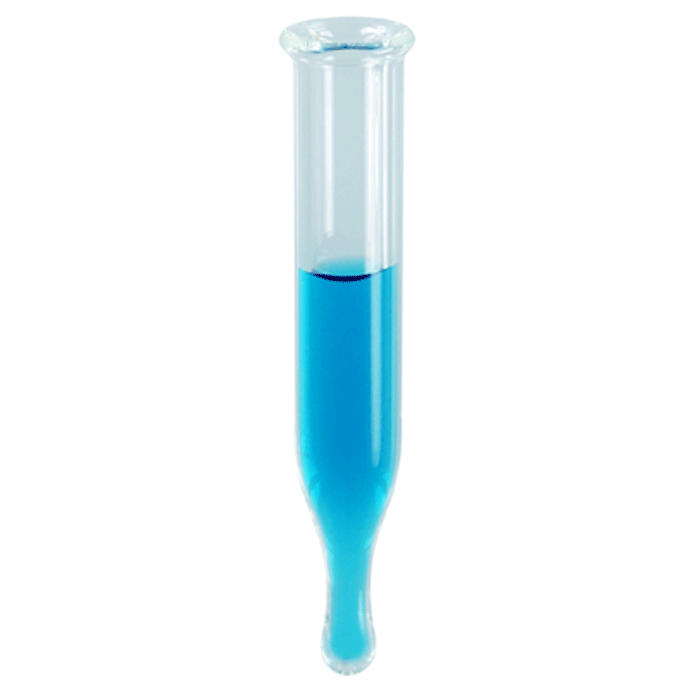

CUSTOM ITEM: Inserts, Low Volume for Vials, Glass. Clear, Deactivated, 250ul fill volume with a conical, precision point and 6x38mm outer dimensions. For use in 4ml autosampler vials. AQ Brand. BULK PRICING.
Additional Info:
Improve recovery and reduce adsorption in larger vial formats with deactivated inserts designed for sensitive analytical workflows.
9504S‑01ND inserts are manufactured from first hydrolytic, Class A, Type 33 borosilicate glass and undergo a deactivation (silanization) process to minimize active surface sites. This improves recovery of polar and adsorption‑prone analytes while maintaining excellent consistency through a mandrel‑formed precision conical tip.
The precision tip concentrates sample at the bottom, providing approximately 250 µL total fill volume with about 150 µL usable volume and a residual volume near 3 µL in most autosamplers. This ensures reliable needle access and reproducible injections in LC‑MS and HPLC workflows.
The extended 6 × 38 mm design is optimized for 4 mL autosampler vials, allowing low‑volume sample handling within larger vial formats. Springs may be required depending on the autosampler and are sold separately; when used, they improve centering and reduce the risk of needle misalignment or insert breakage.
Manufactured in an ISO 9001:2015 certified facility, these inserts provide consistent dimensional accuracy and reliable performance across batches.
Key Benefits
250 µL fill volume for low‑volume workflows in 4 mL vials
~150 µL usable volume for efficient sample utilization
~3 µL residual volume for maximum recovery
Deactivated surface reduces adsorption
Precision conical tip improves injection consistency
Mandrel‑formed geometry ensures reproducibility
Type 33 borosilicate glass for chemical durability
Optional spring compatibility for proper centering
Typical Applications
LC‑MS and LC‑MS/MS workflows
HPLC and UHPLC analysis
Adsorption‑sensitive analytes
Pharmaceutical and bioanalytical testing
Environmental and chemical analysis
Compatibility
Designed for 4 mL autosampler vials (15 × 45 mm)
Compatible with 13 mm screw top vials
Springs may be required depending on autosampler configuration
Performance and Design Notes
Deactivation improves recovery vs untreated glass
Precision tip ensures consistent sample positioning
Extended length optimized for 4 mL vial geometry
Springs improve alignment and injection reliability when used
Important Notes
Springs are not included and may be required
Designed for low‑volume analysis in larger vial formats
Provides improved performance for adsorption‑sensitive samples
Custom Item Pricing Information
