Catalog Number - 9504R-01

Improve handling, organization, and visibility of larger autosampler vials with a precision‑engineered acrylic rack designed specifically for 15 × 45 mm formats.

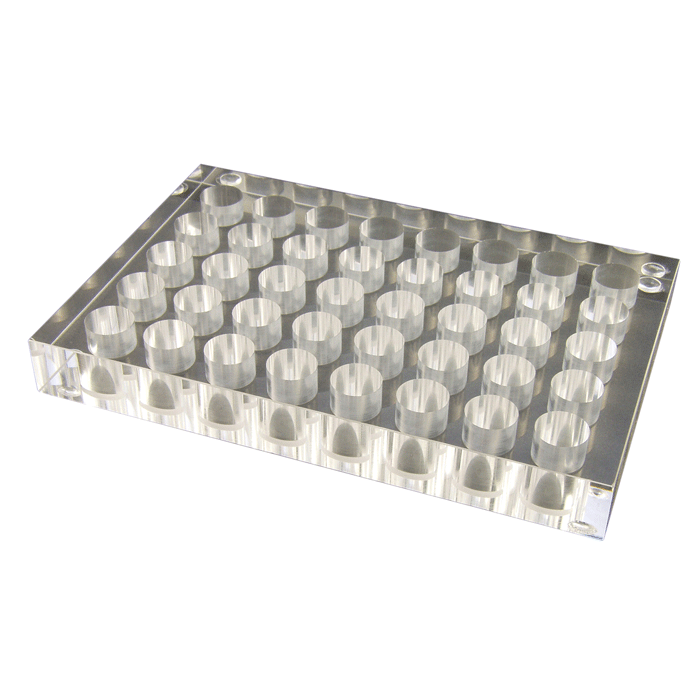

9504R-01 racks are constructed from clear acrylic, allowing full visibility of vial contents during filling and inspection. This transparency provides a practical advantage over opaque racks by enabling quick identification of sample volumes, bubbles, or particulates without removing vials.

The one‑piece construction enhances stability and durability, making the rack more reliable than multi‑component designs. Silicone feet on the base allow racks to be stacked securely, helping optimize bench space and maintain an organized workflow in busy laboratory environments.

Designed with 40 precision wells (15.1 mm diameter), this rack securely holds flat bottom 4 mL autosampler vials, ensuring consistent positioning during filling, storage, or transport.

Key Benefits

• Designed for 15 × 45 mm (4 mL) autosampler vials

• Holds 40 vials for efficient sample organization

• Clear acrylic improves visibility during filling and inspection

• One‑piece construction enhances stability and durability

• Silicone feet allow safe stacking and space optimization

• Precision well sizing ensures secure vial placement

• Supports efficient sample handling and transport workflows

Typical Applications

• LC‑MS and HPLC sample preparation

• Storage and organization of 4 mL autosampler vials

• Filling and inspection workflows

• Sample transport within laboratory environments

• Pharmaceutical, analytical, and research laboratories

Specifications

• Material: Clear acrylic

• Capacity: 40 vials

• Well Diameter: 15.1 mm

• Dimensions: 175.8 mm (W) × 115.5 mm (D) × 20 mm (H)

• Compatibility: 15 × 45 mm autosampler vials (4 mL)

• Construction: One‑piece with silicone feet

Compatibility

• Designed for 4 mL, 15 × 45 mm autosampler vials

• Suitable for HPLC, UHPLC, and LC‑MS workflows

• Compatible with flat bottom vial designs

Performance and Design Notes

• Clear material improves accuracy during sample preparation

• Stackable design enhances lab organization and storage efficiency

• Stable construction reduces tipping and handling errors

• Designed for repeated use in demanding laboratory environments

Important Notes

• Intended for bench‑top use only (not autosampler integration)

• Designed specifically for larger‑diameter autosampler vials

• Ideal for improving workflow efficiency and sample organization

  ---
