Catalog Number - 9502S-04ND

Maximize recovery and minimize adsorption with a suspended insert design engineered for sensitive analytical workflows.

9502S‑04ND inserts are manufactured from first hydrolytic, Class A, Type 33 borosilicate glass and undergo a deactivation (silanization) process to reduce active surface sites. This improves recovery of polar and adsorption‑prone analytes while maintaining consistent performance for HPLC and LC‑MS applications requiring high sensitivity.

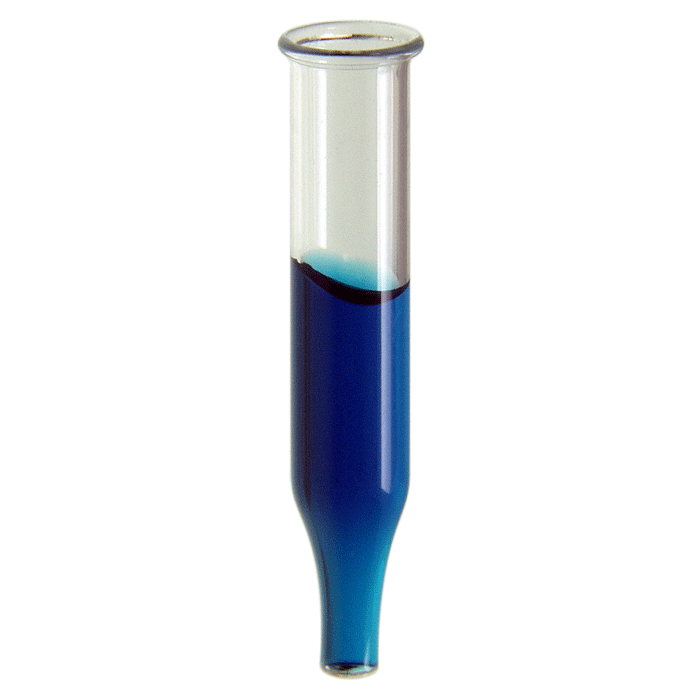

Each insert features a mandrel‑formed precision conical tip that concentrates the sample at the bottom for efficient recovery and reliable needle access. Residual volume is approximately 5 µL with most autosamplers. The unique 6 mm top flange suspends the insert from the vial opening, centering it at the top rather than the bottom and allowing direct sealing against the cap septa.

This flange‑suspension design eliminates the need for springs when used with AQ Brand 9 mm screw thread autosampler vials, simplifying handling while improving sealing consistency and alignment. The design can also be used with some 11 mm snap top vials, offering standard performance flexibility.

Manufactured in an ISO 9001:2015 certified facility, these inserts provide reliable dimensional control and batch‑to‑batch consistency. The combination of deactivated surface chemistry and suspended positioning makes this design highly effective for reproducible, low‑volume applications.

Key Benefits

• 300 µL fill volume for low‑volume workflows

• ~5 µL residual volume for reliable recovery

• Deactivated (silanized) surface reduces adsorption

• Precision conical tip improves sample access and consistency

• Top flange suspension eliminates need for springs

• Direct sealing against septa improves performance

• Consistent centering at vial opening

• Type 33 borosilicate glass for chemical durability

Typical Applications

• LC‑MS and LC‑MS/MS analysis

• HPLC and UHPLC workflows

• Adsorption‑sensitive analytes

• Pharmaceutical and bioanalytical testing

• Laboratories seeking simplified insert handling

Compatibility

• Designed for 2 mL autosampler vials (12 × 32 mm)

• Optimized for AQ Brand 9 mm screw top vials

• Compatible with some 11 mm snap top vials (standard performance)

Performance and Design Notes

• Flange design suspends insert for consistent top alignment

• Deactivation improves recovery vs untreated glass inserts

• Direct septa sealing enhances injection consistency

• Eliminates need for springs in most workflows

• Comparable to Quick Drop style inserts

Important Notes

• Best performance achieved with AQ Brand 9 mm screw top vials

• Springs are not required for standard operation

• Residual volume may vary depending on autosampler configuration

• Designed for sensitive, low‑volume analytical workflows

  ---
