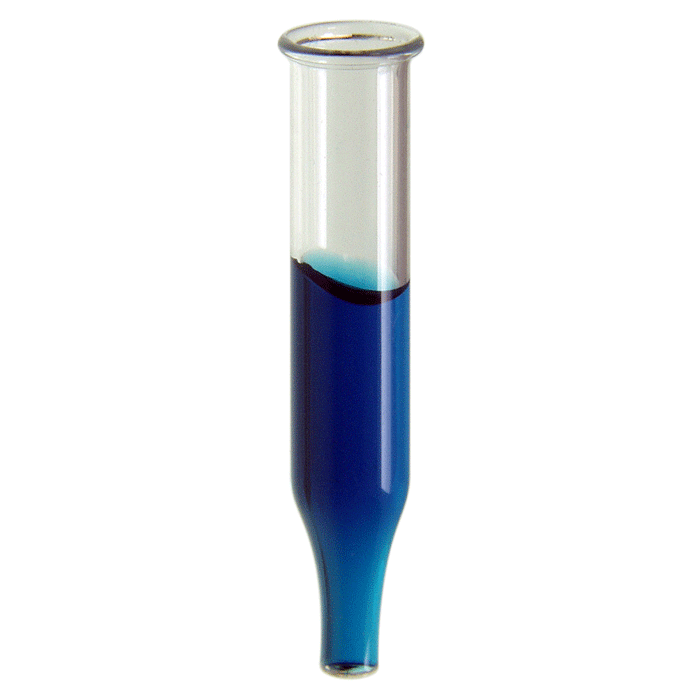

CUSTOM ITEM: Inserts, Low Volume for Vials, Glass. Clear, 300ul fill volume with a conical, precision point and 6x30mm outer dimensions. For use in 2ml autosampler vials. AQ Brand. BULK PRICING.
Additional Info:
Improve sealing consistency and eliminate springs with a suspended insert design engineered for precision workflows.
9502S‑04N inserts are manufactured from first hydrolytic, Class A, Type 33 borosilicate glass and feature a mandrel‑formed precision conical tip for efficient sample concentration and excellent recovery. With a residual volume of approximately 5 µL in most autosamplers, these inserts are designed to provide reliable performance in routine analytical applications.
A unique 6 mm flange at the top of the insert suspends it from the vial opening rather than positioning it at the bottom. This design centers the insert at the top of the vial and allows it to seal directly against the cap septa when used with AQ Brand 9 mm screw thread vials. This eliminates the need for springs while improving sealing consistency and alignment during injection.
Manufactured in an ISO 9001:2015 certified facility, these inserts provide consistent dimensional control and reproducible performance. The flange‑suspension design also reduces handling complexity while maintaining dependable needle access and sample integrity.
Key Benefits
300 µL fill volume for low‑volume workflows
~5 µL residual volume for consistent recovery
Precision conical tip improves sample access
Top flange suspension eliminates need for springs
Improved sealing directly against septa
Consistent centering at vial opening
Type 33 borosilicate glass for chemical durability
Simplified handling and setup
Typical Applications
HPLC and UHPLC analysis
LC‑MS workflows
Routine pharmaceutical testing
Environmental and food analysis
Laboratories seeking simplified insert handling
Compatibility
Designed for 2 mL autosampler vials (12 × 32 mm)
Optimized for AQ Brand 9 mm screw thread vials
Compatible with some 11 mm snap top vials (standard performance)
Performance and Design Notes
Flange design suspends insert for consistent alignment
Direct sealing against septa improves performance
Eliminates need for springs in most configurations
Comparable to Quick Drop style inserts
Important Notes
Best performance achieved with AQ Brand 9 mm screw top vials
Springs are not required for standard operation
Residual volume may vary depending on autosampler configuration
Custom Item Pricing Information
