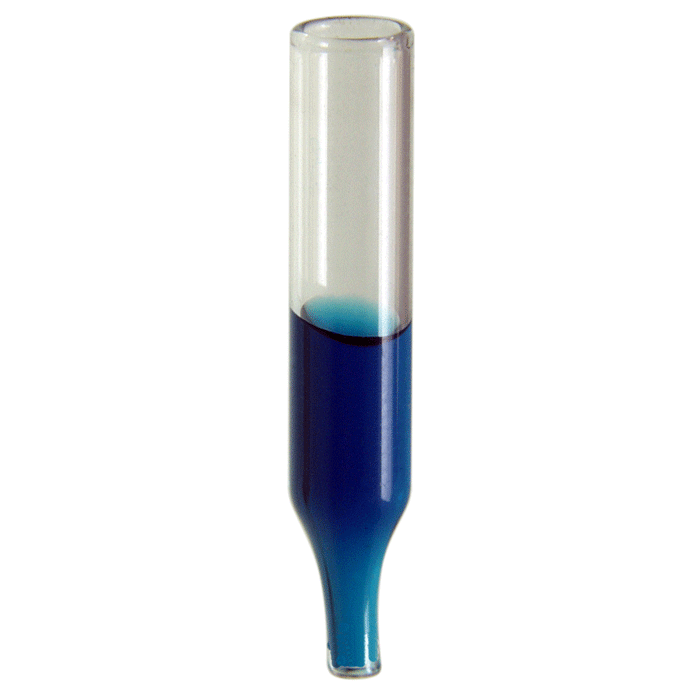

CUSTOM ITEM: Inserts, Low Volume for Vials, Glass. Clear, Deactivated, 300ul fill volume with conical point and 6x31mm outer dimensions. Self aligning, for use in 2ml autosampler vials. AQ Brand. BULK PRICING.
Additional Info:
Improve recovery and simplify workflows for adsorption‑sensitive samples using self‑aligning deactivated inserts.
9502S‑03ND inserts are manufactured from first hydrolytic, Class A, Type 33 borosilicate glass and undergo a deactivation (silanization) process to reduce active surface sites. This treatment minimizes analyte interaction, improving recovery and consistency for polar, basic, or adsorption‑prone compounds.
The self‑aligning design eliminates the need for springs by allowing the insert to center itself within the vial. Slightly taller than standard inserts, it rests securely at the bottom of the vial, ensuring stable positioning and consistent needle access. The conical tip concentrates the sample at the bottom for efficient recovery, while the wider cone geometry helps reduce bubble formation during filling.
These inserts provide a 300 µL total fill volume with approximately 200 µL usable volume and a residual volume near 2 µL with most autosamplers. Manufactured in an ISO 9001:2015 certified facility, they deliver reliable consistency across batches for reproducible analytical results.
Key Benefits
300 µL fill volume for low‑volume workflows
~200 µL usable volume for efficient sample use
~2 µL residual volume for maximum recovery
Deactivated (silanized) surface reduces adsorption
Self‑aligning design eliminates need for springs
Conical tip improves sample concentration and access
Wider cone reduces bubble formation
Type 33 borosilicate glass for chemical durability
Typical Applications
LC‑MS and LC‑MS/MS analysis
HPLC and UHPLC workflows
Adsorption‑sensitive analytes
Pharmaceutical and bioanalytical testing
High‑throughput laboratories seeking simplified handling
Compatibility
Designed for 2 mL autosampler vials (12 × 32 mm)
Compatible with:
9 mm screw top caps
11 mm snap top caps
Performance and Design Notes
Self‑centering design ensures consistent positioning
Deactivation improves recovery vs untreated glass
Wider conical geometry minimizes bubble formation
No spring simplifies handling and setup
Important Notes
No spring required for centering
Ideal for adsorption‑prone and sensitive samples
Designed for simplified workflows and reliable automation
