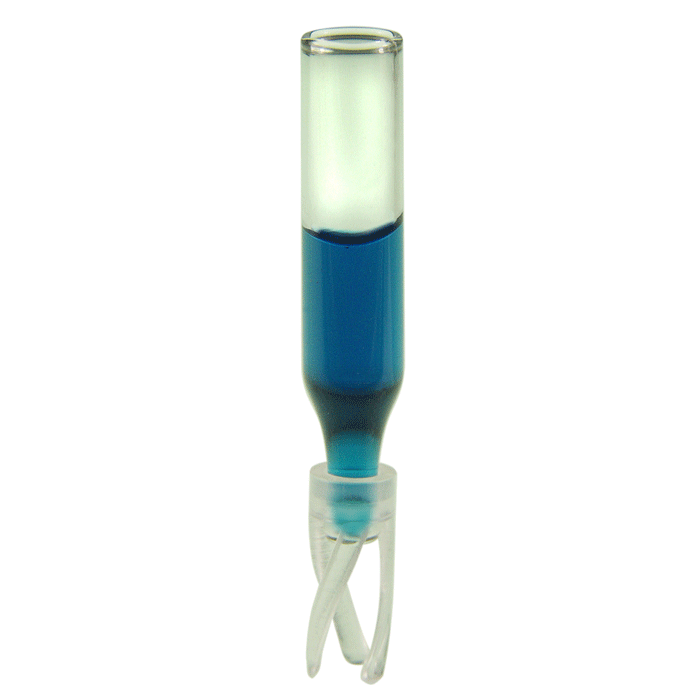

Inserts, Low Volume for Vials, Glass. Clear, Deactivated, 300ul fill volume with a wider, conical point and 6x29mm outer dimensions with plastic spring attached. For use in 2ml autosampler vials. AQ Brand. 1000/CS.
Additional Info:
Reduce adsorption and improve injection consistency for challenging samples with deactivated wide‑cone insert design.
9502S‑02CPD‑K inserts are manufactured from first hydrolytic, Class A, Type 33 borosilicate glass and undergo a deactivation (silanization) process to minimize active surface sites. Combined with a thicker wall design and wider conical tip, these inserts help reduce both analyte adsorption and bubble formation, delivering improved recovery and reproducibility for sensitive workflows.
The wider conical geometry improves sample stability at the tip while maintaining efficient needle access. Residual volume is approximately 2.5 µL with most autosamplers. Polypropylene springs keep inserts centered within the vial, reducing the risk of needle misalignment and minimizing insert breakage during repeated injections.
Manufactured in an ISO 9001:2015 certified facility, these inserts provide consistent quality across large production batches. The combination of deactivated glass chemistry and optimized geometry offers a strong balance of performance, durability, and reliability compared to standard and basic silanized insert designs.
Key Benefits
300 µL fill volume for low‑volume workflows
~2.5 µL residual volume for effective recovery
Deactivated (silanized) surface reduces adsorption
Wider conical tip minimizes bubble formation
Thicker glass walls improve durability
Improved recovery for polar and basic compounds
Spring‑mounted design ensures consistent centering
Case format supports high‑throughput laboratories
Typical Applications
LC‑MS and LC‑MS/MS workflows
HPLC and UHPLC analysis
Adsorption‑sensitive analytes
Pharmaceutical and bioanalytical testing
High‑throughput laboratory environments
Compatibility
Designed for 2 mL (12 × 32 mm) autosampler vials
Compatible with:
9 mm screw top caps
11 mm snap top caps
Performance and Design Notes
Deactivation improves performance vs untreated glass
Wider cone geometry reduces bubble formation at the tip
Thicker glass enhances mechanical strength and durability
Comparable to Polyspring™‑style inserts with added surface treatment benefits
Optimized for reproducible, automated workflows
Important Notes
Ideal for samples prone to adsorption and bubble formation
Provides better recovery than untreated or standard inserts
Case format supports efficiency in high‑volume labs
Designed for consistent performance across analytical systems
