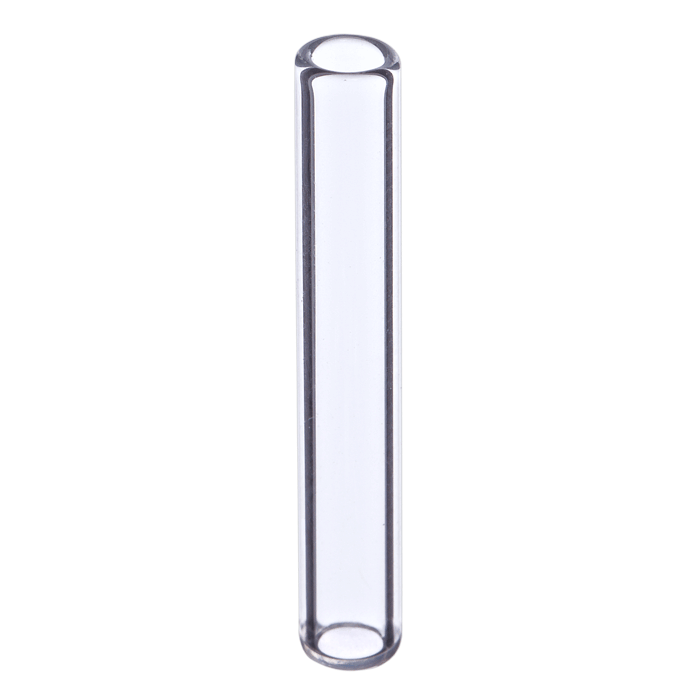

Inserts, Low Volume for Vials, Glass. Clear, 250ul fill volume with a flat bottom and 5x31mm outer dimensions. For use in narrow mouth, 2ml autosampler vials. AQ Brand. 100/PK.
Additional Info:
A simple, cost‑effective insert designed specifically for narrow‑mouth vial configurations and routine analytical workflows.
9502C‑0‑FB inserts are manufactured from first hydrolytic, Class A, Type 33 borosilicate glass and feature a flat bottom design for stable sample positioning and reliable handling. With a residual volume of approximately 3.5 µL in most autosamplers, these inserts provide dependable performance for general laboratory applications.
These inserts are designed for use in narrow‑mouth 2 mL autosampler vials, particularly those with 8 mm openings (such as vial series beginning with 9582S). The geometry eliminates the need for springs, simplifying handling while maintaining proper positioning for consistent injections.
Manufactured in an ISO 9001:2015 certified facility, these inserts offer consistent dimensional quality and reliable reproducibility. As one of the lowest cost options available, they are ideal for laboratories prioritizing affordability without sacrificing essential performance.
Key Benefits
250 µL fill volume for low‑volume workflows
~3.5 µL residual volume for consistent recovery
Flat bottom design provides stable sample positioning
Designed specifically for narrow‑mouth vials
No spring required for simplified handling
Type 33 borosilicate glass for chemical durability
Cost‑effective solution for routine applications
Typical Applications
HPLC and UHPLC analysis
LC‑MS workflows (routine methods)
General laboratory testing
Environmental and food analysis
Budget‑focused, high‑throughput laboratories
Compatibility
Designed for narrow‑mouth 2 mL autosampler vials (12 × 32 mm)
Optimized for 8 mm opening vials (e.g., 9582S series)
No spring required for centering
Performance and Design Notes
Flat bottom design prioritizes simplicity and cost efficiency
Optimized for narrow‑mouth vial geometry
Consistent dimensions support automated workflows
Suitable for routine analyses where ultra‑low recovery is not required
Important Notes
Not intended for maximum recovery applications
Designed specifically for narrow‑mouth vial compatibility
Ideal for high‑volume labs requiring economical solutions
