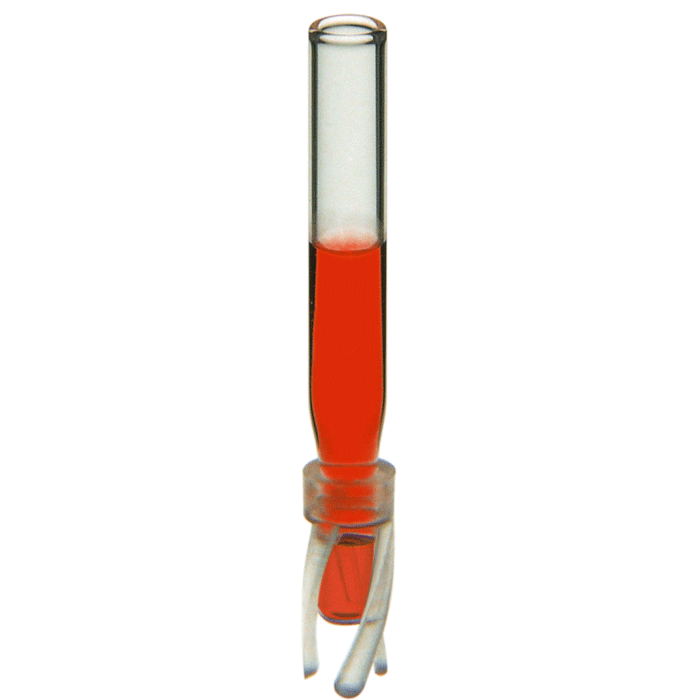

CUSTOM ITEM: Inserts, Low Volume for Vials, Glass. Clear, 200ul fill volume with a conical, precision point and 5x32mm outer dimensions with plastic spring attached. For use in 8mm, Push Top, 1ml autosampler vials. AQ Brand. BULK PRICING.
Additional Info:
Designed for very low volume samples requiring maximum recovery and precise autosampler performance.
95001‑02N inserts are manufactured from first hydrolytic, Class A, Type 33 borosilicate glass, providing reliable chemical resistance and consistent performance for routine HPLC and LC‑MS workflows. The smaller format is optimized for 1 mL vials used in high‑density and limited‑volume applications.
Each insert features a precision conical tip that concentrates sample at the bottom to maximize recovery and ensure consistent needle access. Residual volume is approximately 2 µL with most autosamplers. Polypropylene springs keep the insert centered within the vial, reducing the risk of needle contact and minimizing insert breakage during injections.
Manufactured in an ISO 9001:2015 certified facility, these inserts provide consistent performance and dimensional accuracy. Their compact size makes them especially useful in 96‑position vial formats where space efficiency and sample conservation are critical.
Key Benefits
200 µL fill volume for very low‑volume applications
~2 µL residual volume for maximum recovery
Precision conical tip improves reproducibility
Spring‑mounted design maintains centering and stability
Reduced risk of needle misalignment and breakage
Type 33 borosilicate glass for chemical durability
Optimized for compact vial formats
Typical Applications
LC‑MS and LC‑MS/MS analysis
HPLC and UHPLC workflows
Limited sample volume testing
High‑density autosampler plate workflows
Pharmaceutical and bioanalytical analysis
Compatibility
Designed for 1 mL autosampler vials (8 × 40 mm)
Compatible with push‑top (push cap) vial formats
Suitable for "96‑position vials"
Performance and Design Notes
Precision tip ensures consistent sample positioning
Designed for reliable use in small‑volume vial formats
Spring alignment improves autosampler accuracy
Optimized geometry supports reproducible injections
Important Notes
Ideal for low‑volume and high‑value samples
Designed for compact vial systems and high‑throughput setups
Provides consistent recovery and injection reliability
