Catalog Number - 95001-01ND

Improve recovery and reduce adsorption for low‑volume, high‑sensitivity workflows in compact vial formats.

95001‑01ND inserts are manufactured from first hydrolytic, Class A, Type 33 borosilicate glass and undergo a deactivation (silanization) process to minimize active surface sites. This enhances recovery of polar and adsorption‑prone analytes while maintaining consistent performance for LC‑MS and HPLC applications.

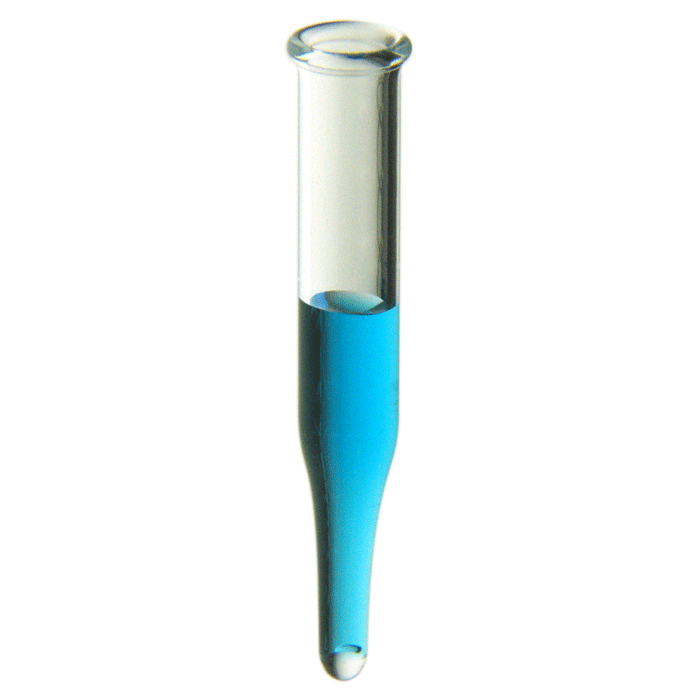

Each insert features a precision conical tip that concentrates sample at the bottom for maximum recovery and consistent needle access. Residual volume is approximately 2 µL with most autosamplers, making these inserts ideal for limited or high‑value samples.

These inserts are supplied without springs and are designed for use with 1 mL, 8 mm push‑top autosampler vials, including “96‑position” vial formats (a reference to vial dimensions, not plate format). Depending on the autosampler configuration, a spring may be required. In this format, metal springs are recommended and sold separately, providing improved durability and alignment compared to plastic alternatives.

Manufactured in an ISO 9001:2015 certified facility, these inserts deliver reliable dimensional consistency and reproducible analytical performance.

Key Benefits

• 200 µL fill volume for low‑volume workflows

• ~2 µL residual volume for maximum recovery

• Deactivated (silanized) surface reduces adsorption

• Precision conical tip improves injection consistency

• Compatible with compact 1 mL vial formats

• Optional metal spring compatibility for improved alignment

• Type 33 borosilicate glass for chemical durability

• Designed for sensitive analytical applications

Typical Applications

• LC‑MS and LC‑MS/MS analysis

• HPLC and UHPLC workflows

• Adsorption‑sensitive analytes

• Pharmaceutical and bioanalytical testing

• High‑density autosampler configurations

Compatibility

• Designed for 1 mL autosampler vials (8 × 40 mm)

• Compatible with push‑top vial formats

• Suitable for “96‑position” vial configurations (size‑based)

• Metal springs available separately if required for centering

Performance and Design Notes

• Deactivation improves recovery vs untreated glass inserts

• Precision tip ensures consistent sample positioning

• Metal springs offer improved durability and alignment when used

• Compact design supports efficient, high‑throughput workflows

Important Notes

• Springs are not included and may be required depending on autosampler

• Metal springs are recommended for optimal performance

• “96‑position” refers to vial size compatibility, not plate format

• Designed for reproducible, high‑sensitivity applications

• This and other custom items are Custom Ordered and require quotation
