Catalog Number - 82561-PG2

Cogent NP Silica™ Guard Column Cartridges are designed to protect analytical HPLC columns from particulate contamination and strongly retained compounds that can reduce column efficiency and shorten column lifetime. Packed with the same high-purity stationary phase as the analytical column, these guard cartridges help maintain chromatographic performance while reducing the cost of replacing analytical columns.

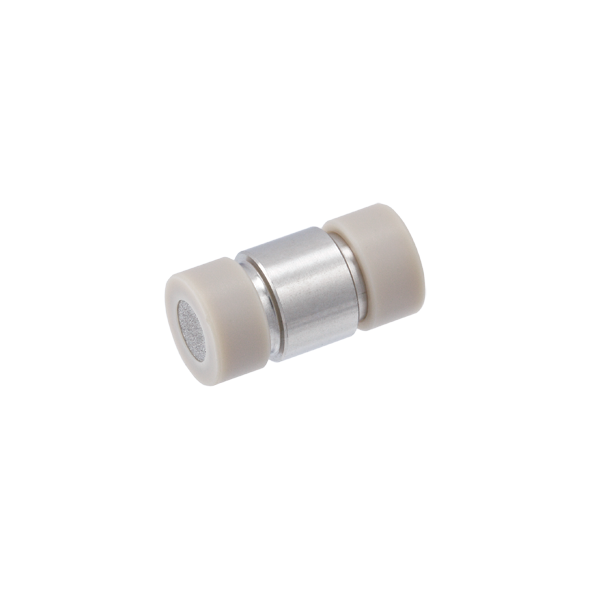

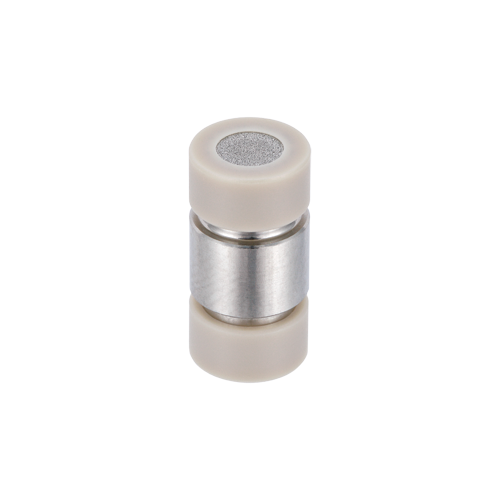

82561-PG2 Guard Column Cartridges are packed with 5 µm NP Silica™ stationary phase manufactured from ultra-high purity, low-metal-content 100 Å silica. This unmodified silica stationary phase provides the traditional selectivity associated with USP L3 classified materials, making these cartridges ideal for use with Cogent NP Silica™ analytical HPLC columns. Each cartridge is packed in a stainless steel tube with stainless steel frits secured within durable PEEK frit caps for reliable performance and long service life.

The 4.0 mm ID x 10 mm format is specifically designed to protect 3.0 mm, 4.0 mm, and 4.6 mm ID analytical columns used in HILIC and normal-phase chromatography. Routine guard cartridge replacement helps maintain analytical column efficiency, minimize downtime, and extend column service life.

Key Benefits

• NP Silica™ stationary phase

• USP L3 equivalent chemistry

• Ultra-high purity, low-metal-content silica

• Unmodified silica surface

• 100 Å pore size

• Suitable for HILIC applications

• Suitable for normal-phase chromatography

• Protects analytical columns from contamination

• Extends analytical column lifetime

• Stainless steel construction with PEEK frit caps

Typical Applications

• HILIC chromatography

• Normal-phase HPLC

• Polar compound analysis

• Hydrophilic compound analysis

• Pharmaceutical analysis

• Quality control testing

• Method development

• Analytical column protection

• Routine maintenance programs

• USP L3 method support

Specifications

• Product Type: Guard Column Cartridge

• Stationary Phase: NP Silica™

• Chromatography Mode: HILIC / Normal Phase

• USP Classification: L3

• Particle Size: 5 µm

• Pore Size: 100 Å

• Cartridge Dimensions: 4.0 mm ID x 10 mm

• Construction: Stainless Steel Cartridge

• Frit Material: Stainless Steel

• Frit Cap Material: PEEK

• Quantity: 5 Pack

• Brand: Cogent

Guard Column Requirements

• Requires a Cogent Guard Column Holder (Catalog No. 83000-GH).

• Designed for use with compatible Cogent NP Silica™ 3.0 mm, 4.0 mm, and 4.6 mm ID analytical HPLC columns.

Important Notes

• Suitable for HILIC applications

• Suitable for normal-phase chromatography

• Unmodified silica stationary phase

• USP L3 equivalent chemistry

• Protects analytical columns from particulates and strongly retained contaminants

• Helps extend column lifetime and maintain performance

• Designed specifically for 3.0 mm, 4.0 mm, and 4.6 mm ID analytical columns

• Requires a compatible Cogent Guard Column Holder

• Intended for routine replacement as part of preventive maintenance

• Package contains five guard column cartridges
