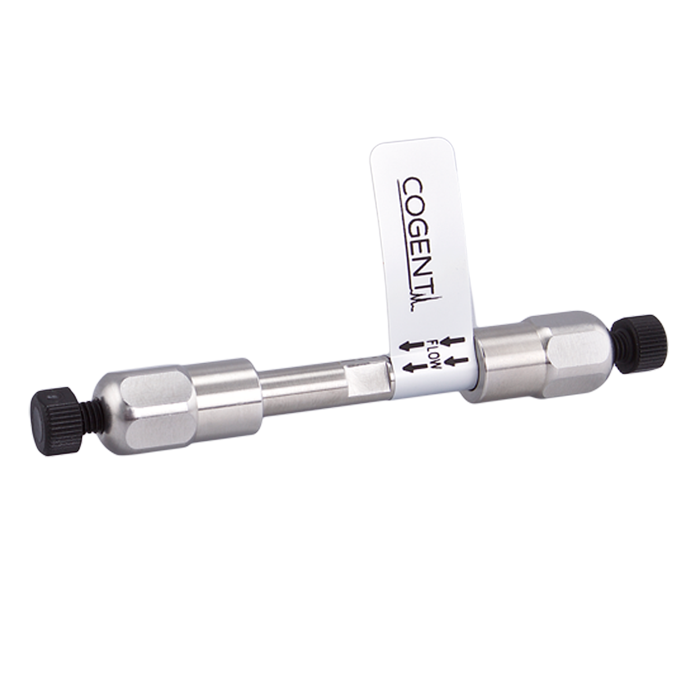

HPLC Column, NP Cyano, 5um, 2.1mm ID x 50mm Length, 100A. Cogent Brand. 1 EA.
Additional Information:
Cogent NP Cyano™ HPLC Columns are designed for normal-phase chromatography of polar compounds requiring the selectivity associated with USP L10 classified stationary phases. Manufactured using ultra-high purity silica bonded with a three-carbon ligand containing a terminal cyano (CN) functional group, this non-endcapped stationary phase provides unique selectivity that often produces shorter retention times and faster column equilibration compared to unmodified silica columns.
82534-05P-2 is packed with 5 µm NP Cyano™ particles featuring a 100 Å pore size in a 2.1 mm ID x 50 mm format. The narrow internal diameter reduces solvent consumption while maintaining the selectivity and performance expected from a USP L10 cyano phase. The short 50 mm length is ideal for rapid analyses, high-throughput workflows, and method development applications where speed and efficiency are important.
The 2.1 mm ID x 50 mm format is well suited for normal-phase chromatography of polar compounds, pharmaceutical analysis, quality control testing, and method development. Typical flow rates are approximately 0.2-0.3 mL/min. Standard HPLC systems used with 2.1 mm ID columns must be capable of delivering stable and reproducible low flow rates for optimum chromatographic performance.
Key Benefits
NP Cyano™ stationary phase
USP L10 equivalent chemistry
Ultra-high purity silica support
Non-endcapped surface
Three-carbon cyano bonded phase
100 Å pore size
Suitable for normal-phase chromatography
Shorter retention than unmodified silica columns
Faster equilibration between runs
Reduced solvent consumption
Typical Applications
Normal-phase HPLC
Polar compound analysis
Pharmaceutical analysis
Quality control testing
Method development
Chemical analysis
Organic compound separations
USP L10 method replacement
Routine analytical HPLC
High-throughput analysis
Specifications
Product Type: HPLC Column
Stationary Phase: NP Cyano™
Chromatography Mode: Normal Phase
USP Classification: L10
Functional Group: Cyano (CN)
Particle Size: 5 µm
Pore Size: 100 Å
Column Dimensions: 2.1 mm ID x 50 mm
Recommended Flow Rate: 0.2-0.3 mL/min
Column Hardware: Stainless Steel
Brand: Cogent
Important Notes
Designed for normal-phase chromatography
USP L10 equivalent chemistry
Non-endcapped bonded phase
Provides shorter retention times than unmodified silica columns in many methods
Faster equilibration between runs compared to silica columns
Excellent choice for polar compound separations
Packed and shipped in normal-phase solvents
50 mm length minimizes analysis time
Standard HPLC systems must be capable of reliable low-flow operation at approximately 0.2-0.3 mL/min
For Cyano columns packed in reversed-phase solvents, see the Cogent RP Cyano product line
