Catalog Number - 82361-10P

Cogent NP Silica™ HPLC Columns are designed for the separation of hydrophilic and polar compounds using Normal Phase and HILIC chromatography modes. Manufactured from ultra-high purity, low metal content 100Å silica that is not chemically modified, this stationary phase provides the native silica selectivity required for many traditional Normal Phase and HILIC applications. NP Silica™ is widely used as an alternative for USP L3 methods and for new analytical methods requiring the unique retention characteristics of unbonded silica.

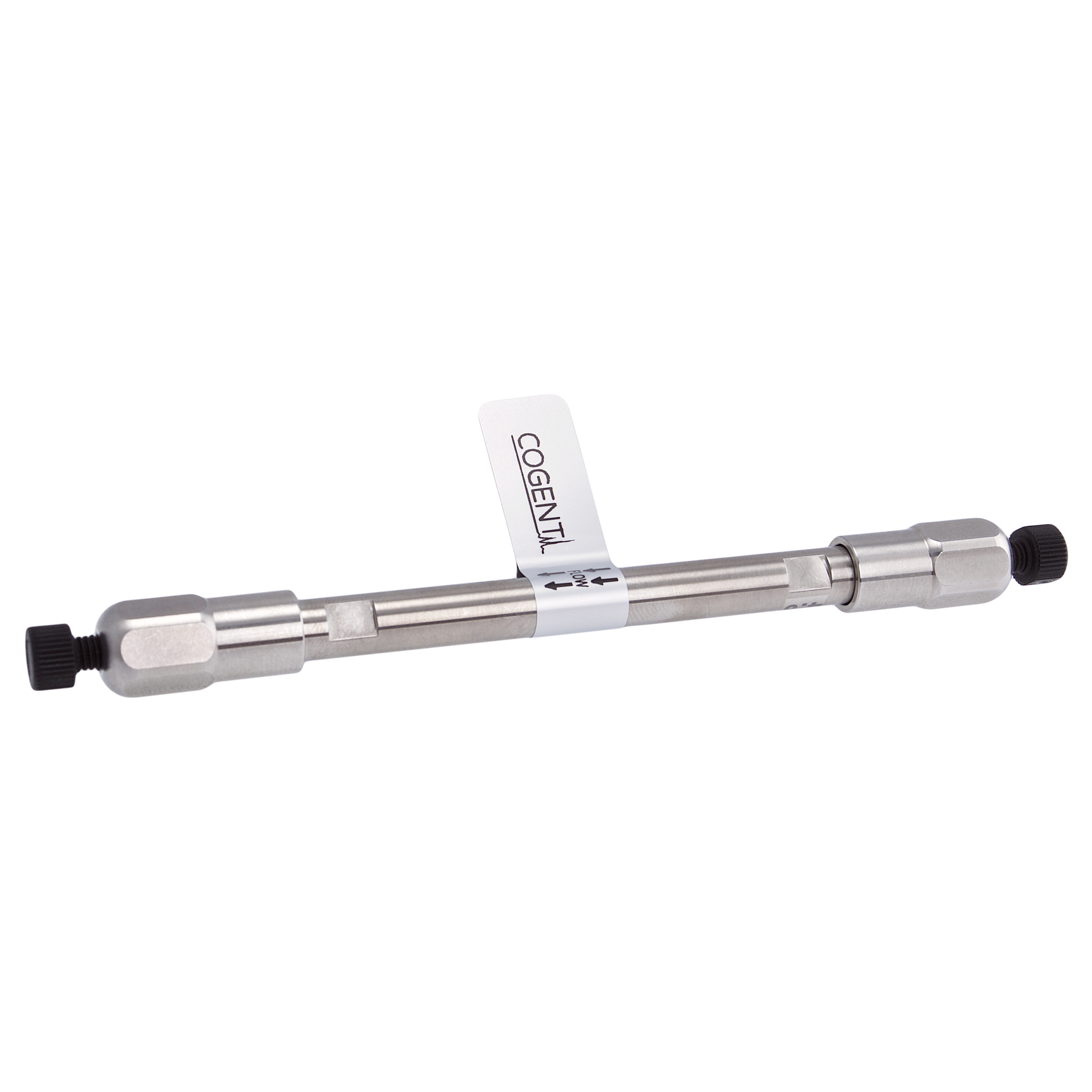

82361-10P is packed with 3 µm NP Silica™ particles in a 4.6 mm ID x 100 mm analytical format. The 100 mm column length provides an excellent balance of chromatographic resolution and analysis speed, making it well suited for routine analytical methods and method development. The 3 µm particle size delivers higher chromatographic efficiency and sharper peak shapes than comparable 5 µm columns, although increased operating backpressure should be expected.

NP Silica™ is commonly used for hydrophilic and polar compounds in both HILIC and Normal Phase chromatography. Because the stationary phase is completely unmodified, it provides the classic selectivity associated with bare silica and is often selected for established USP methods, method transfer projects, and applications requiring strong polar interactions. The 100 mm length offers an excellent balance of retention, efficiency, and throughput for routine analytical workflows.

Key Benefits

• NP Silica™ stationary phase

• USP L3 equivalent chemistry

• Ultra-high purity silica

• Low metal content silica

• Unmodified silica surface

• 3 µm particle size

• Higher efficiency than 5 µm particles

• Sharper peak shapes

• Suitable for HILIC separations

• Suitable for Normal Phase chromatography

Typical Applications

• USP L3 methods

• HILIC chromatography

• Normal Phase HPLC

• Polar compound analysis

• Hydrophilic compound analysis

• Pharmaceutical analysis

• Food and beverage testing

• Environmental analysis

• Method development

• Established silica-based methods

Specifications

• Product Type: Analytical HPLC Column

• Stationary Phase: NP Silica™

• USP Classification: L3

• Chromatography Modes: HILIC and Normal Phase

• Particle Size: 3 µm

• Pore Size: 100Å

• Column Dimensions: 4.6 mm ID x 100 mm

• Recommended Flow Rate: 1.0–2.0 mL/min

• Column Hardware: Stainless Steel

• Brand: Cogent

Important Notes

• Suitable for HILIC and Normal Phase chromatography

• USP L3 equivalent chemistry

• Unmodified silica stationary phase

• Designed for hydrophilic and polar compounds

• Low metal content, high-purity silica

• Provides higher efficiency than comparable 5 µm columns

• Generates higher operating backpressure than 5 µm particles

• Compatible with standard analytical HPLC systems capable of supporting 3 µm particle columns

• Frequently used for established silica-based methods

• Broad solvent compatibility

• 100 mm length provides an excellent balance of speed and resolution

  ---
