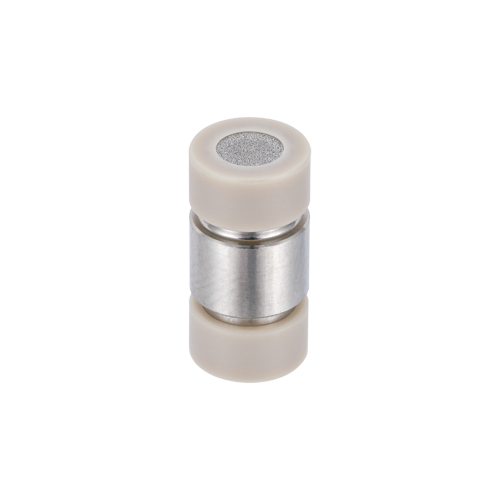

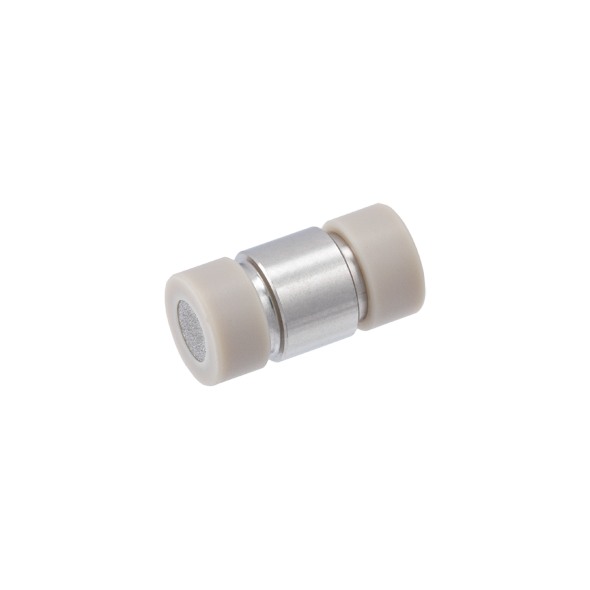

Guard Column Cartridges, NP Silica Wide Pore, 10um, 300A. 4.0mm ID x 10mm Length. Cogent Brand. 5/PK.
Additional Information:
Cogent NP Silica™ Wide Pore Guard Column Cartridges are designed to protect valuable analytical HPLC columns from particulate matter, strongly retained contaminants, and sample matrix components that can shorten column life and reduce chromatographic performance. Packed with ultra-high purity, low metal content, 300Å NP Silica™ Wide Pore that remains completely unmodified, these cartridges provide the same chromatographic selectivity as the analytical column they protect while helping maintain method reproducibility and chromatographic efficiency.
82061-PG2-3 is packed with 10 µm NP Silica™ Wide Pore particles in a 4.0 mm ID x 10 mm guard cartridge format. The 300Å pore structure provides improved accessibility for proteins, peptides, biomolecules, and other large molecular weight compounds. Designed for use with 3.0 mm, 4.0 mm, and 4.6 mm ID NP Silica™ analytical columns, these guard cartridges are housed in stainless steel tubes with stainless steel frits pressed into durable PEEK frit caps for dependable operation and column protection.
Regular guard cartridge replacement can significantly reduce operating costs while protecting valuable analytical columns used in HILIC and Normal Phase chromatography. These guard cartridges are particularly beneficial when analyzing complex biological, pharmaceutical, and research samples where contaminants and strongly retained compounds can adversely affect column performance and longevity.
Key Benefits
NP Silica™ Wide Pore stationary phase
USP L3 equivalent chemistry
Ultra-high purity silica
Low metal content silica
Unmodified silica surface
300Å wide pore design
10 µm particle size
Protects analytical columns from contamination
Helps extend analytical column life
Maintains chromatographic performance
Typical Applications
Analytical HPLC
Protein analysis
Peptide analysis
Biomolecule separations
Large molecule analysis
HILIC chromatography
Normal Phase chromatography
Pharmaceutical analysis
Method development
Column protection
Specifications
Product Type: Guard Column Cartridge
Stationary Phase: NP Silica™ Wide Pore
USP Classification: L3
Chromatography Modes: HILIC and Normal Phase
Particle Size: 10 µm
Pore Size: 300Å
Cartridge Dimensions: 4.0 mm ID x 10 mm
Cartridge Material: Stainless Steel
Frit Material: Stainless Steel with PEEK Frit Caps
Compatible Column IDs: 3.0 mm, 4.0 mm, and 4.6 mm
Pack Size: 5/PK
Brand: Cogent
Guard Column Holder Required
Important Notes
Suitable for HILIC and Normal Phase chromatography
USP L3 equivalent stationary phase
Unmodified silica surface chemistry
Manufactured from ultra-high purity, low metal content silica
300Å wide pore structure provides improved accessibility for proteins, peptides, and other large molecules
Designed to protect NP Silica™ Wide Pore analytical columns from particulates and strongly retained contaminants
Helps extend analytical column service life
Maintains chromatographic performance and reproducibility
Recommended for routine analytical and method development applications
Compatible with 3.0 mm, 4.0 mm, and 4.6 mm ID NP Silica™ Wide Pore analytical columns
Requires the Cogent Guard Column Holder for 3.0 mm, 4.0 mm, and 4.6 mm ID Guard Column Cartridges (83000-GH)
Packaged as 5 guard cartridges per package
