Catalog Number - 68540-PG2

Cogent NP Amino™ Guard Column Cartridges are designed to protect valuable analytical HPLC columns from particulate contamination and strongly retained compounds that can reduce column performance and shorten column life. Packed with the same NP Amino™ stationary phase as the corresponding analytical columns, these guard cartridges help maintain chromatographic performance while reducing replacement costs and instrument downtime.

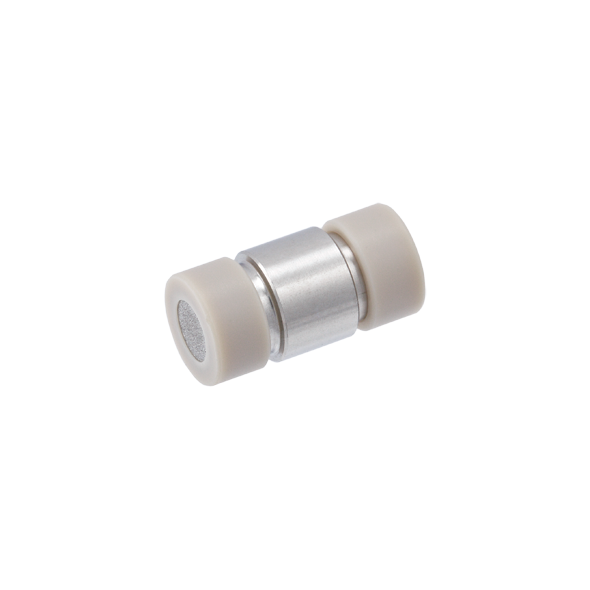

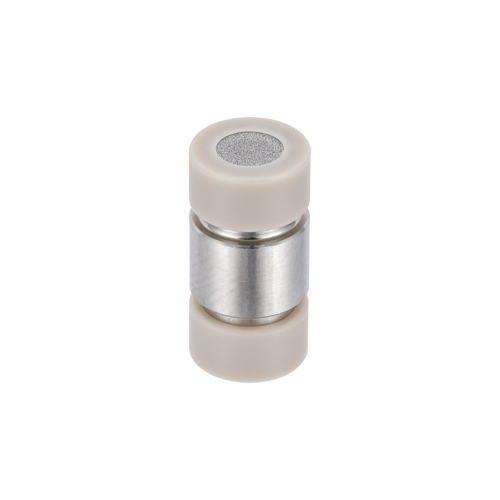

68540-PG2 is packed with 5 µm NP Amino™ particles in a 4.0 mm ID x 10 mm guard cartridge format with a 100Å pore size. Manufactured using a three-carbon propyl ligand containing a terminal amino functional group bonded to the highest purity silica available, this stationary phase is not end capped and provides the same selectivity characteristics as Cogent NP Amino™ analytical columns. Each cartridge is packed in a stainless steel tube and fitted with stainless steel frits pressed into durable PEEK frit caps for reliable performance and long service life.

Designed to protect 3.0 mm, 4.0 mm, and 4.6 mm ID NP Amino™ analytical columns, these guard cartridges capture particulates and strongly adsorbed contaminants before they reach the analytical column. They are especially useful for HILIC and Normal Phase separations involving sugars, compounds containing carboxylic acid groups, and other highly polar analytes. Routine guard cartridge replacement can significantly extend analytical column life while maintaining reproducible chromatographic performance.

Key Benefits

• NP Amino™ stationary phase

• Propyl amino bonded silica

• Not end capped

• 100Å pore size

• 5 µm particle size

• Protects analytical columns from contamination

• Extends analytical column lifetime

• Stainless steel cartridge construction

• Stainless steel frits with PEEK frit caps

• Compatible with 3.0 mm, 4.0 mm, and 4.6 mm ID columns

Typical Applications

• Analytical HPLC

• HILIC chromatography

• Normal Phase chromatography

• Sugar analysis

• Carbohydrate analysis

• Organic acid analysis

• Polar compound separations

• Method development

• Column protection

• Sample cleanup applications

Specifications

• Product Type: Guard Column Cartridge

• Stationary Phase: NP Amino™

• Chromatography Mode: Normal Phase / HILIC

• Particle Size: 5 µm

• Pore Size: 100Å

• Cartridge Dimensions: 4.0 mm ID x 10 mm

• Cartridge Material: Stainless Steel

• Frit Material: Stainless Steel with PEEK Frit Caps

• Package Quantity: 5 Cartridges

• Compatible Column Sizes: 3.0 mm, 4.0 mm, and 4.6 mm ID Analytical Columns

• Brand: Cogent

Required Guard Column Holder

• Requires the Cogent Guard Column Holder (Catalog Number 83000-GH) for installation and use.

• The Cogent Guard Column Holder must be purchased separately unless already available in your laboratory.

• Designed for use with Cogent analytical guard column cartridges.

Important Notes

• Designed to protect 3.0 mm, 4.0 mm, and 4.6 mm ID NP Amino™ analytical columns

• Suitable for Normal Phase chromatography

• Suitable for HILIC applications

• Ideal for sugars and other polar compounds

• Propyl amino bonded stationary phase

• Helps prevent contamination of analytical columns

• Extends column service life and reduces operating costs

• Requires the Cogent Guard Column Holder (83000-GH)

• Five guard cartridges per package

• Intended for analytical HPLC workflows

  ---
