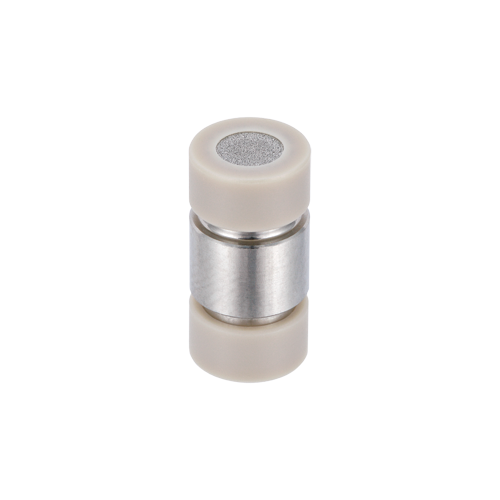

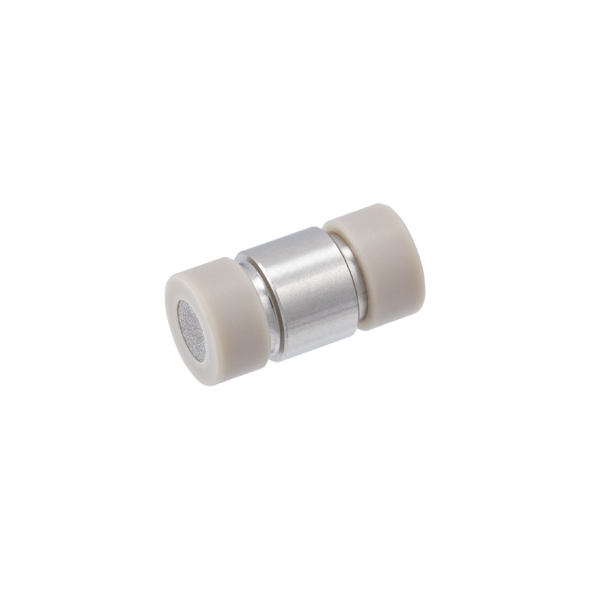

Guard Column Cartridges, RP Cyano Wide Pore, 5um, 300A. 4.0mm ID x 10mm Length. Cogent Brand. 5/PK.
Additional Information:
Cogent RP Cyano™ Wide Pore Guard Column Cartridges are designed to protect analytical HPLC columns from particulates, strongly retained compounds, and other contaminants that can reduce column performance and shorten column life. Packed with the same stationary phase as the analytical column, these guard cartridges help maintain chromatographic performance while reducing the frequency and cost of analytical column replacement.
68534-PG2-3 is packed with 5 µm RP Cyano™ Wide Pore stationary phase featuring a 300Å pore size. Manufactured using ultra-high purity silica bonded with a three-carbon ligand and terminal Cyano functionality, this stationary phase is not end capped and provides the distinctive selectivity associated with USP L10 chemistry. The wide pore structure improves accessibility for larger molecules while maintaining the unique separation characteristics of RP Cyano™ chemistry. The cartridges are packed and shipped in reversed-phase solvents and housed in stainless steel tubing with stainless steel frits secured within durable PEEK frit caps.
The 4.0 mm ID x 10 mm format is designed to protect 3.0 mm, 4.0 mm, and 4.6 mm ID RP Cyano™ Wide Pore analytical HPLC columns from particulate contamination and strongly retained sample components. Routine guard cartridge replacement helps maintain column efficiency, reduce downtime, and extend analytical column service life.
Key Benefits
RP Cyano™ Wide Pore stationary phase
USP L10 equivalent chemistry
Ultra-high purity silica support
Not end capped
Three-carbon linker with terminal Cyano group
300Å pore size
Suitable for reversed-phase chromatography
Protects analytical columns from contamination
Extends analytical column life
Enhanced accessibility for larger molecules
Typical Applications
Analytical HPLC
LC-MS methods
Column protection
Protein analysis
Peptide separations
Enzyme analysis
Natural product analysis
Polar compound separations
Alternative selectivity methods
Routine guard cartridge replacement
Specifications
Product Type: Guard Column Cartridges
Stationary Phase: RP Cyano™ Wide Pore
Chromatography Mode: Reversed Phase
USP Classification: L10
Particle Size: 5 µm
Pore Size: 300Å
Cartridge Dimensions: 4.0 mm ID x 10 mm
Construction: Stainless Steel Cartridge
Frit Material: Stainless Steel with PEEK Frit Caps
Quantity: 5/PK
Brand: Cogent
Guard Column Requirements
A 83000-GH Guard Column Holder is required for use with these guard column cartridges.
Designed for use with compatible Cogent RP Cyano™ Wide Pore 3.0 mm, 4.0 mm, and 4.6 mm ID analytical HPLC columns.
Important Notes
Suitable for reversed-phase chromatography
USP L10 equivalent chemistry
Not end capped
Wide pore structure improves accessibility for proteins, peptides, and other large molecules
Designed to protect RP Cyano™ Wide Pore analytical columns from particulates and strongly retained contaminants
Helps extend analytical column life and maintain chromatographic performance
Compatible with 3.0 mm, 4.0 mm, and 4.6 mm ID analytical columns
Requires a compatible Guard Column Holder
Packed and shipped in reversed-phase solvents
Intended for routine replacement as part of preventive maintenance
