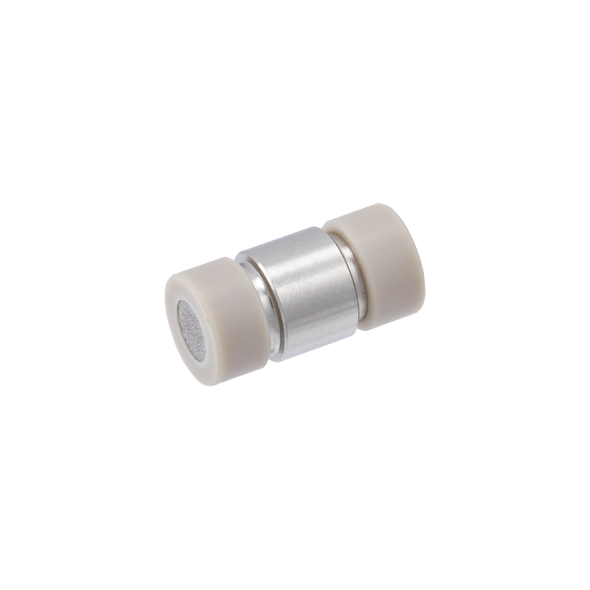

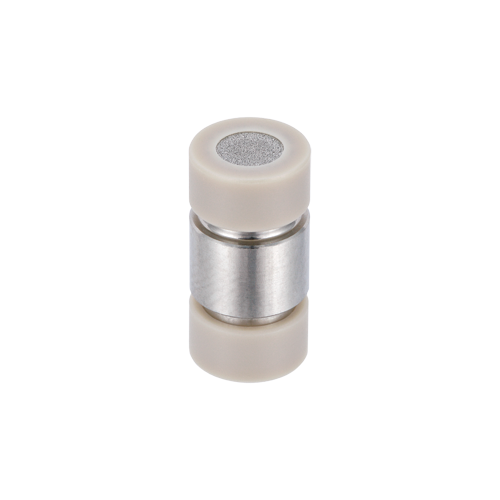

Guard Column Cartridges, RP Phenyl, Wide Pore, 5um, 300A. 4.0mm ID x 10mm Length. Cogent Brand. 5/PK.
Additional Information:
Cogent RP Phenyl™ Wide Pore Guard Column Cartridges are designed to protect analytical HPLC columns from particulates, strongly retained compounds, and other contaminants that can reduce column performance and shorten column lifetime. Packed with the same stationary phase as the analytical column, these guard cartridges help maintain chromatographic performance while reducing the cost and frequency of analytical column replacement.
68524-PG2-3 is packed with 5 µm RP Phenyl™ Wide Pore stationary phase featuring a 300Å pore size. Manufactured using ultra-high purity silica with a traditional three-carbon linker and terminal Phenyl functionality, this phase is fully double end-capped to minimize secondary interactions and provide highly reproducible chromatographic performance. The wide pore structure improves accessibility for larger molecules while maintaining the aromatic selectivity characteristic of RP Phenyl™ chemistry. The cartridges are housed in stainless steel tubes and utilize stainless steel frits secured within durable PEEK frit caps for reliable operation and long service life.
The 4.0 mm ID x 10 mm format is designed to protect 3.0 mm, 4.0 mm, and 4.6 mm ID RP Phenyl™ Wide Pore analytical HPLC columns from particulate contamination and strongly retained sample components. Routine guard cartridge replacement helps maintain column efficiency, minimize downtime, and extend analytical column service life.
Key Benefits
RP Phenyl™ Wide Pore stationary phase
USP L11 equivalent chemistry
Ultra-high purity silica support
Fully double end-capped
Phenyl bonded phase
300Å pore size
Suitable for reversed-phase chromatography
Protects analytical columns from contamination
Extends analytical column lifetime
Stainless steel cartridge construction with PEEK frit caps
Typical Applications
Analytical HPLC
Column protection
Peptide analysis
Large molecule separations
Natural product analysis
Active pharmaceutical ingredient (API) analysis
LC-MS methods
Method development
Routine quality control testing
Guard cartridge replacement
Specifications
Product Type: Guard Column Cartridges
Stationary Phase: RP Phenyl™ Wide Pore
Chromatography Mode: Reversed Phase
USP Classification: L11
Particle Size: 5 µm
Pore Size: 300Å
Cartridge Dimensions: 4.0 mm ID x 10 mm
Construction: Stainless Steel Cartridge
Frit Material: Stainless Steel with PEEK Frit Caps
Quantity: 5/PK
Brand: Cogent
Guard Column Requirements
A 83000-GH Guard Column Holder | MICROSOLV is required for use with these guard column cartridges.
Designed for use with compatible Cogent RP Phenyl™ Wide Pore 3.0 mm, 4.0 mm, and 4.6 mm ID analytical HPLC columns.
Important Notes
Suitable for reversed-phase chromatography
USP L11 equivalent chemistry
Fully double end-capped stationary phase
Wide pore design improves accessibility for larger molecules
Designed to protect RP Phenyl™ Wide Pore analytical columns from particulates and strongly retained contaminants
Helps extend analytical column lifetime and maintain chromatographic performance
Compatible with 3.0 mm, 4.0 mm, and 4.6 mm ID columns
Requires a compatible Guard Column Holder
Intended for routine replacement as part of preventive maintenance
