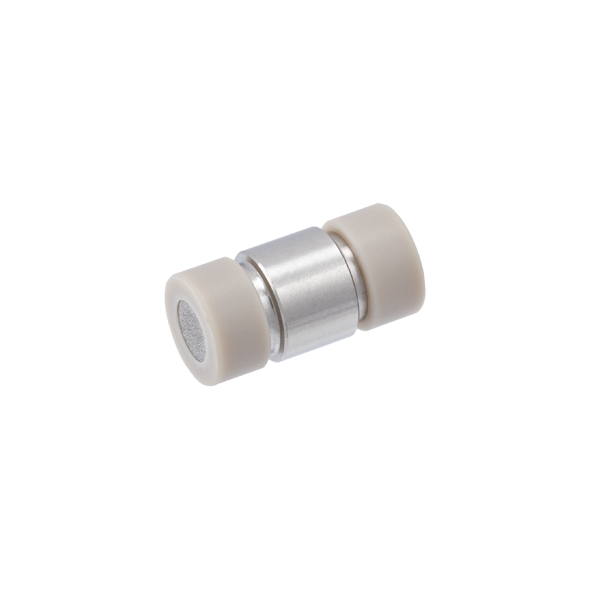

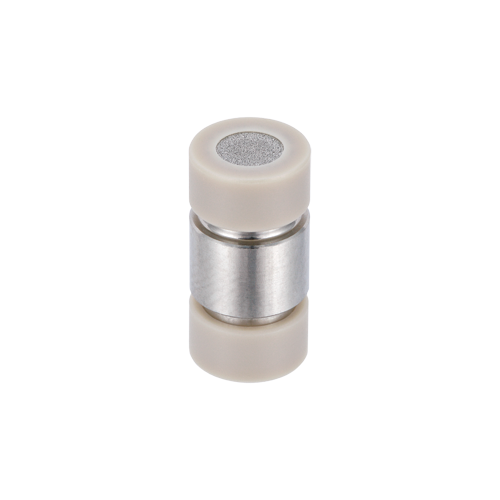

Guard Column Cartridges, RP C18 Wide Pore, 5um, 300A. 2.1mm ID x 10mm Length. Cogent Brand. 5/PK.
Additional Information:
Cogent RP C18™ Wide Pore Guard Column Cartridges are designed to protect valuable analytical HPLC columns from particulate matter, strongly retained contaminants, and sample matrix components that can shorten column life and reduce chromatographic performance. Packed with high-purity silica bonded with a traditional C18 (octadecyl) ligand and fully double end-capped chemistry, these guard cartridges provide the same chromatographic selectivity as the analytical column they protect while helping maintain method reproducibility and separation efficiency.
68518-PG1-3 is packed with 5 µm RP C18™ Wide Pore particles in a 2.1 mm ID x 10 mm guard cartridge format. The 300Å wide pore structure provides improved accessibility for proteins, peptides, biomolecules, and other larger molecular weight compounds. Designed specifically for use with 2.1 mm ID RP C18™ Wide Pore analytical columns, these guard cartridges are housed in stainless steel tubes with stainless steel frits pressed into durable PEEK frit caps for reliable performance and long service life.
Regular guard cartridge replacement can significantly reduce operating costs by protecting valuable analytical columns from contamination and premature failure. These guard cartridges are especially valuable for biopharmaceutical, protein, peptide, and other large molecule applications where protecting the analytical column helps maintain resolution, peak shape, and chromatographic reproducibility.
Key Benefits
RP C18™ Wide Pore stationary phase
USP L1 equivalent chemistry
Fully double end-capped
High-purity silica support
Traditional C18 bonded phase
300Å wide pore size
5 µm particle size
Protects analytical columns from contamination
Helps extend column life
Maintains chromatographic performance
Typical Applications
Analytical HPLC
Reversed-phase chromatography
Protein analysis
Peptide analysis
Biomolecule separations
Biopharmaceutical analysis
Method development
Quality control testing
Research laboratories
Column protection
Specifications
Product Type: Guard Column Cartridge
Stationary Phase: RP C18™ Wide Pore
USP Classification: L1
Chromatography Mode: Reversed Phase
Particle Size: 5 µm
Pore Size: 300Å
Cartridge Dimensions: 2.1 mm ID x 10 mm
Cartridge Material: Stainless Steel
Frit Material: Stainless Steel with PEEK Frit Caps
Pack Size: 5/PK
Brand: Cogent
Guard Column Holder Required
Important Notes
USP L1 equivalent stationary phase
Fully double end-capped C18 bonded phase
Manufactured using high-purity silica
300Å wide pore structure provides improved accessibility for proteins, peptides, and other large molecules
Designed to protect RP C18™ Wide Pore analytical columns from particulates and strongly retained contaminants
Helps extend analytical column service life
Maintains chromatographic performance and reproducibility
Recommended for protein, peptide, and biomolecule separations
Compatible with 2.1 mm ID RP C18™ Wide Pore analytical columns
Requires the Cogent Guard Column Holder (83200-GH)
Packaged as 5 guard cartridges per package
