Guard Column Cartridges, RP C18, 5um, 100A. 2.1mm ID x 10mm Length. Cogent Brand. 5/PK.
Additional Information:
Cogent RP C18™ Guard Column Cartridges are designed to protect valuable analytical HPLC columns from particulate matter, strongly retained contaminants, and sample matrix components that can shorten column life and reduce chromatographic performance. Packed with high-purity silica bonded with a traditional C18 (octadecyl) ligand and fully double end-capped chemistry, these guard cartridges provide the same chromatographic selectivity as the analytical column they protect while helping maintain method reproducibility and separation efficiency.

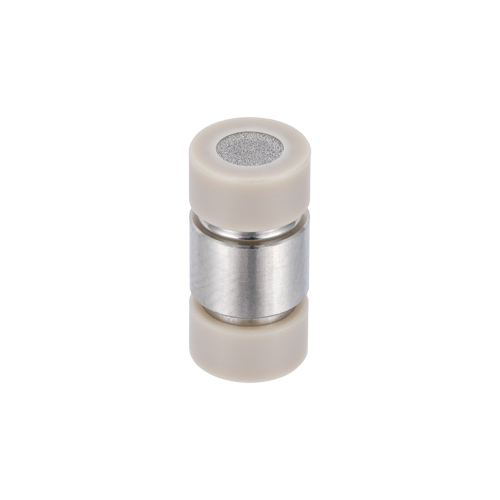

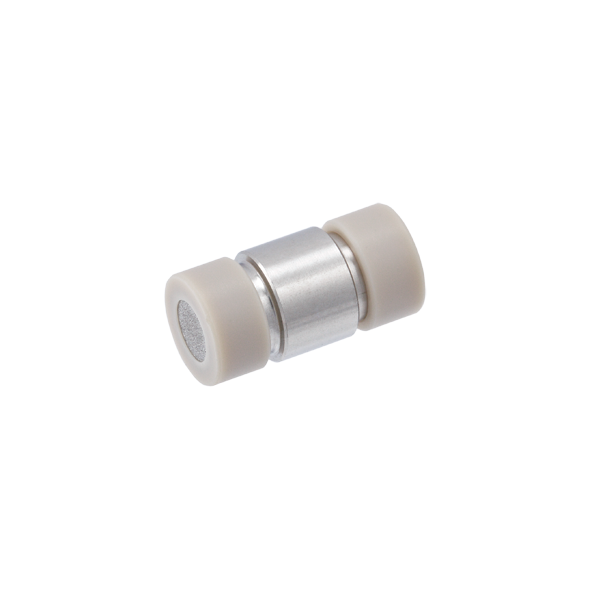

68518-PG1 is packed with 5 µm RP C18™ particles in a 2.1 mm ID x 10 mm guard cartridge format. Designed specifically for use with 2.1 mm ID RP C18™ analytical columns, these guard cartridges are housed in stainless steel tubes with stainless steel frits pressed into durable PEEK frit caps. They capture particulates and strongly retained compounds before they reach the analytical column, helping preserve column performance and extend service life.
Regular guard cartridge replacement can significantly reduce operating costs by protecting valuable analytical columns from contamination and premature failure. These guard cartridges are ideal for pharmaceutical, environmental, food, biotechnology, clinical, and research laboratories that require reliable reversed-phase HPLC performance and maximum column longevity.
Key Benefits
RP C18™ stationary phase
USP L1 equivalent chemistry
Fully double end-capped
High-purity silica support
Traditional C18 bonded phase
100Å pore size
5 µm particle size
Protects analytical columns from contamination
Helps extend column life
Maintains chromatographic performance
Typical Applications
Analytical HPLC
Reversed-phase chromatography
Pharmaceutical analysis
Environmental testing
Food analysis
Biotechnology applications
Clinical research
Method development
Quality control testing
Column protection
Specifications
Product Type: Guard Column Cartridge
Stationary Phase: RP C18™
USP Classification: L1
Chromatography Mode: Reversed Phase
Particle Size: 5 µm
Pore Size: 100Å
Cartridge Dimensions: 2.1 mm ID x 10 mm
Cartridge Material: Stainless Steel
Frit Material: Stainless Steel with PEEK Frit Caps
Pack Size: 5/PK
Brand: Cogent
Guard Column Holder Required
Important Notes
USP L1 equivalent stationary phase
Fully double end-capped C18 bonded phase
Manufactured using high-purity silica
Designed to protect RP C18™ analytical columns from particulates and strongly retained contaminants
Helps extend analytical column service life
Maintains chromatographic performance and reproducibility
Recommended for routine analytical and method development applications
Compatible with 2.1 mm ID RP C18™ analytical columns
Requires the Cogent Guard Column Holder (83200-GH)
Packaged as 5 guard cartridges per package
