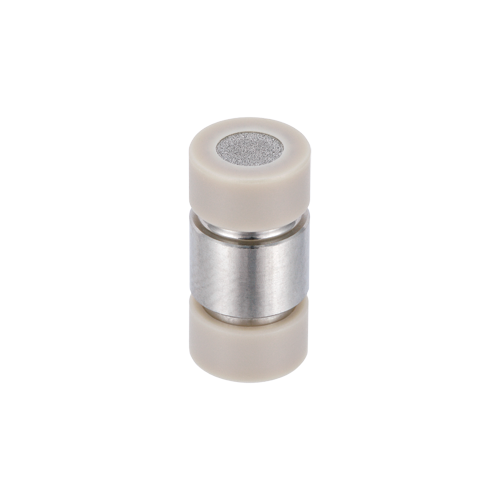

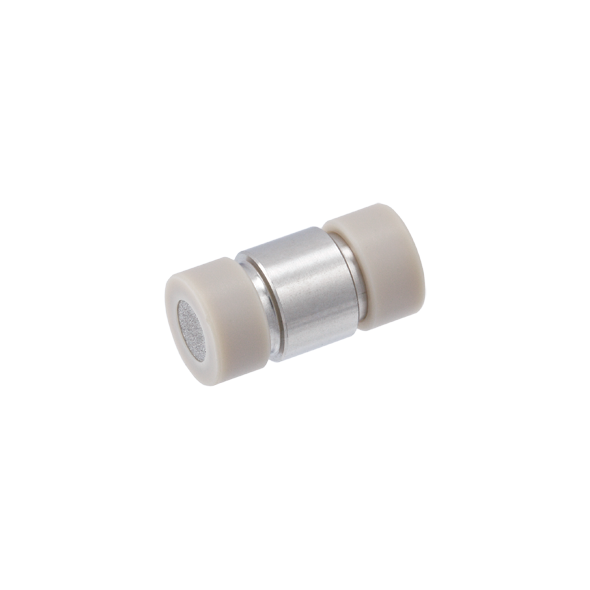

Guard Column Cartridges, RP Phenyl, Wide Pore, 10um, 300A. 4.0mm ID x 10mm Length. Cogent Brand. 5/PK.
Additional Information:
Cogent RP Phenyl Wide Pore Guard Column Cartridges are packed with the same C3-phenyl bonded stationary phase used in Cogent RP Phenyl Wide Pore analytical columns. Manufactured with high-purity silica and exhaustive double endcapping, these cartridges provide aromatic selectivity through π-π interactions while helping maintain consistent chromatographic performance throughout the life of the analytical column.
68024-PG2-3 is a guard column cartridge packed with 10 µm RP Phenyl Wide Pore particles featuring a 300 Å pore size in a 4.0 mm ID x 10 mm format. Installed ahead of the analytical column, the cartridge captures particulates, strongly retained contaminants, and sample matrix components before they reach the analytical bed. This protection helps preserve column efficiency, improve reproducibility, and extend analytical column lifetime.
The 300 Å wide pore design is particularly suitable for larger molecules, peptides, proteins, and other high molecular weight analytes. These cartridges are designed for use with 3.0 mm, 4.0 mm, and 4.6 mm ID Cogent RP Phenyl Wide Pore analytical columns. Each cartridge is packed in a stainless steel tube and fitted with stainless steel frits in PEEK end caps for durability and reliable performance.
Key Benefits
RP Phenyl Wide Pore stationary phase
C3-phenyl bonded chemistry
Strong π-π interaction selectivity
300 Å pore size for larger molecules and peptides
High-purity silica support
Fully double endcapped
Helps protect analytical columns from contaminants and particulates
Maintains chromatographic performance
Stainless steel cartridge construction
Extends analytical column service life
Typical Applications
Analytical HPLC
LC-MS methods
Peptide analysis
Protein and biomolecule separations
Pharmaceutical analysis
Aromatic compound separations
Method development
Quality control testing
Column protection
Sample cleanup prior to analytical separation
Specifications
Product Type: Guard Column Cartridges
Stationary Phase: RP Phenyl Wide Pore
Chromatography Mode: Reversed Phase
Bonded Phase: C3-Phenyl
Endcapping: Fully Double Endcapped
Particle Size: 10 µm
Pore Size: 300 Å
Cartridge Dimensions: 4.0 mm ID x 10 mm
Hardware Material: Stainless Steel
Frit Material: Stainless Steel
End Caps: PEEK
Quantity: 5/PK
Brand: Cogent
Guard Column Holder Requirement
A Cogent Guard Column Holder is required for use with these guard cartridges.
Additional Resources
Important Notes
Designed for use with 3.0 mm, 4.0 mm, and 4.6 mm ID RP Phenyl Wide Pore analytical columns
Wide pore design improves accessibility for larger molecules and peptides
Matching stationary phase chemistry helps maintain chromatographic selectivity
Recommended for routine analytical HPLC and LC-MS workflows
