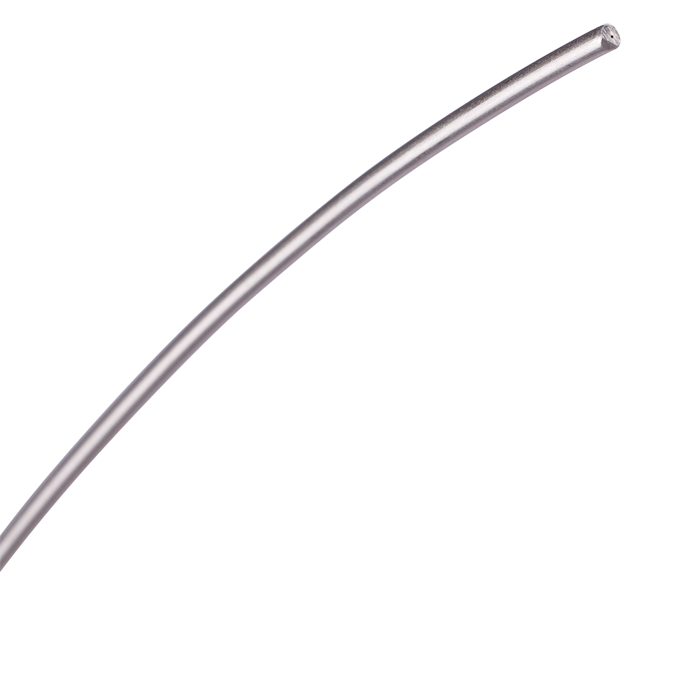

Tubing, Stainless Steel, 0.007 inch (0.18 mm) ID, 1/16 inch (1.60 mm) OD, HPLC grade, 10 meter roll, ARE-Applied Research brand. 1 EA.
Additional Information:
ARE-Applied Research HPLC Grade Stainless Steel tubing is manufactured from high-purity 316L stainless steel and is designed for demanding high-pressure liquid chromatography applications. Welded and annealed for consistent performance, this tubing is manufactured and tested according to EN 10217-7 standards, providing the strength, dimensional accuracy, and reliability required for modern analytical laboratories.
49407-COIL-10M is supplied as a 10-meter continuous coil with a 0.007 inch (0.18 mm) internal diameter and a 1/16 inch (1.60 mm) outer diameter. The narrow internal diameter helps minimize extra-column volume and maintain chromatographic efficiency while providing efficient fluid transfer in HPLC and UHPLC systems. This tubing is ideal for constructing custom fluid paths, detector connections, system optimization, and other analytical configurations where low dispersion and high-pressure performance are critical.
The corrosion-resistant 316L stainless steel construction provides excellent compatibility with a wide range of chromatographic mobile phases while delivering exceptional mechanical strength. With a maximum pressure rating of 20,900 psi (1,441.00 bar) and a maximum operating temperature of 400°C, this tubing is suitable for demanding high-pressure chromatography environments.
Key Benefits
HPLC-grade 316L stainless steel construction
Manufactured and tested to EN 10217-7 standards
Low internal volume design for chromatographic efficiency
Maximum pressure rating of 20,900 psi (1,441.00 bar)
Excellent corrosion resistance
Suitable for custom fluid pathways
High temperature resistance up to 400°C
Durable welded and annealed construction
Typical Applications
HPLC systems
UHPLC systems
High-pressure chromatography
Detector connections
Custom fluid pathways
Analytical instrumentation
Low-volume sample transport
System optimization applications
Specifications
Product Type: Stainless Steel Tubing
Material: 316L Stainless Steel
Internal Diameter: 0.007 in. (0.18 mm)
Outer Diameter: 1/16 in. (1.60 mm)
Length: 10 Meters
Configuration: Continuous Coil
Maximum Pressure: 20,900 psi (1,441.00 bar)
Maximum Temperature: 400°C
Wall Thickness: 0.706 mm
Manufacturing Standard: EN 10217-7
Dimensional Tolerance: ±0.05 mm
Brand: ARE-Applied Research
Resources
Important Notes
Designed for HPLC and UHPLC applications
Welded and annealed stainless steel construction
Low-volume 0.007 inch ID tubing
Manufactured from corrosion-resistant 316L stainless steel
Maximum pressure rating of 20,900 psi
Maximum operating temperature of 400°C
Precision dimensional tolerances of ±0.05 mm
Suitable for high-pressure chromatography systems
