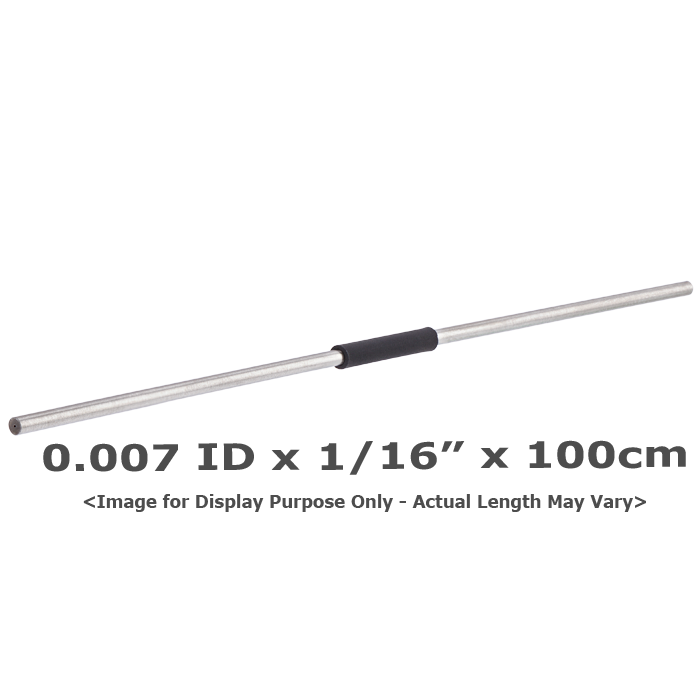

Tubing, Stainless Steel, Pre-Cut, 0.007 inch (0.18 mm) ID, 1/16 inch (1.60 mm) OD, HPLC grade, black band, 100 cm long. ARE-Applied Research brand. 1 EA.
Additional Information:
ARE-Applied Research HPLC Grade Pre-Cut Stainless Steel tubing is manufactured from high-purity 316L stainless steel and designed for high-pressure chromatography applications where precision connections are critical. Producing square, burr-free tubing cuts in the laboratory can be difficult and time-consuming, often leading to dead volume, leaks, or compromised chromatographic performance. These pre-cut tubing assemblies eliminate those concerns by providing professionally prepared tubing lengths ready for installation.
49407-100 is a 100 cm pre-cut stainless steel tube with a 0.007 inch (0.18 mm) internal diameter and a 1/16 inch (1.60 mm) outer diameter. The narrow internal diameter is ideal for minimizing extra-column volume while maintaining efficient fluid transfer in HPLC and UHPLC systems. The black identification band provides quick visual confirmation of the 0.007 inch internal diameter, simplifying installation and maintenance within complex chromatographic systems.
Manufactured from welded and annealed 316L stainless steel, each tube is cut using Electronic Discharge Cutting (EDC) technology to produce square, burr-free ends that support true zero dead volume connections. Tubing is manufactured and tested according to EN 10217-7 standards for quality, consistency, and reliability in demanding analytical laboratory environments.
Key Benefits
Precision pre-cut tubing eliminates manual cutting
Electronic Discharge Cutting (EDC) provides square, burr-free ends
Supports zero dead volume connections
Black band identification for 0.007 inch ID tubing
HPLC-grade 316L stainless steel construction
Manufactured and tested to EN 10217-7 standards
Excellent corrosion resistance
Ideal for analytical chromatography applications
Typical Applications
HPLC systems
UHPLC systems
Injector-to-column connections
Detector connections
Analytical fluid pathways
Method development systems
High-pressure chromatography applications
System optimization and replacement tubing
Specifications
Product Type: Pre-Cut Stainless Steel Tubing
Material: 316L Stainless Steel
Internal Diameter: 0.007 in. (0.18 mm)
Outer Diameter: 1/16 in. (1.60 mm)
Length: 100 cm
Color Code: Black Band
Wall Thickness: 0.706 mm
Manufacturing Standard: EN 10217-7
Cutting Method: Electronic Discharge Cutting (EDC)
Dimensional Tolerance: ±0.05 mm
Brand: ARE-Applied Research
Important Notes
Ready-to-install pre-cut tubing
Square, burr-free ends for improved connections
Supports zero dead volume fitting assemblies
Black band identifies 0.007 inch internal diameter
Manufactured from corrosion-resistant 316L stainless steel
Suitable for HPLC and UHPLC applications
Manufactured and tested to EN 10217-7 standards
