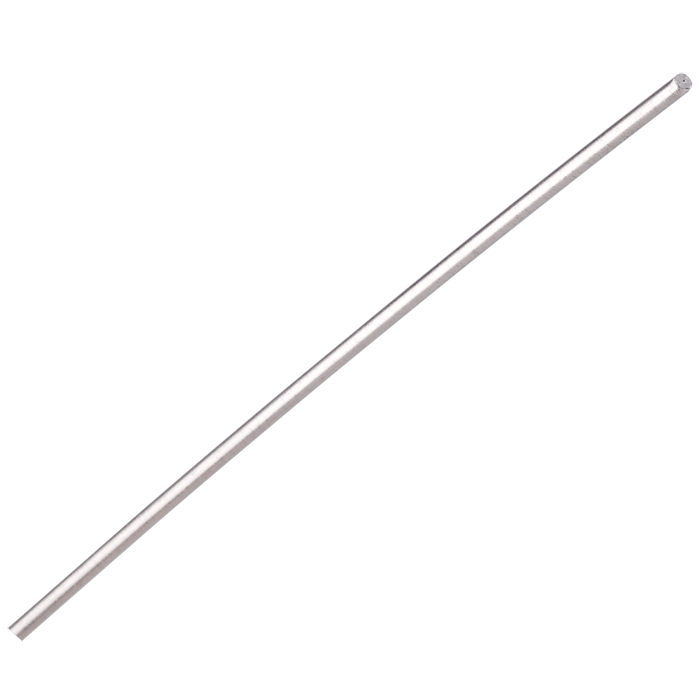

Tubing, Stainless Steel, 0.005 inch (0.13 mm) ID, 1/16 inch (1.60 mm) OD, HPLC grade, 10 meter roll, ARE-Applied Research brand. 1 EA.
Additional Information:
ARE-Applied Research HPLC Grade Stainless Steel tubing is manufactured from high-purity 316L stainless steel and is designed for demanding high-pressure liquid chromatography applications. Welded and annealed for consistent performance, this tubing is manufactured and tested according to EN 10217-7 standards, providing the strength, dimensional accuracy, and reliability required for modern analytical laboratories.
49405-COIL-10M is supplied as a 10-meter continuous coil with a 0.005 inch (0.13 mm) internal diameter and a 1/16 inch (1.60 mm) outer diameter. The extremely small internal diameter minimizes system volume and dispersion, making it ideal for HPLC and UHPLC applications where preserving chromatographic efficiency and minimizing extra-column effects are critical. This tubing is commonly used for custom fluid paths, detector connections, system optimization, and other high-performance analytical applications.
The corrosion-resistant 316L stainless steel construction provides excellent compatibility with a wide range of chromatographic mobile phases while delivering exceptional mechanical strength. With a maximum pressure rating of 21,600 psi (1489.27 bar) and a maximum operating temperature of 400°C, this tubing is suitable for demanding high-pressure chromatography environments.
Key Benefits
HPLC-grade 316L stainless steel construction
Manufactured and tested to EN 10217-7 standards
Ultra-low internal volume design
Maximum pressure rating of 21,600 psi (1489.27 bar)
Excellent corrosion resistance
Suitable for custom fluid pathways
High temperature resistance up to 400°C
Durable welded and annealed construction
Typical Applications
HPLC systems
UHPLC systems
High-pressure chromatography
Detector connections
Custom fluid pathways
Analytical instrumentation
Low-volume sample transport
System optimization applications
Specifications
Product Type: Stainless Steel Tubing
Material: 316L Stainless Steel
Internal Diameter: 0.005 in. (0.13 mm)
Outer Diameter: 1/16 in. (1.60 mm)
Length: 10 Meters
Configuration: Continuous Coil
Maximum Pressure: 21,600 psi (1489.27 bar)
Maximum Temperature: 400°C
Wall Thickness: 0.732 mm
Manufacturing Standard: EN 10217-7
Dimensional Tolerance: ±0.05 mm
Brand: ARE-Applied Research
Resources
Important Notes
Designed for HPLC and UHPLC applications
Welded and annealed stainless steel construction
Ultra-low volume 0.005 inch ID tubing
Manufactured from corrosion-resistant 316L stainless steel
Maximum pressure rating of 21,600 psi
Maximum operating temperature of 400°C
Precision dimensional tolerances of ±0.05 mm
Suitable for high-pressure chromatography systems
