Tubing, ETFE, 1/16th inch (1.6 mm) ID, 1/8th inch (3.2 mm) OD, low pressure, 5 meter roll, ARE-Applied Research brand. 1 EA.
Additional Information:
ARE-Applied Research ETFE (Ethylene Tetrafluoroethylene), commonly known by the trade name Tefzel™, tubing is manufactured from virgin ETFE resin without the use of processing additives. ETFE tubing is widely used in low-pressure laboratory fluid handling applications due to its excellent chemical resistance, low permeability, and mechanical durability. Compared to PTFE tubing, ETFE offers lower gas permeability while maintaining excellent compatibility with most laboratory solvents and reagents. ETFE is chemically inert except when used with certain halogenated compounds.

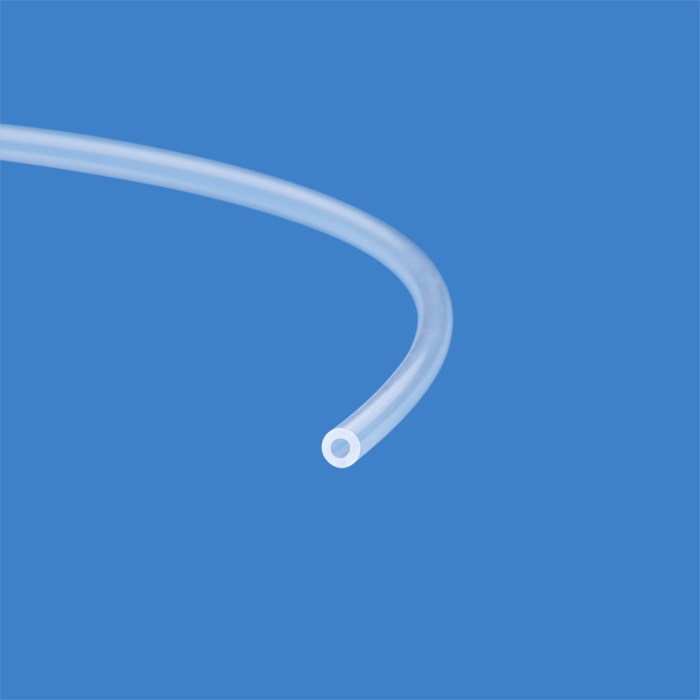

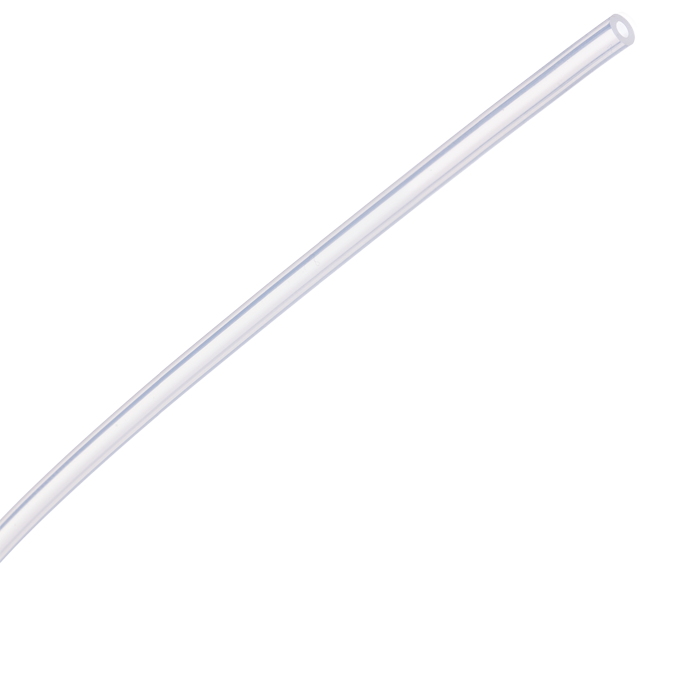

48555-65 is supplied as a convenient 5-meter roll of natural translucent ETFE tubing with a 1/16 inch (1.6 mm) internal diameter and 1/8 inch (3.2 mm) outer diameter. The larger internal diameter supports higher flow rates and greater fluid transfer volumes, making it well suited for solvent delivery, waste collection, reagent transfer, and general laboratory fluid handling applications. The thick wall construction provides durability and dependable performance with a pressure rating of 1000 psi (68.9 bar).
The translucent tubing wall allows visual monitoring of fluid movement and is suitable for use before and after HPLC pumps, including mobile phase delivery systems, solvent waste lines, reagent transport, and other low-pressure laboratory fluid pathways.
Key Benefits
Manufactured from virgin ETFE resin without additives
Low permeability compared to PTFE tubing
Excellent chemical resistance
Large internal diameter supports higher flow capacity
Thick wall construction provides added durability
Natural translucent tubing allows fluid visibility
Suitable for HPLC mobile phase delivery and waste systems
Reliable performance for laboratory fluid transfer applications
Typical Applications
HPLC mobile phase delivery
HPLC solvent waste systems
Laboratory fluid transfer
Reagent delivery systems
Solvent transfer applications
Sample transport lines
Process fluid handling
General laboratory fluid management
Specifications
Product Type: ETFE Tubing
Material: ETFE (Tefzel™)
Internal Diameter: 1/16 in. (1.6 mm)
Outer Diameter: 1/8 in. (3.2 mm)
Wall Thickness: 0.80 mm
Color: Natural, Translucent
Length: 5 Meters
Pressure Rating: 1000 psi (68.9 bar)
Dimensional Tolerance: ±0.10 mm
Brand: ARE-Applied Research
Additional Lengths
Custom Length Information
Custom cuts are available for applications requiring specific tubing lengths.
Important Notes
Low-pressure tubing application
Manufactured from virgin ETFE resin
Lower permeability than PTFE tubing
Suitable before and after HPLC pumps
Natural translucent tubing allows fluid visibility
Pressure rated to 1000 psi (68.9 bar)
Excellent chemical resistance
Not recommended for certain halogenated compounds
