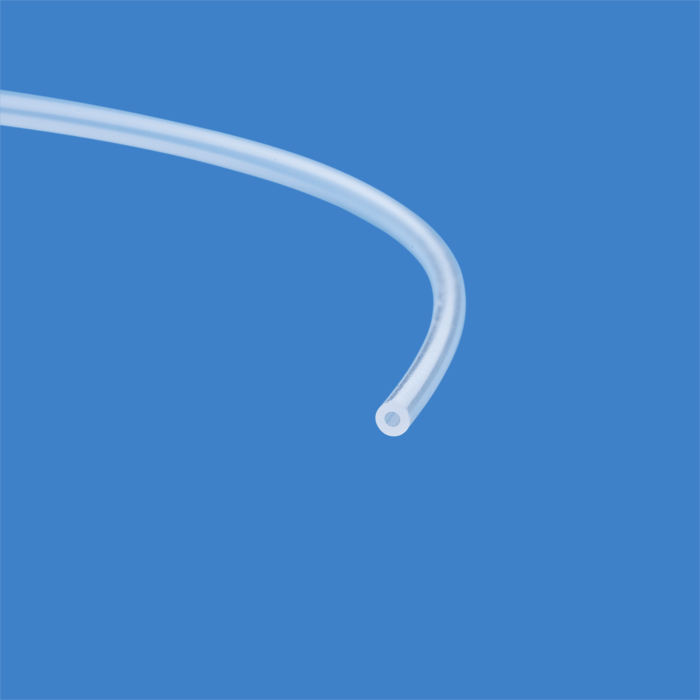

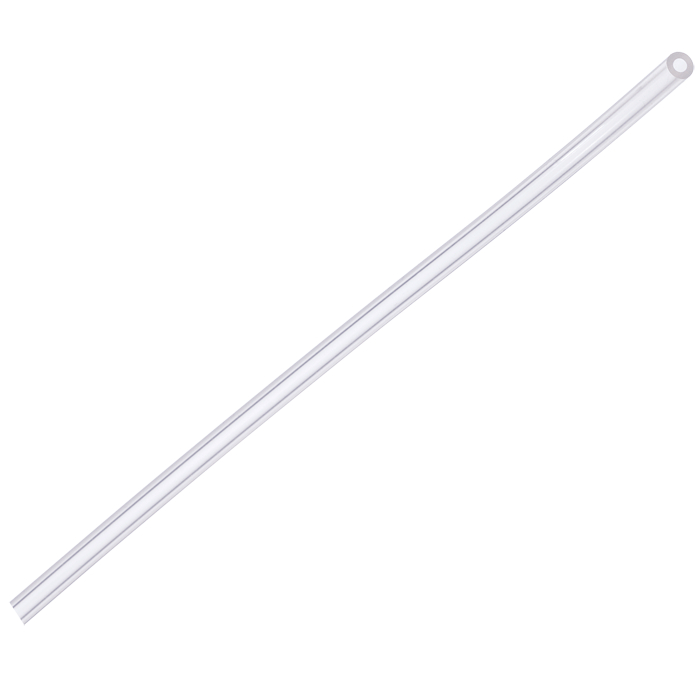

Tubing, PFA, 1/16th inch (1.6 mm) ID, 1/8th inch (3.2 mm) OD, low pressure, 5 meter roll, ARE-Applied Research brand. 1 EA.
Additional Information:
ARE-Applied Research PFA (Perfluoroalkyl) tubing is designed for low-pressure fluid transfer applications where excellent chemical resistance, high purity, and broad operating temperature capabilities are required. PFA tubing offers performance characteristics similar to PTFE (Teflon®) while providing lower permeability, greater transparency, and enhanced performance at elevated temperatures and pressures.
48335-65 is supplied as a convenient 5-meter roll of natural translucent PFA tubing with a 1/16 inch (1.6 mm) internal diameter and 1/8 inch (3.2 mm) outer diameter. The tubing is suitable for laboratory, analytical, and industrial applications requiring chemically inert fluid pathways and consistent dimensional tolerances.
PFA tubing combines excellent chemical resistance with visibility of fluid movement through the tubing wall. It is commonly used in HPLC systems, laboratory fluid handling, reagent transfer, and other applications where contamination resistance is critical.
Do not use this tubing at temperatures exceeding 260°C.
Key Benefits
PFA construction provides excellent chemical resistance
Lower permeability than traditional PTFE tubing
Greater transparency for visual monitoring of fluid flow
Suitable for elevated temperature applications up to 260°C
High-pressure capability for low-pressure laboratory applications
Consistent dimensional tolerances for reliable connections
Smooth internal surface helps promote efficient fluid transfer
RoHS compliant material construction
Typical Applications
HPLC fluid transfer
Laboratory fluid handling
Reagent delivery systems
Chemical transfer applications
Analytical instrumentation
Sample transport lines
General laboratory plumbing
Industrial fluid handling
Specifications
Product Type: PFA Tubing
Material: PFA (Perfluoroalkyl)
Internal Diameter: 1/16 in. (1.6 mm)
Outer Diameter: 1/8 in. (3.2 mm)
Wall Thickness: 0.80 mm
Color: Natural, Translucent
Length: 5 Meters
Pressure Rating: 1075 psi (74.1 bar)
Dimensional Tolerance: ±0.10 mm
Maximum Temperature: 260°C
Brand: ARE-Applied Research
Compliance: RoHS EU Directive 2011/65/EU and Amendment (EU) 2015/863
Available Lengths
Custom Length Information
Custom-cut lengths are available. Please contact Customer Service for custom tubing lengths and ordering assistance.
Important Notes
Low-pressure tubing application
Natural translucent tubing allows fluid visibility
Chemically resistant PFA construction
Do not exceed 260°C operating temperature
Pressure rated to 1075 psi (74.1 bar)
RoHS compliant
Suitable for analytical and laboratory fluid transfer applications
