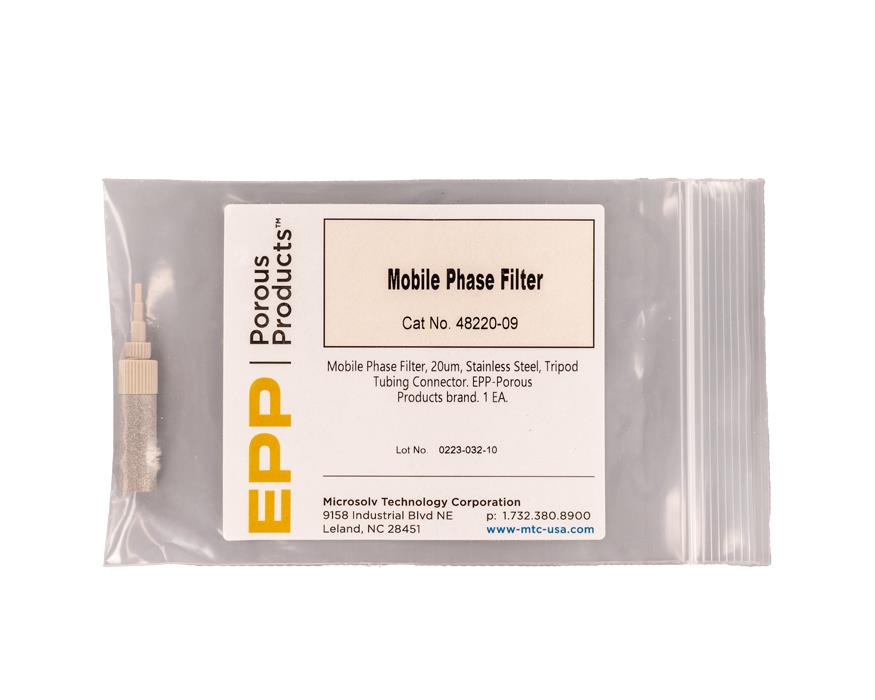

Catalog Number - 48220-09

The 48220-09 Mobile Phase Filter is a high-capacity 316L stainless steel solvent inlet filter engineered for efficient removal of large particulates and reliable solvent delivery in HPLC systems. Built for durability and high throughput, it protects pumps, columns, and instrumentation from contamination.

The 20 µm pore size removes larger undissolved particles while generating lower backpressure than 2 µm, 5 µm, or 10 µm filters, enabling improved solvent flow and vacuum efficiency.

Each filter is passivated with a 30% nitric acid treatment, enhancing corrosion resistance and ensuring compatibility with a wide range of HPLC solvents.

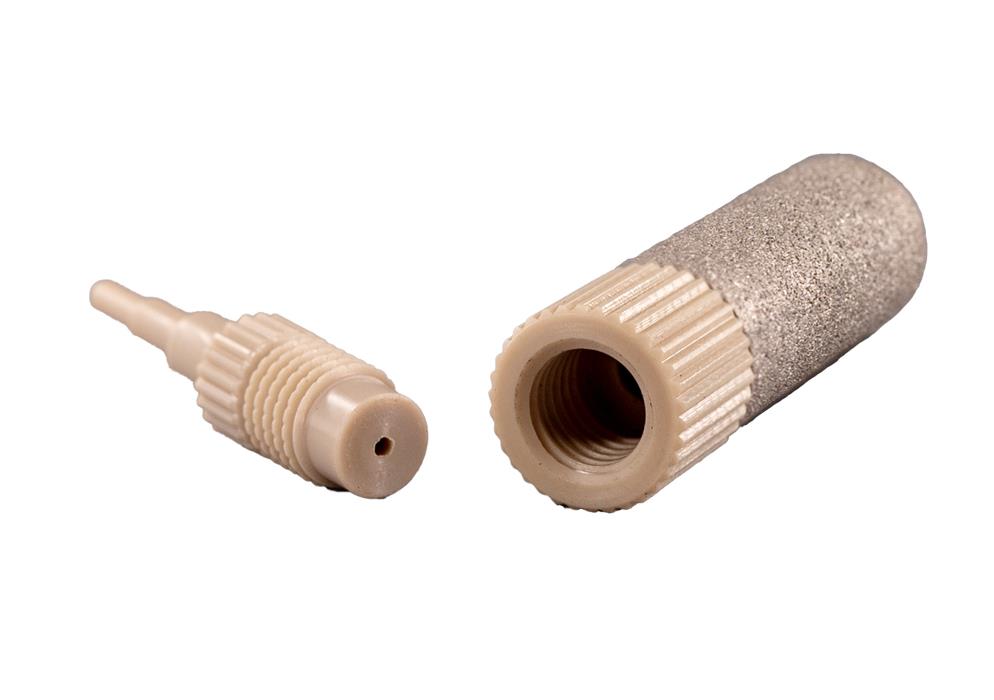

The integrated all‑PEEK tripod connector (3-step molded design) allows direct tubing connection without ferrules or nuts, supporting:

• 1/16 inch (1.6 mm) tubing

• 1/8 inch (3.2 mm) tubing

Designed for direct placement in mobile phase reservoirs, these filters are intended for inlet (vacuum) filtration only and are not recommended for sparging.

Key Features

20 µm High-Capacity Filtration

• Removes large particulates efficiently

• Protects pumps and columns

Ultra-Low Backpressure Performance

• Lower restriction vs. 2 µm, 5 µm, and 10 µm filters

• Improves solvent uptake and flow

316L Stainless Steel Construction

• Chemically resistant and robust

• Passivated for long-term durability

Universal Tripod Connector (All‑PEEK)

• Fits 1/16 inch and 1/8 inch tubing

• No ferrules or nuts required

High Throughput Operation

• Supports consistent solvent delivery

• Ideal for high-flow workflows

Reservoir-Ready Design

• Place directly into solvent bottles

• Quick, tool-free setup

Application-Specific Use

• Designed for inlet (vacuum) filtration

• ⚠️ Not suitable for sparging

Available Product & Replacement Options

• View mobile phase filters for sparging with 1/16 inch or 1/8 inch male nut and ferrule connectors

• Explore economical 5-pack stainless steel 20 µm tripod mobile phase filters

• Contact Customer Service for custom configurations and bulk pricing details

Specifications

• Type: Mobile Phase Inlet / Solvent Pickup Filter

• Material: 316L Stainless Steel (passivated), All‑PEEK connector

• Pore Size: 20 µm

• Dimensions: 0.375 inch OD x 1 inch length

• Connection Type: Tripod (fits 1/16 inch and 1/8 inch tubing)

• Compatibility: HPLC solvent reservoirs and pump inlet systems

• Application: Inlet (vacuum) filtration only

• Brand: EPP‑Porous Products

• Item Type: Custom / Bulk Order

Typical Applications

HPLC mobile phase filtration, removal of large particulates, pump protection, solvent preparation, and high-flow workflows requiring minimal backpressure.
