Catalog Number - 48220-06

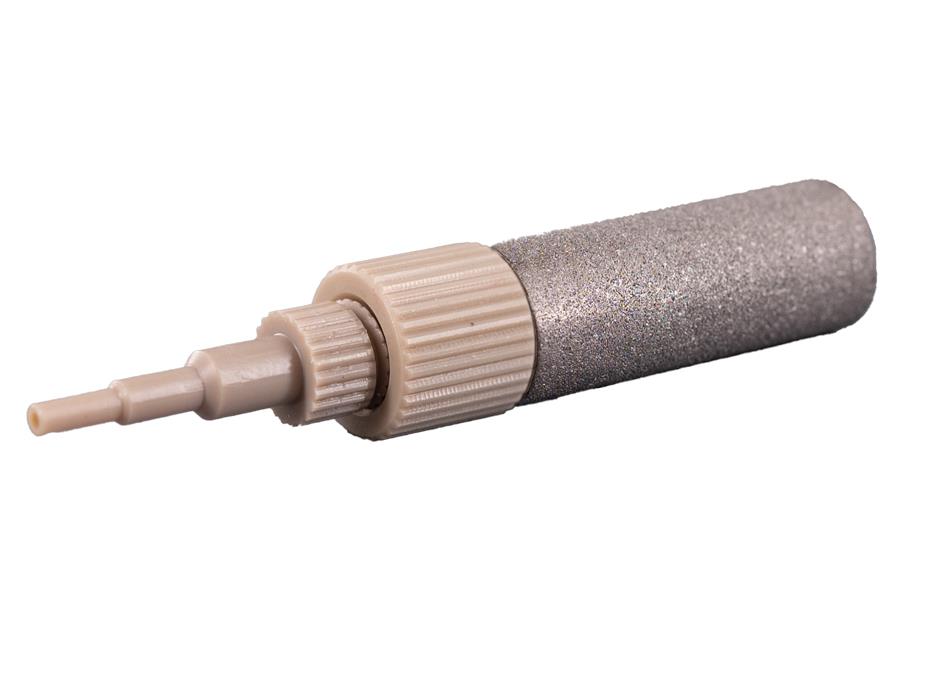

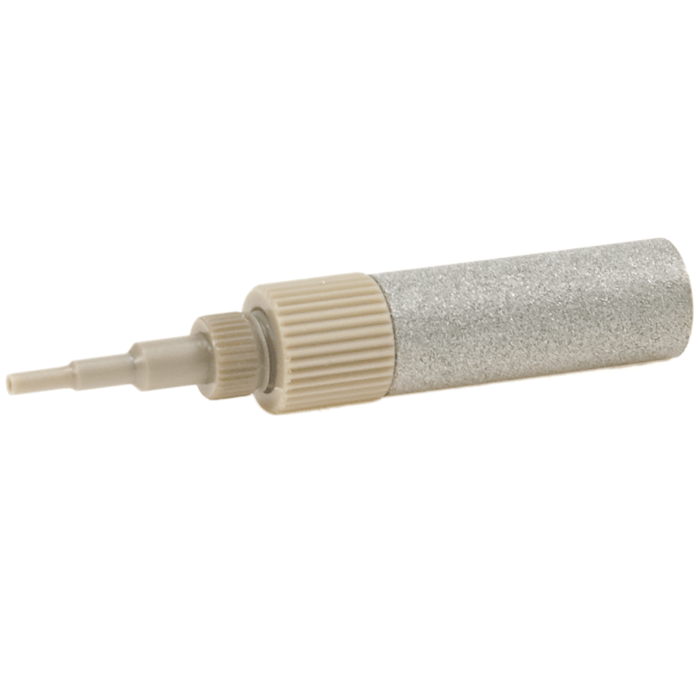

The 48220-06 Mobile Phase Filter is a high-capacity 316L stainless steel solvent inlet filter designed for efficient particulate removal and consistent solvent delivery in HPLC systems. Built for high throughput and durability, it protects pumps, columns, and instrumentation from contamination.

The 10 µm pore size removes larger undissolved particles while generating lower backpressure than finer filters (2 µm or 5 µm), supporting improved vacuum efficiency and solvent flow.

Each filter is passivated with a 30% nitric acid treatment, enhancing corrosion resistance and long-term compatibility with a wide range of HPLC solvents.

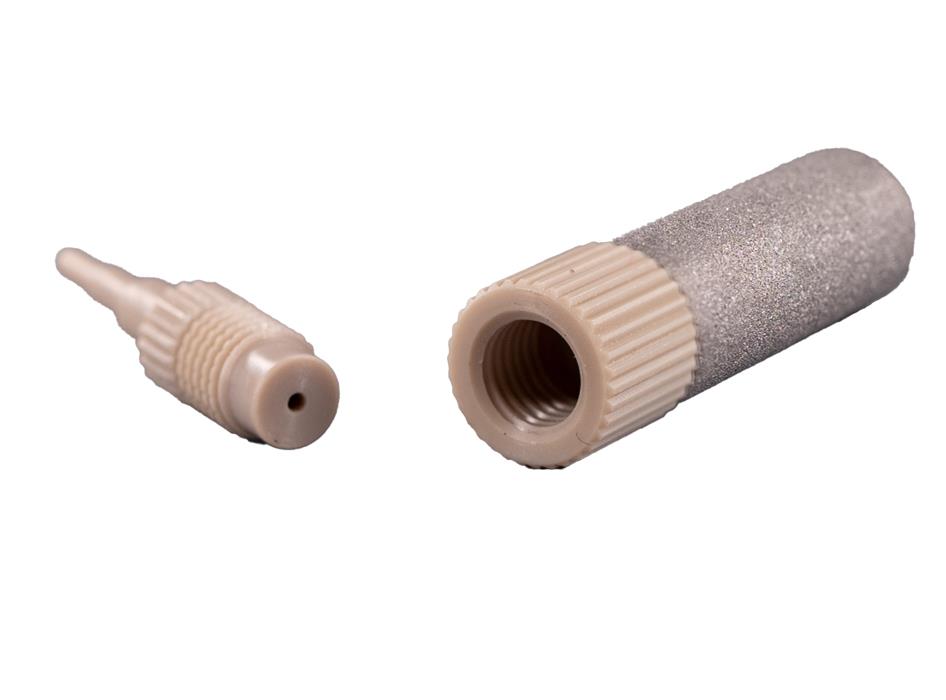

The integrated all‑PEEK tripod connector (3-step molded design) enables direct tubing connection without ferrules or nuts, supporting:

• 1/16 inch (1.6 mm) tubing

• 1/8 inch (3.2 mm) tubing

Designed for direct use in solvent reservoir bottles, these filters are intended for inlet (vacuum) filtration only and are not recommended for sparging.

Key Features

10 µm High-Capacity Filtration

• Removes larger undissolved particles

• Protects pumps and columns

Lower Backpressure Design

• Reduced resistance vs. 2 µm and 5 µm filters

• Improves solvent uptake efficiency

316L Stainless Steel Construction

• Chemically resistant and durable

• Passivated for corrosion protection

Universal Tripod Connector (All‑PEEK)

• Fits 1/16 inch and 1/8 inch tubing

• No ferrules or nuts required

High Throughput Performance

• Supports consistent solvent flow

• Ideal for routine and high-demand workflows

Reservoir-Ready Design

• Place directly into mobile phase bottles

• Simple, tool-free installation

Application-Specific Use

• Designed for inlet (vacuum) filtration

• ⚠️ Not suitable for sparging

Available Product & Replacement Options

• View mobile phase filters for sparging with 1/16 inch or 1/8 inch male nut and ferrule connectors

• Explore economical 5-pack stainless steel 10 µm tripod mobile phase filters

• Contact Customer Service for custom configurations and bulk pricing details

Specifications

• Type: Mobile Phase Inlet / Solvent Pickup Filter

• Material: 316L Stainless Steel (passivated), All‑PEEK connector

• Pore Size: 10 µm

• Dimensions: 0.375 inch OD x 1 inch length

• Connection Type: Tripod (fits 1/16 inch and 1/8 inch tubing)

• Compatibility: HPLC solvent reservoirs and pump inlet systems

• Application: Inlet (vacuum) filtration only

• Brand: EPP‑Porous Products

• Item Type: Custom / Bulk Order

Typical Applications

HPLC mobile phase filtration, removal of larger particulates, pump protection, solvent preparation, and workflows requiring durable stainless steel inlet filters with universal tubing compatibility.
