Catalog Number - 48220-03

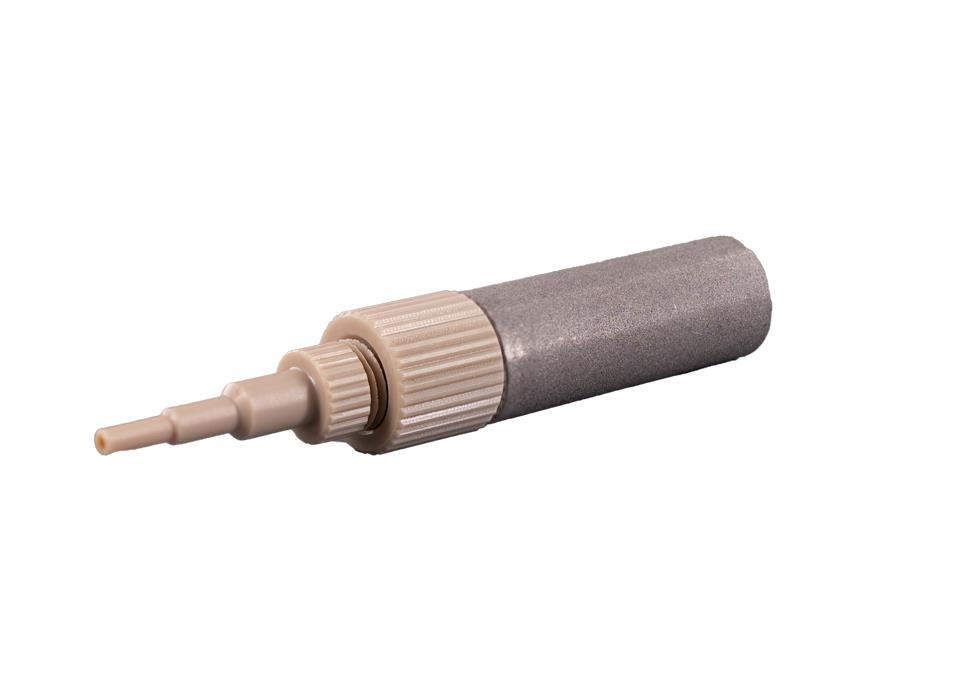

The 48220-03 Mobile Phase Filter is a high-capacity 316L stainless steel solvent inlet filter designed for fine particulate removal and dependable solvent delivery in HPLC systems. Manufactured for maximum durability and throughput, it effectively protects pumps, columns, and instrumentation from contamination.

The 2 µm pore size removes fine undissolved particles before they enter critical system components, supporting long column life and consistent performance.

Each filter is passivated with a 30% nitric acid treatment, improving corrosion resistance and compatibility with a wide range of mobile phases.

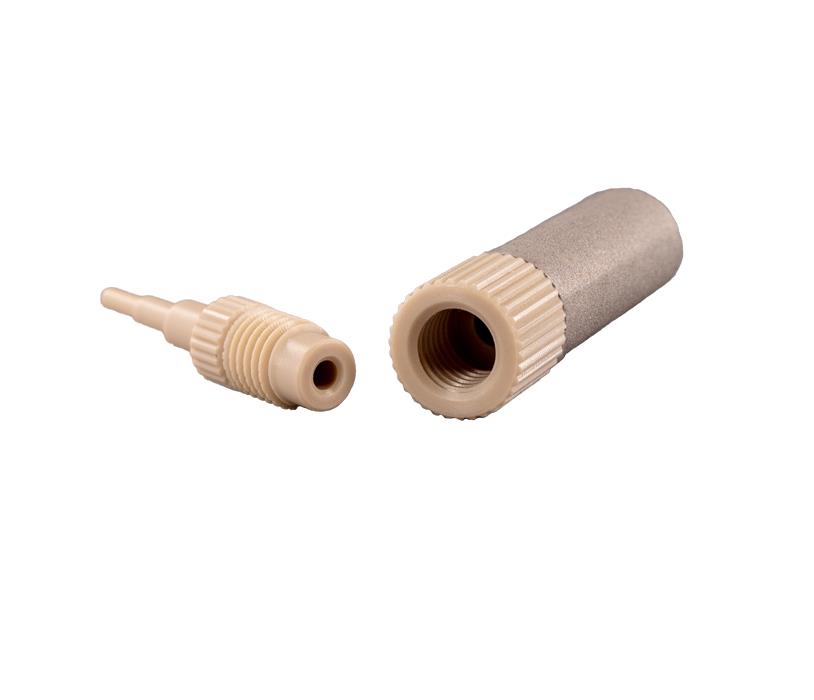

The integrated all‑PEEK tripod connector (3-step molded design) allows tubing to slip directly onto the fitting with no ferrules or nuts required, supporting:

• 1/16 inch (1.6 mm) tubing

• 1/8 inch (3.2 mm) tubing

Designed for direct placement in solvent reservoirs, these filters are intended for inlet (vacuum) filtration only and are not recommended for sparging.

Key Features

2 µm Fine Filtration

• Removes small particulates before pump entry

• Protects HPLC columns and systems

316L Stainless Steel Construction

• Durable, chemically resistant

• Passivated for enhanced corrosion protection

High Capacity, Efficient Flow

• Maintains strong solvent throughput

• Supports consistent system performance

Universal Tripod Connector (All‑PEEK)

• Fits 1/16 inch and 1/8 inch tubing

• No ferrules or nuts required

Reservoir-Ready Design

• Place directly into mobile phase bottles

• Simple, tool-free setup

Application-Specific Use

• Optimized for inlet (vacuum) filtration

• ⚠️ Not intended for sparging applications

Available Product & Replacement Options

• View mobile phase filters designed for sparging with male nut and ferrule connections

• Explore economical 5-pack stainless steel 2 µm tripod mobile phase filters

• Contact Customer Service for custom configurations and bulk pricing

Specifications

• Type: Mobile Phase Inlet / Solvent Pickup Filter

• Material: 316L Stainless Steel (passivated) with All‑PEEK connector

• Pore Size: 2 µm

• Dimensions: 0.375 inch OD x 1 inch length

• Connection Type: Tripod (fits 1/16 inch and 1/8 inch tubing)

• Compatibility: HPLC solvent reservoirs and pump inlet systems

• Application: Inlet (vacuum) filtration only

• Brand: EPP‑Porous Products

• Item Type: Custom / Bulk Order

Typical Applications

HPLC mobile phase filtration, fine particulate removal, pump protection, solvent preparation, and applications requiring durable stainless steel inlet filtration with universal tubing connectivity.
