Sample Loop, Cheminert/Rheodyne, 5 ul, For HPLC Injectors, Stainless Steel. ARE-Applied Research brand. 1 EA.
Additional Info:
These HPLC injector sample loops are selected for chromatography applications requiring reproducible and accurate sample injections.

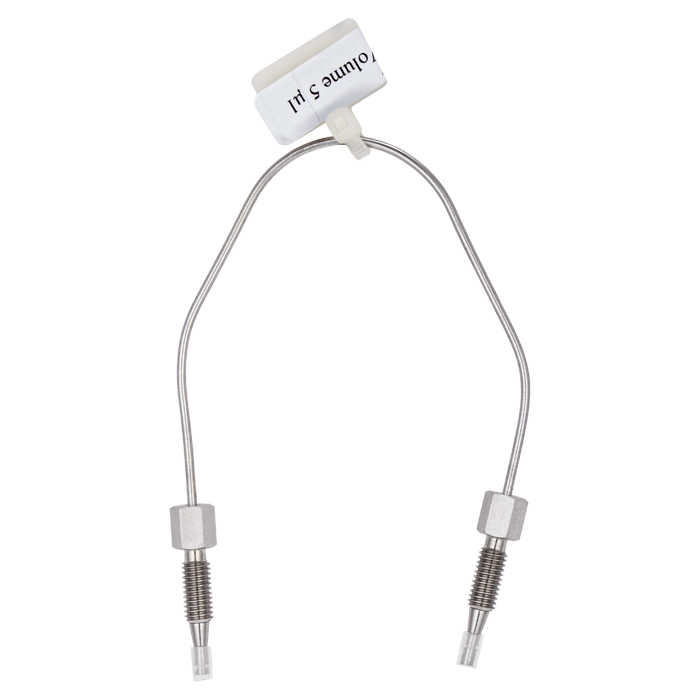

The 47003‑005 sample loop provides a 5 µL sample volume and is manufactured using welded and annealed 316 stainless steel tubing for reliable HPLC performance.
The tubing has a 0.18 mm ID (± 0.025 mm tolerance) and is supplied with two‑piece small hex head stainless steel high‑pressure tubing connectors with ferrules for injector installation. Tubing end cuts are produced using EDC (electronic discharge cutting) techniques to provide square, burr‑free ends for zero dead volume connections. Each sample loop includes an attached volume identification label.
Compatible with Rheodyne® and Cheminert® HPLC injector valves.
Key Benefits
316 stainless steel tubing construction
Welded and annealed tubing
Reproducible injection performance
Zero dead volume connections
High‑pressure stainless steel fittings
Burr‑free EDC tubing end cuts
Chemical resistant metal construction
Specifications
Product Type: HPLC sample loop
Brand: ARE‑Applied Research
Sample Loop Volume: 5 µL
Tubing Material: 316 stainless steel
Tubing ID: 0.18 mm ± 0.025 mm
Fitting Type: Two‑piece stainless steel connectors with ferrules
Connection Type: Zero dead volume
Quantity: 1 each
Applications
HPLC injector valves
Analytical chromatography
Low volume sample injection
High precision injection workflows
Usage Information
Selected for accurate low‑volume injections
Compatible with Rheodyne® and Cheminert® injector valves
Includes stainless steel high‑pressure fittings
Volume identification label attached
