Sample Loop, 100 ul, for Valco injector valves, PEEK. ARE-Applied Research brand. 1 EA.
Additional Info:
These injector sample loops are selected for chromatography applications requiring reproducible and accurate sample injections.

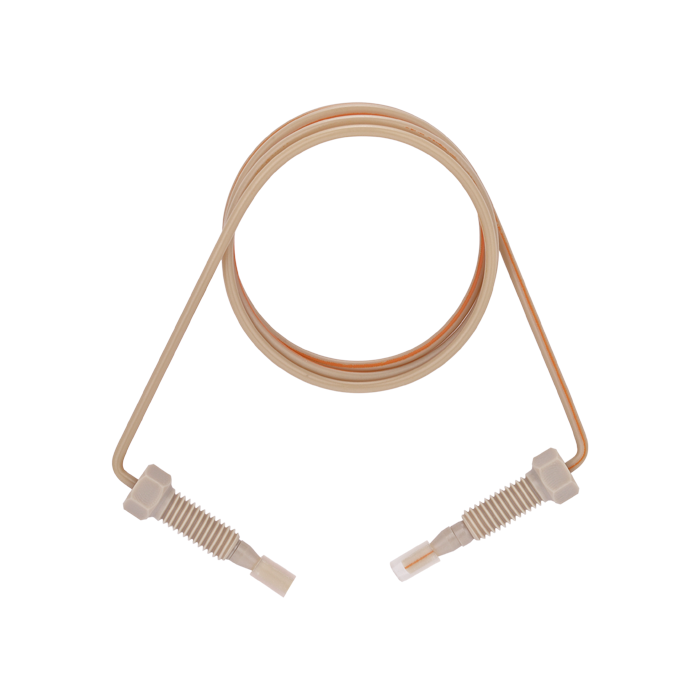

The 47002‑100 sample loop provides a 100 µL sample volume and is manufactured using 1/16" OD Ultra‑T™ PEEK tubing for reliable HPLC and GC performance.
The supplied tubing has a 0.50 mm ID (± 0.05 mm tolerance) and includes two high‑pressure PEEK three‑piece small hex head nuts with 1/32" threads and two single‑cone ferrules per nut.
The ferrule design helps minimize twisting during installation while gripping the tubing at two points for improved pressure stability. These fittings provide zero dead volume connections.

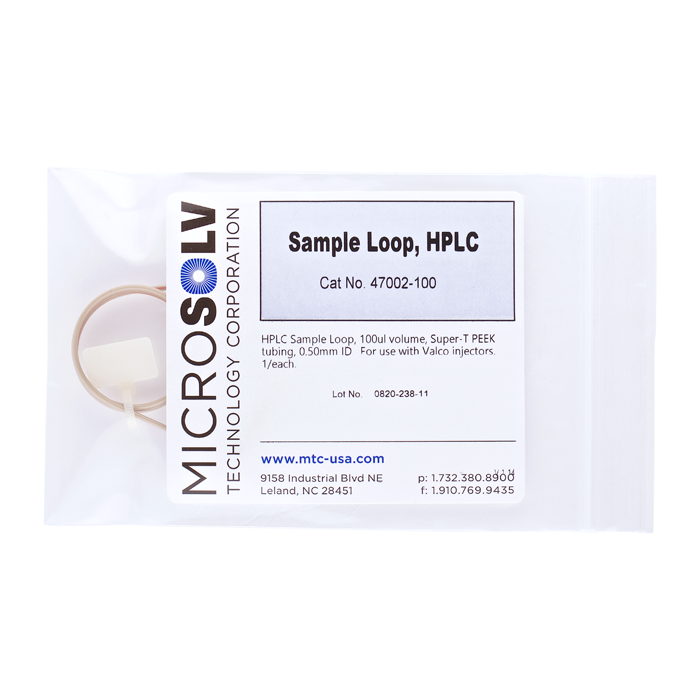

Each sample loop includes an attached volume identification label.
Compatible with VICI®, Valco®, Rheodyne®, and Cheminert® injector valves.
Key Benefits
Ultra‑T™ PEEK tubing construction
Reproducible injection performance
Zero dead volume connections
High‑pressure PEEK fittings
Chemical resistant materials
Dual‑grip ferrule stability
Specifications
Product Type: HPLC and GC sample loop
Brand: ARE‑Applied Research
Sample Loop Volume: 100 µL
Tubing Material: Ultra‑T™ PEEK
Tubing OD: 1/16"
Tubing ID: 0.50 mm ± 0.05 mm
Thread Size: 1/32"
Connection Type: Zero dead volume
Quantity: 1 each
Applications
HPLC injector valves
GC injector valves
Analytical chromatography
Sample injection workflows
Usage Information
Selected for accurate sample injections
Includes high‑pressure PEEK fittings
Volume identification label attached
