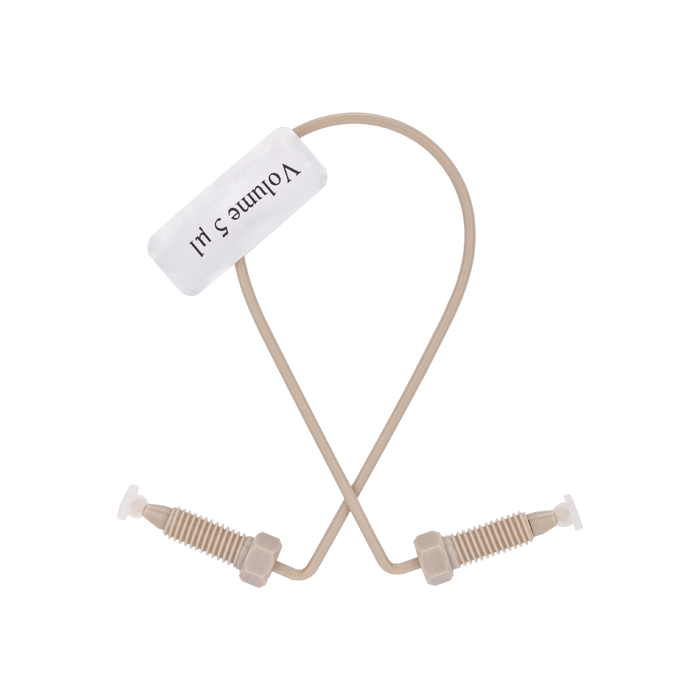

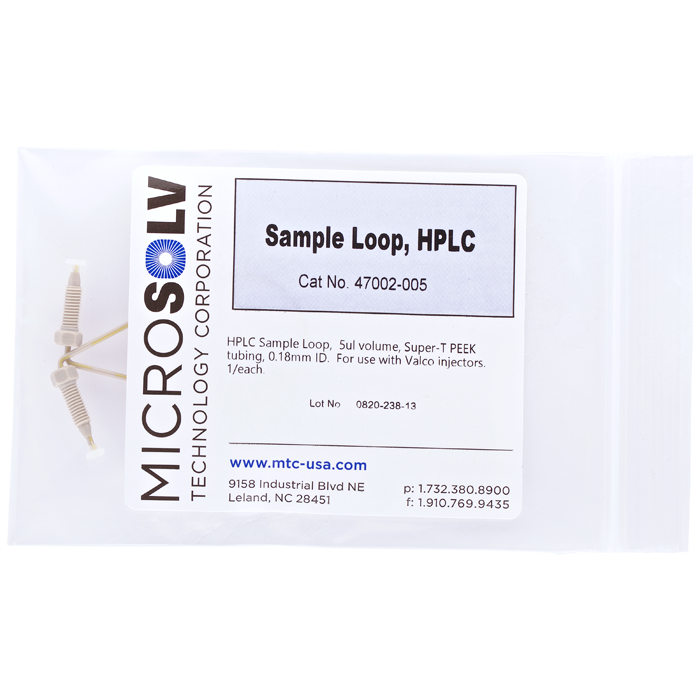

Sample Loop, 5 ul, for Valco valves, PEEK. ARE-Applied Research brand. 1 EA.
Additional Info:
These injector sample loops are selected for chromatography applications requiring reproducible and accurate sample injections.
The 47002‑005 sample loop provides a 5 µL sample volume and is manufactured using 1/16" OD Ultra‑T™ PEEK tubing for reliable HPLC and GC performance.
The supplied tubing has a 0.18 mm ID (± 0.025 mm tolerance) and includes two high‑pressure PEEK three‑piece small hex head nuts with 1/32" threads and two single‑cone ferrules per nut.
The ferrule design helps minimize twisting during installation while gripping the tubing at two points for improved pressure stability. These fittings provide zero dead volume connections.
Each sample loop includes an attached volume identification label.
Compatible with VICI® and Valco® brand HPLC and GC injector valves.
Key Benefits
Ultra‑T™ PEEK tubing construction
Reproducible injection performance
Zero dead volume connections
High‑pressure PEEK fittings
Chemical resistant materials
Dual‑grip ferrule stability
Compatible with VICI® and Valco® valves
Specifications
Product Type: HPLC and GC sample loop
Brand: ARE‑Applied Research
Sample Loop Volume: 5 µL nominal
Tubing Material: Ultra‑T™ PEEK
Tubing OD: 1/16"
Tubing ID: 0.18 mm ± 0.025 mm
Thread Size: 1/32"
Connection Type: Zero dead volume
Quantity: 1 each
Applications
HPLC injector valves
GC injector valves
Analytical chromatography
Low volume sample injection
VICI® injector systems
Valco® injector systems
Usage Information
Selected for accurate low‑volume injections
Compatible with VICI® and Valco® injector valves
Includes high‑pressure PEEK fittings
Volume identification label attached
