Sample Loop, 100 ul, for Cheminert or Rheodyne HPLC valves, PEEK. ARE-Applied Research brand. 1 EA.
Additional Info:
These HPLC injector sample loops are selected for chromatography applications requiring highly reproducible and accurate sample injections.

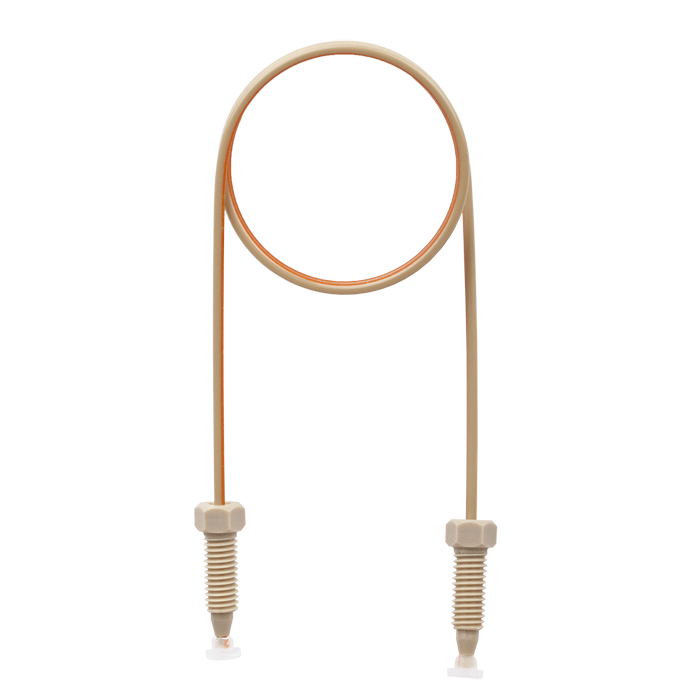

The 47001‑100 sample loop provides a 100 µL sample volume and is manufactured using 1/16" OD Ultra‑T™ PEEK tubing for consistent injection performance and chemical resistance in HPLC workflows.
The supplied tubing has a 0.50 mm ID (± 0.05 mm tolerance) and includes two high‑pressure PEEK three‑piece small hex head nuts with 1/32" threads along with two special single‑cone ferrules per nut.
This ferrule design helps prevent twisting and turning of the sample loop during installation while gripping the tubing at two separate locations to improve pressure stability and maintain secure connections.
The fittings are designed to provide zero dead volume connections for reduced band broadening and improved chromatographic accuracy.

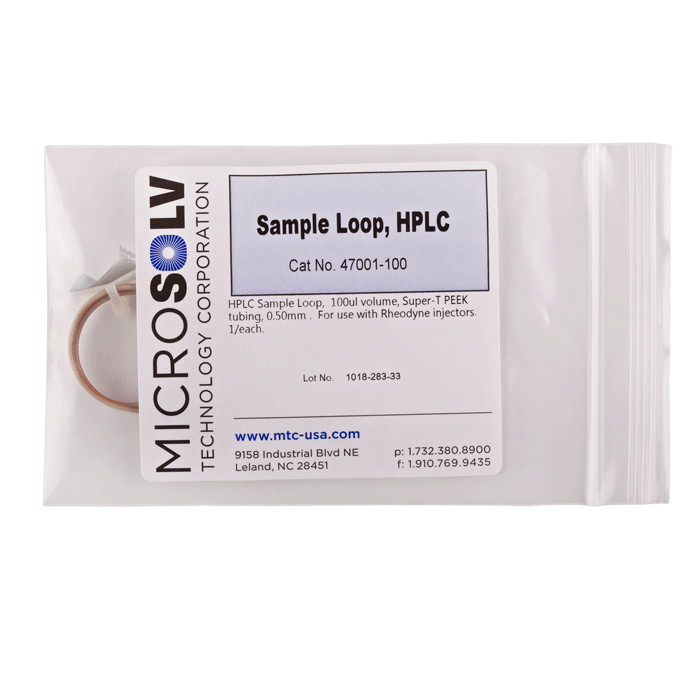

Each sample loop includes an attached label identifying the sample loop volume for convenient system setup and identification.
Compatible with Rheodyne® and Cheminert® injector valves.
Key Benefits
Ultra‑T™ PEEK tubing construction
Highly reproducible injection performance
Low dispersion sample pathway
Zero dead volume connections
High‑pressure compatible fittings
Chemical resistant PEEK materials
Dual‑grip ferrule stability
Compatible with Rheodyne® and Cheminert® valves
Specifications
Product Type: HPLC sample loop
Brand: ARE‑Applied Research
Sample Loop Volume: 100 µL nominal
Tubing Material: Ultra‑T™ PEEK
Tubing OD: 1/16"
Tubing ID: 0.50 mm ± 0.05 mm
Thread Size: 1/32"
Fitting Type: Three‑piece PEEK nuts with single‑cone ferrules
Connection Type: Zero dead volume
Quantity: 1 each
Applications
HPLC injector valves
Sample injection workflows
Analytical chromatography
High precision injection workflows
Rheodyne® injector systems
Cheminert® injector systems
Usage Information
Selected for accurate sample injections
Compatible with Rheodyne® and Cheminert® valves
Includes high‑pressure PEEK fittings
Ferrule system minimizes tubing twisting
Volume identification label attached
Provides zero dead volume fluidic connections
