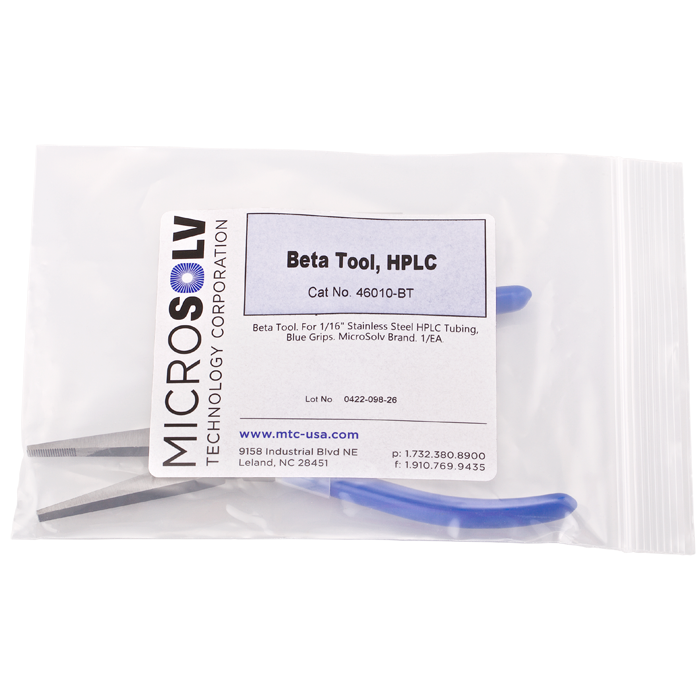

Beta Tool. For 1/16" Stainless Steel HPLC Tubing, Blue Grips. MICROSOLV Brand. 1 EA.
Additional Info:
The 46010‑BT Beta Tool™ is a precision tubing pliers and straightening tool designed specifically for laboratories working with 1/16" stainless steel HPLC tubing. This versatile tool is used to remove kinks, correct bends, and create smooth, controlled tubing curves, ensuring optimal flow path integrity and chromatographic performance.
The tool features a precision‑machined center hole, slightly larger than 1/16" tubing, allowing for controlled reshaping without collapsing or deforming the tubing. By applying steady pressure, users can straighten damaged tubing or form uniform bends, helping maintain a consistent internal diameter and avoiding flow disruptions.
In addition to tubing work, the Beta Tool™ functions as a set of precision pliers, making it useful for handling fittings and small components during routine maintenance.
The tool is equipped with soft, ergonomic blue grips, providing comfort and control during extended use, while reducing hand fatigue.
Why Use a Tubing Straightener Tool?
Bent or kinked tubing can lead to:
Flow restrictions and increased backpressure
Turbulent flow and peak distortion
Dead volume and reduced reproducibility
Potential leaks or poor fitting connections
The Beta Tool™ helps maintain:
Smooth internal flow paths
Proper tubing geometry
Consistent chromatographic performance
Without the need to cut or replace tubing.
Key Features
Designed for 1/16" Stainless Steel Tubing
Precision‑fit center hole for controlled shaping
Compatible with the most common analytical HPLC tubing size
Straightening and Bending Capability
Removes kinks and unwanted bends
Creates smooth, repeatable tubing curves
Maintains tubing integrity and internal diameter
Dual‑Use Tool
Functions as precision pliers
Useful for handling small fittings and components
Ergonomic Design
Soft blue grips for improved comfort and control
Reduces hand fatigue during routine maintenance
Typical Applications
Straightening kinked HPLC tubing
Forming clean, controlled bends during system setup
Routine instrument maintenance and tubing adjustment
Handling fittings and small components
Preventing flow path disruptions and dead volume
