Fittings Kit for HPLC. low pressure. Includes and assortment of flange free fittings and ferrules, in an organizing box. ARE-Applied Research brand. 1 EA.
Additional Info:
The 46000‑LP HPLC Low Pressure Fittings Kit is a comprehensive assortment of flangeless tubing connector nuts, ferrules, and unions, designed to support maintenance and operation of low-pressure zones in HPLC systems. Supplied in a convenient organized storage box, this kit ensures that essential components are readily available for routine service and troubleshooting.
This kit includes a wide range of 1/16" and 1/8" Delrin tubing connector nuts (color-coded) along with ETFE ferrules and nylon unions, providing a complete solution for flangeless tubing connections across multiple system configurations.
✅ Key Benefits
Complete Maintenance Kit Provides all essential low-pressure flangeless connection components
Dual Tubing Compatibility Supports both 1/16" and 1/8" OD tubing systems
Color-Coded Connector Organization Simplifies system identification and troubleshooting

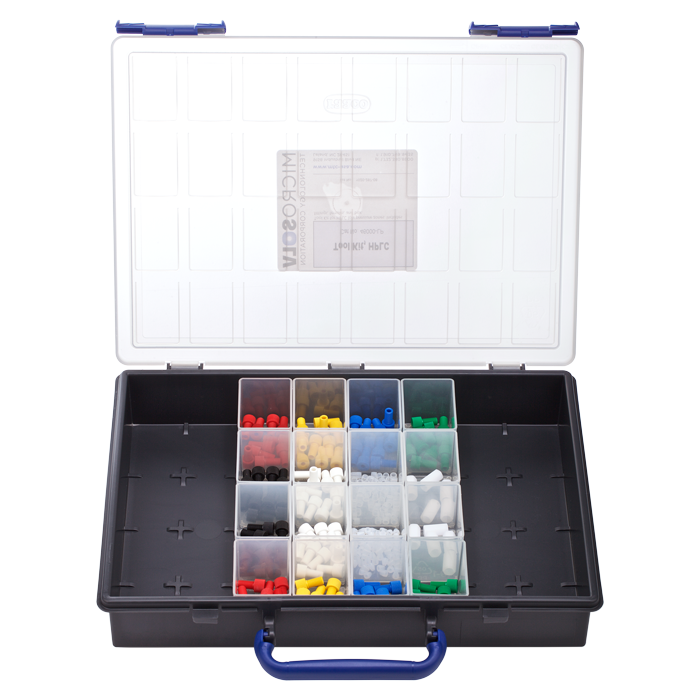

Pre-Assorted & Organized Stored in a compartmentalized box for quick access
Flangeless System Design Eliminates need for tubing flanging
Essential for Instrument Maintenance Ideal for labs responsible for HPLC upkeep and uptime
System Role & Application
Designed for:
Routine HPLC maintenance
Replacement of worn fittings
Troubleshooting leaks or connection failures
Multi-user or shared instrument environments
This kit ensures:
Reduced downtime
Faster repairs
Consistent system performance
Included Components
1/16" Delrin Flangeless Connector Nuts (1/4‑28)
10 × Black
10 × Blue
10 × Green
10 × Red
10 × White
10 × Yellow
1/8" Delrin Flangeless Connector Nuts (1/4‑28)
10 × Black
10 × Blue
10 × Green
10 × Red
10 × White
10 × Yellow
Ferrules (ETFE)
60 × 1/16" ferrules
60 × 1/8" ferrules
Unions
10 × Nylon unions (1/4‑28, body only)
Performance & Design
Connector Material: Delrin™ (Polyoxymethylene)
High stiffness
Low friction
Excellent dimensional stability
Ferrule Material: ETFE
High chemical resistance
Strong sealing performance
Broad solvent compatibility
Connection Type:
Flangeless tubing system
1/4‑28 UNF compatibility
⚠️ Usage Notes
Designed for low-pressure HPLC applications
Ferrules included for proper sealing
Tubing must be flangeless (NOT flared)
Pressure Limit: ~500 psi (34.5 bar)
Maximum Temperature: 100°C
Specifications
Product Type: HPLC Fittings Kit
System Type: Low pressure
Tubing Sizes Supported: 1/16" and 1/8" OD
Connection Type: Flangeless
Thread Type: 1/4‑28 UNF
Connector Material: Delrin™
Ferrule Material: ETFE
Union Material: Nylon

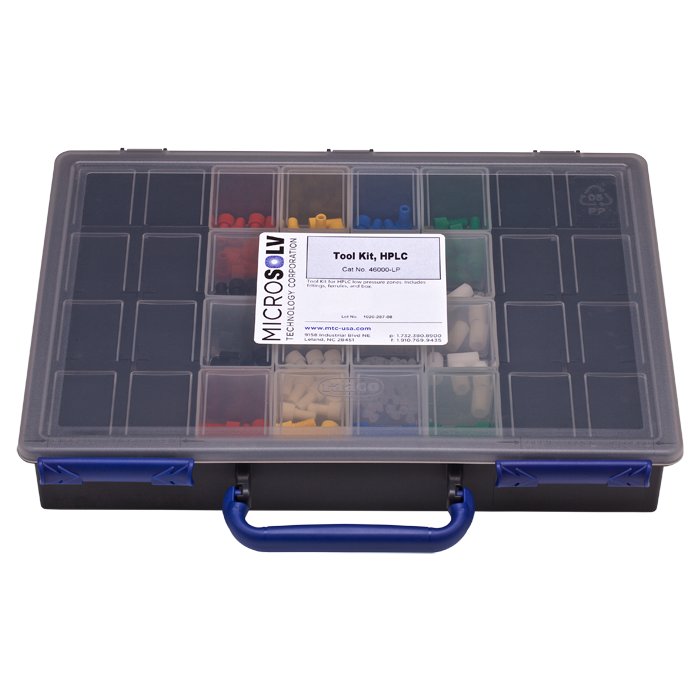

Packaging: Organized storage kit box
Quantity: 1 kit
Brand: ARE‑Applied Research™
