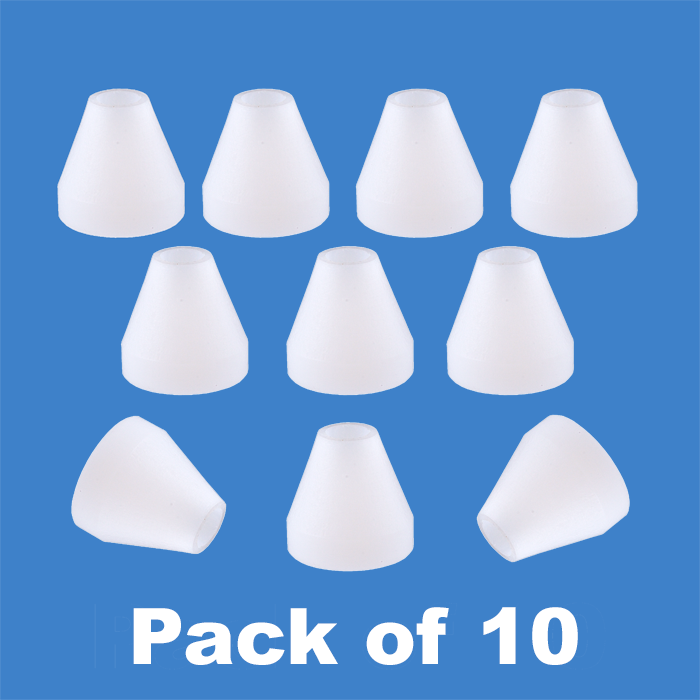

Ferrules, for use with low pressure, tubing connectors. Use with flange free, 1/16 inch, low pressure tubing. PTFE. ARE-Applied Research brand. 10/PK.
Additional Info:
The 45216‑F‑PTFE Ferrules (10/Pack) are designed for use with flangeless tubing connector nuts to create secure, leak‑free connections in low-pressure HPLC systems and fluidic applications. These ferrules are specifically sized for 1/16 inch OD polymeric tubing and are required for proper sealing when using flangeless fittings.
Manufactured from PTFE (polytetrafluoroethylene), these ferrules provide exceptionally low friction, excellent chemical resistance, and hydrophobic surface properties, making them especially suitable for applications where minimal interaction and smooth sealing are critical.
✅ Key Benefits
Essential for Flangeless Connections Required to achieve proper sealing with tubing connector nuts
Optimized for 1/16" Tubing Designed specifically for flangeless polymeric tubing systems
Ultra-Low Friction Surface Reduces wear and facilitates smoother assembly
Excellent Chemical Resistance Compatible with a wide range of HPLC solvents
Hydrophobic Material Properties Minimizes interaction with aqueous solutions
10/Pack Configuration Ideal for routine maintenance and replacement
Performance & Design
Material: PTFE (Polytetrafluoroethylene)
Extremely low coefficient of friction
High chemical resistance
Hydrophobic surface characteristics
Excellent wear resistance
Engineered for:
Smooth compression and sealing
Reduced friction during installation
Reliable performance in flangeless systems
System Role & Integration
Used with:
1/16" flangeless tubing connector nuts (45216 series)
Functions to:
Compress tubing
Create a leak-free seal
Maintain system integrity
Suitable for:
Low-pressure HPLC systems
Sample preparation and transfer
General laboratory fluidic applications
⚠️ Usage Notes
Required component for all flangeless tubing connections
Must be used with compatible:
1/16" OD tubing
1/4‑28 flangeless connector nuts
Designed for low-pressure applications only
Specifications
Product Type: Ferrules
Material: PTFE
Tubing Size Compatibility: 1/16 inch OD
Connection Type: Flangeless
System Type: Low pressure
Pack Size: 10 per pack
Brand: ARE‑Applied Research™
