Catalog Number - 45208-F-ETFE

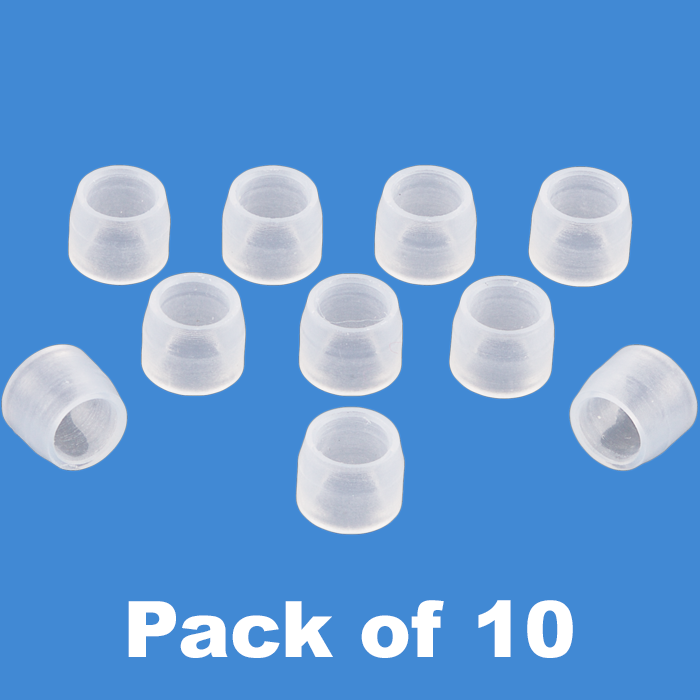

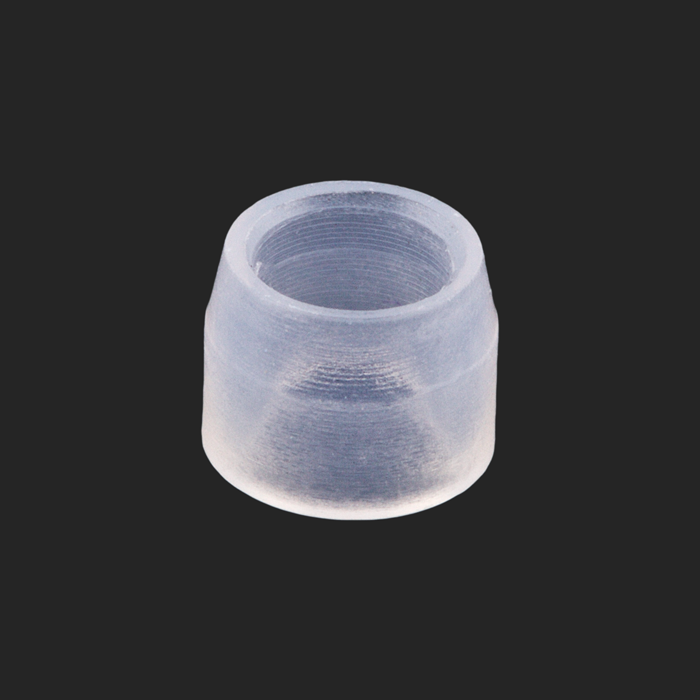

The 45208‑F‑ETFE Single‑Cone Ferrules (10/Pack) are designed for use with flangeless tubing connector nuts to create secure, leak‑free connections in low-pressure HPLC systems and fluidic applications. These ferrules are specifically sized for 1/8 inch OD polymeric tubing and are essential components for proper sealing in flangeless systems.

Featuring a single-cone design, these ferrules swage (compress) onto the tubing at a single point, providing a strong mechanical grip that prevents tubing slippage while ensuring a reliable seal.

Manufactured from ETFE (ethylene tetrafluoroethylene), these ferrules offer excellent chemical resistance and higher mechanical strength compared to softer materials, making them ideal for applications requiring consistent sealing performance.

✅ Key Benefits

• Single‑Cone Sealing Design Provides strong mechanical grip and leak-free sealing

• Essential for Flangeless Connections Required for use with tubing connector nuts

• Optimized for 1/8" Tubing Designed specifically for flangeless polymeric tubing systems

• High Mechanical Strength (ETFE) More rigid than PTFE for improved compression and retention

• Excellent Chemical Resistance Compatible with a wide range of HPLC solvents

• Economical 10/Pack Configuration Ideal for routine use and system maintenance

Performance & Design

• Material: ETFE (Ethylene Tetrafluoroethylene)

  • High mechanical strength

  • Excellent chemical resistance

  • Broad temperature stability

  • Durable under repeated use

• Design Features:

  • Single-cone compression geometry

  • Strong tubing grip via swaging mechanism

Engineered for:

• Reliable leak-free sealing

• Secure tubing retention

• Consistent performance in flangeless systems

System Role & Integration

• Used with:

  • 1/8" 1/4‑28 flangeless tubing connector nuts

• Functions to:

  • Compress tubing

  • Create a tight, leak-free seal

  • Prevent tubing movement

Suitable for:

• Low-pressure HPLC systems

• Fluid transfer applications

• General laboratory fluidics

⚠️ Usage Notes

• Tubing must NOT be flanged (flangeless only)

• Required for proper sealing in flangeless fittings

• Compatible with:

  • 1/8" OD tubing

  • 1/4‑28 connector nuts

• Pressure Capability: Dependent on tubing; up to ~290 psi (20 bar)

Specifications

• Product Type: Ferrules (Single‑Cone)

• Material: ETFE

• Tubing Size Compatibility: 1/8 inch OD

• Connection Type: Flangeless

• System Type: Low pressure

• Design: Single-cone

• Pressure Limit: Up to ~290 psi (20 bar, tubing dependent)

• Pack Size: 10 per pack

• Brand: ARE‑Applied Research™
