Catalog Number - 45099-113

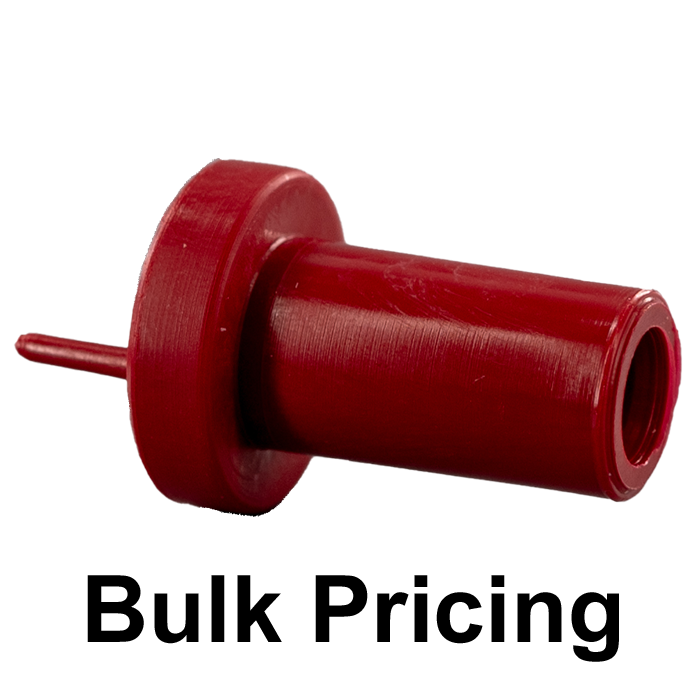

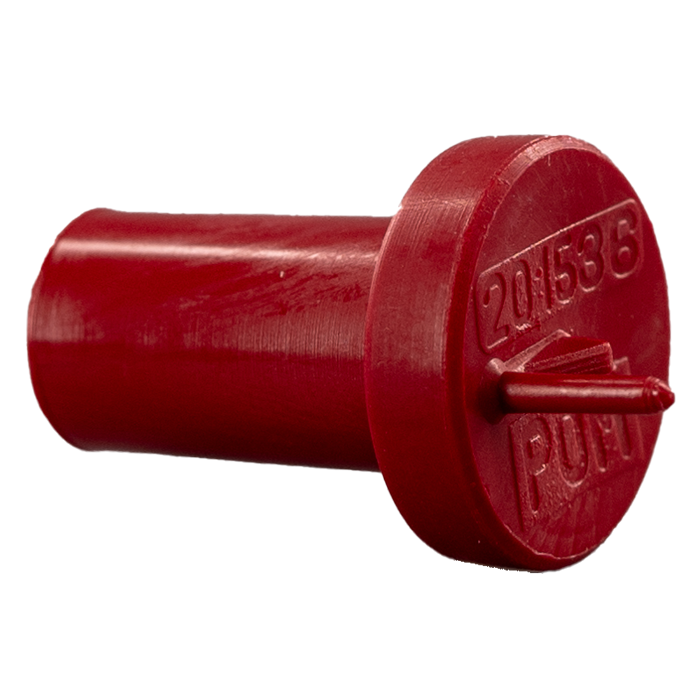

The 45099‑113 Polymer Tubing Flanging Drill is a precision replacement component designed for use with the MICROSOLV Flanging Tool, enabling accurate and repeatable cold flanging of polymer tubing tips, especially for larger internal diameter (ID) tubing.

This drill features a 1.3 mm polymeric pin, engineered to provide enhanced internal support during the flaring process. This is critical when working with larger bore polymer tubing, where proper internal stabilization is necessary to achieve a uniform, dimensionally stable flange.

The polymeric pin material is specifically selected to:

• Reduce stress during flaring

• Minimize deformation of softer tubing

• Maintain consistent flare geometry

When used with the flanging tool, this drill produces mechanically formed (cold‑formed) flares, eliminating variability associated with heat‑based methods and delivering:

• Improved dimensional consistency

• Reduced tubing distortion

• Reliable sealing surfaces

Why Choose the 1.3 mm Polymeric Pin Drill

This drill is typically selected when:

• Working with large ID polymer tubing

• Maximum internal support is required during flaring

• Expanding capability beyond standard kit drill sizes

• Consistent flange shape is critical for sealing

The 1.3 mm pin represents the largest support option in the flanging drill range, making it ideal for higher‑flow or larger tubing configurations.

Key Features

Designed for Larger Polymer Tubing

• Compatible with PTFE, FEP, PFA, ETFE, and similar materials

• Optimized for larger internal diameter tubing

• Ensures consistent and reliable flaring

Polymeric Pin Construction

• 1.3 mm polymeric pin

• Provides maximum internal support in this drill series

• Reduces deformation in larger tubing sizes

Compatible with Flanging Tool Systems

• Designed for MICROSOLV flanging tools

• Maintains tool precision and repeatability

• Essential replacement or expansion component

Cold‑Forming Flare Technology

• No heat required

• Produces stable, durable tubing flares

• Improves connection reliability

Typical Applications

• Flanging large ID polymer tubing

• Expanding flanging tool capability beyond standard kits

• Replacement of worn flanging tool drills

• Low‑pressure chromatography and fluidic systems

• Laboratory tubing preparation for higher‑flow applications

Made‑to‑Order & Bulk Pricing Information

This is a custom, made‑to‑order item.

• Orders cannot be canceled once placed

• Custom items are non‑returnable

• Please contact Customer Service for formal quotation, lead time, and ordering assistance. Classification:

• This item is classified as a CUSTOM ITEM. View our Custom Item policy.
