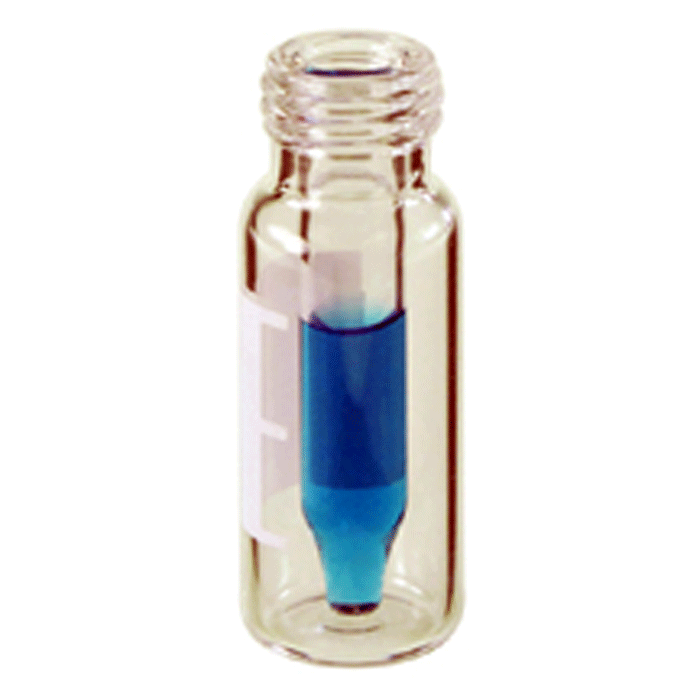

Vials, Screw Top, Glass. Clear / Clear Insert, 300ul with Write-On Patch and fill lines, Wide Tip Fused Insert™, 9-425mm threads, 12x32mm outer dimensions. For use as an autosampler vial. RSA Brand. 100/PK.
Additional Info:
The 9532S‑WCV‑WT‑RS RSA™ Wide‑Tip Fused Insert Autosampler Vial is a high‑performance, low‑volume vial engineered for reliable injections where sample recovery, reproducibility, and filling consistency are critical. Both the vial body and the Wide‑Tip Fused Insert™ are manufactured from first hydrolytic, Class A, Type‑33 reduced surface activity borosilicate glass, delivering exceptional chemical inertness and lot‑to‑lot consistency.
The 300 µL fused insert is permanently integrated into the vial, providing precise geometry and eliminating variability associated with removable inserts. The wide‑tip insert design at the bottom helps prevent bubble formation during rapid or automated filling, making this vial especially well suited for high‑throughput and LC‑MS workflows.
Key Features
RSA™ Reduced Surface Activity Glass
First hydrolytic, Class A, Type‑33 borosilicate glass
Certified reduced surface activity for minimal analyte interaction
Virtually no adsorption of basic or polar compounds
Does not add sodium (Na) or induce pH changes
Wide‑Tip Fused Insert™ Design
Permanently fused insert for structural stability
Wide‑tip bottom geometry minimizes bubble formation
Improves fill consistency during manual and automated filling
Optimized for low‑volume injections (300 µL nominal volume)
Precision‑Controlled Autosampler Geometry
Bottom depths and vial heights are tightly designed and QC controlled
Maximizes sample recovery
Reduces risk of autosampler needle damage
Compatible with demanding autosampler platforms
Durable Ceramic Write‑On Patch and Fill Lines
Permanently fired ceramic labeling surface
Resists smearing and scratching, even with aggressive solvents
Fill lines support consistent sample preparation
Why Choose a Wide‑Tip Fused Insert Vial?
This vial is frequently selected when laboratories need low‑volume accuracy without the complications of removable inserts. The wide‑tip fused insert offers several advantages:
Improved filling reliability, especially for fast or automated filling
Reduced bubble formation compared to narrow‑tip insert designs
Excellent recovery for low‑abundance and pH‑sensitive analytes
Consistent performance vial‑to‑vial and lot‑to‑lot
Each production lot is tested and certified for reduced surface activity, making this vial a trusted choice for LC‑MS, regulated, and high‑precision workflows.
Typical Applications
LC‑MS and UHPLC autosampling
Low‑abundance and trace‑level analytes
pH‑sensitive compounds
High‑throughput analytical workflows
Low‑volume sample injections
