Catalog Number - 45099-002

The 45099‑002 Flanging Tool Kit (“Flangy the Tool”) is a complete tubing preparation and connection system designed for cold flanging polymer tubing and assembling reliable low‑pressure chromatography connections. This expanded kit builds on the standard flanging system by including tubing connectors (nuts with PP rings), enabling users to go from tubing preparation to final installation in a single workflow.

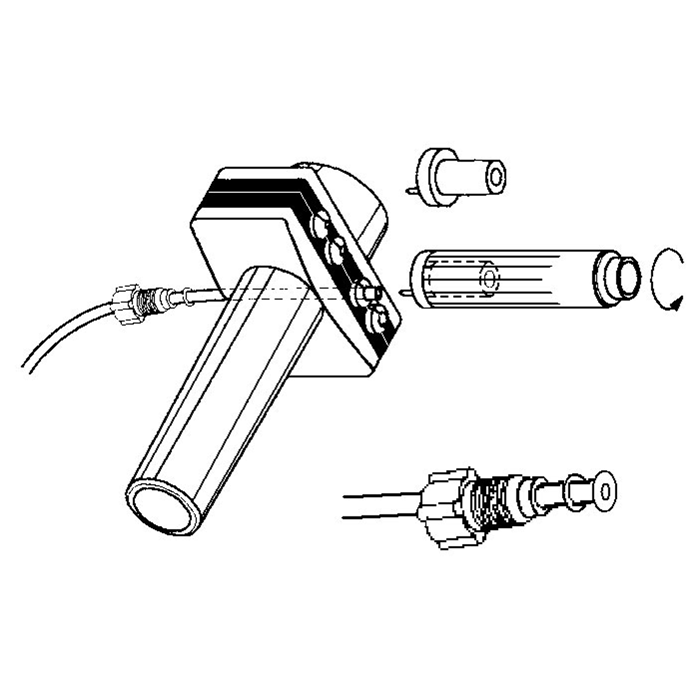

Unlike heat‑based flaring methods, this tool uses a mechanical (cold‑forming) process to create tubing flanges. This produces stronger, longer‑lasting, and more dimensionally stable flares, reducing the likelihood of deformation and ensuring consistent sealing performance over time.

The kit includes everything required to cut, flange, and connect polymer tubing, making it ideal for laboratories that want a complete, standardized tubing preparation solution.

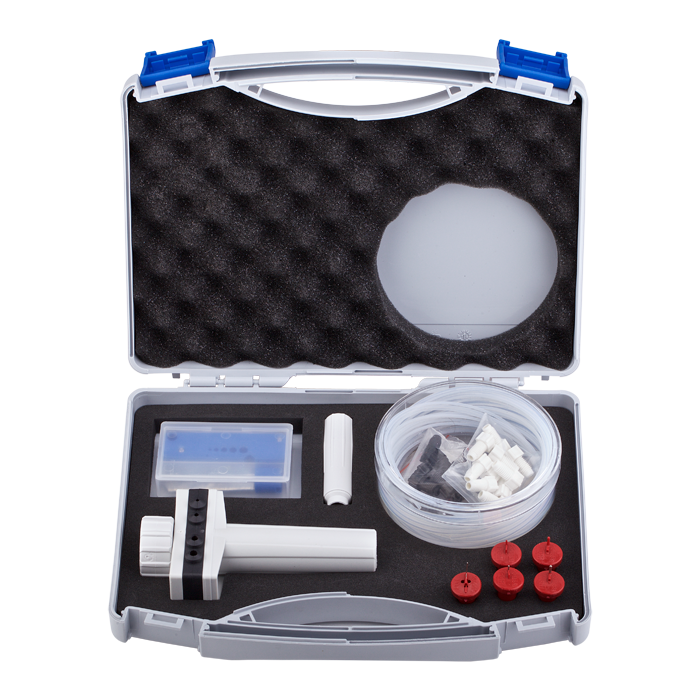

Included Components

• Flanging Tool (“Flangy the Tool”)

• (5) Flanging Drills (Discs with Pins)

• Clean‑Cut Tubing Cutter

• PTFE Tubing Sample (1/16" ID × 0.75" OD, ~6 feet)

• Selection of Tubing Connectors (nuts with PP rings)

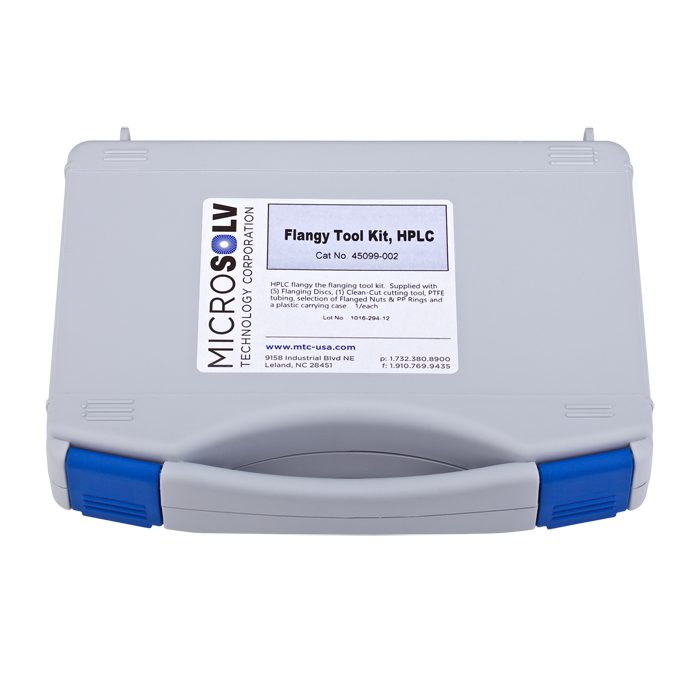

• Durable plastic carrying case

Included Flanging Drills

• PEEK Tubing Drill – 0.5 mm Stainless Steel Pin (45099‑105‑005)

• Polymer Tubing Drill – 0.8 mm Plastic Pin (45099‑108‑005)

• Polymer Tubing Drill – 0.8 mm Titanium Pin (45099‑308‑005)

• Polymer Tubing Drill – 1.3 mm Plastic Pin (45099‑113‑005)

• Polymer Tubing Drill – 1.3 mm Titanium Pin (45099‑313‑005)

Compatible Materials

Designed for soft to semi‑hard, low‑pressure polymer tubing, including:

• PTFE

• FEP

• PE (Polyethylene)

• ETFE

• PP (Polypropylene)

• Tefzel®

Why Choose the Expanded Flanging Tool Kit?

This version of the kit is ideal when both tubing preparation and connection assembly are required:

• Enables a full workflow: cut → flange → connect

• Includes connectors for immediate installation

• Reduces the need for separate fittings and accessories

• Improves consistency across lab setups

Why Use Cold‑Flanging for Polymer Tubing?

Cold‑forming provides key advantages over heat‑based flaring:

• Longer‑lasting flanges with improved durability

• More consistent geometry and sealing surfaces

• Reduced risk of warping or deformation

• Improved connection reliability and leak prevention

Key Features

Complete Tubing Preparation System

• Includes flanging tool, cutter, tubing, and connectors

• Ready‑to‑use solution for lab setup and maintenance

• Eliminates need for multiple tools or kits

• Operating Instructions

Cold‑Forming Flange Technology

• Mechanical flaring without heat

• Produces stable, durable tubing flanges

• Improves longevity and connection reliability

Multi‑Material Compatibility

• Suitable for a wide range of polymer tubing materials

• Supports diverse chromatography applications

Precision Flanging Control

• Multiple drill sizes and pin materials

• Ensures consistent flange geometry and performance

Organized and Portable Kit

• Supplied with plastic carrying case

• Keeps components organized and protected

• Ideal for lab benches and service environments

Typical Applications

• Polymer tubing flaring and preparation

• HPLC and low‑pressure chromatography setup

• Tubing connection assembly and repair

• Maintenance of fluidic systems

• Laboratory standardization of tubing workflows
